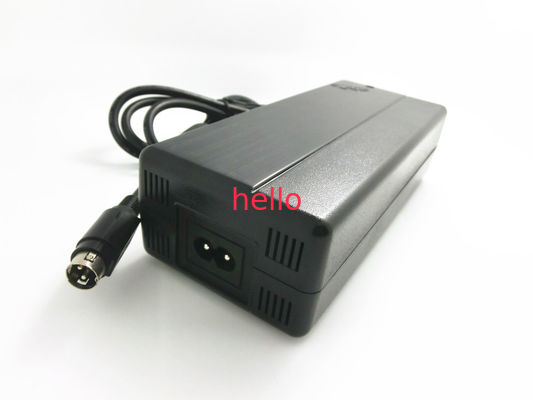

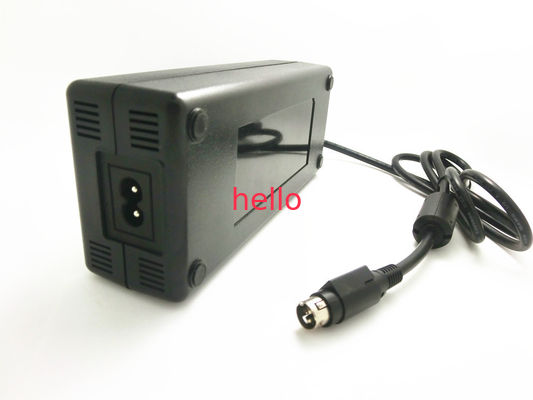

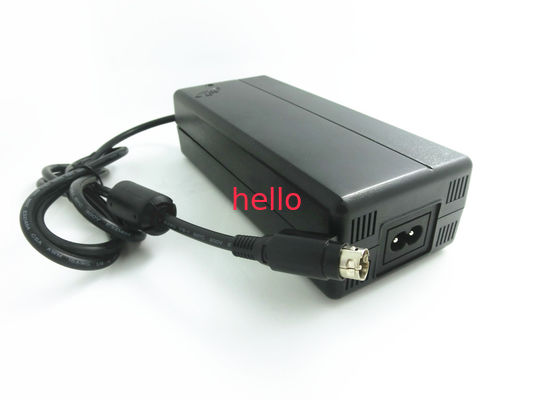

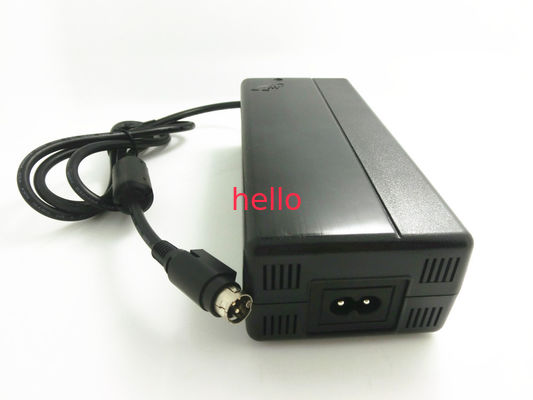

150W Output Universal DC Power Adapter with PFC for LED Display / Governor Motor
Quick details:
Description:
1. Surface cosiness,small size and convenient carrying
2. Low cost,high reliability and all cases are covered by ultrasonic
3. Built-in OVP,OCP and SCP
4. Universal input voltage:
5. O/P:
6. Operation model: CV
7. Environment:
8. Cooling:Natural cooling
9. Energy standard:CEC/ERP
10. Safety standard:IEC/EN60950
11. Insulation: hi-pot, 3,000V AC 60S 10mA
12. Leakage current: 0.25mA (maximum)
13. MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours
14. RoHS compliant
Warranty: |
1 year |
Certification: |
UL/CUL, PSE, TUV/GS,CE, CCC, SAA and ROHS |
Usage: |
CCTV cameras, LCD monitors, Tablet PC and LED lights |
Packaging: |
PE bag+ white box 50 pcs/carton |
Place of Origin: |
China |
Brand Name: |
WT |
Model Numeber |
WT2406250 |
MOQ |
500 pcs |
Delivery Time: |
15 Days |
Payment Terms: |
T/T(30% in advance, 70% the balance must be paid before the delivery) |
Supply Ability: |
6000 PCS/Day |
Our Advantages:
Some Using Details:
60w Universal AC DC Power Adapter 12v 24v Desktop for Electric Device CE UL
Specification
Item | Switching AC-DC power supply |
Input Voltage | 90-260Vac @ 47-63Hz |
Input Current | 0.3A @ 120VAC , 0.2A @ 240VAC |
Inrush Crrent | <30A Peak @ 120VAC; <60A Peak @ 230Va |
Output voltage | 12V 5A |
AC Connector | Wall mount type, 2 or 3 pins plug (EU/AU/US/CN/UK ect) |
Efficiency | 3% |
Output Ripple | 1% Max |
Efficiency | ≥80% |
Response Time | <1ns |
Combined Load Regualtion | ±3% |
Combined Line Regualtion | ±5% |
LED indicator | Power on, Green |
Operating Temp | 0 to 40℃ (32 to 104℉) |
Storage Temp | (-)20 to 85 ℃ ( -22 to 158 ℉) |
Operating Humidity | 10~ 90% Non condensing |
Storage Humidity | 5~90% Non-condensing |
Package | Inner white box + Outer box |
Warranty | 1 year |
Approval | CE/ROHS/FCC approval |
Shipment Terms | By sea or By Air or By express (DHL/TNT/FEDEX/UPS ext) |
Payment Terms | T/T in advance |
Sample Terms | 2 pcs free offered, shipping charge will be paid by the buyer, leadtime within 5days |
Delivery time | 20-25days, from the day got the confirmed order and payment |
AC Plug:
|
(L*W*H) |
|
China Japan America |
70.0*41.0*37.0mm |
Cord or 4PIN USB |
Brazil Korea Germany |
70.0*41.0*47.0mm |
|
Australia |
70.0*41.0*38.0mm |
|
England |
70.0*48.8*37.0mm |
|
(L*W*H) |
|
China Japan America |
70.0*41.0*37.0mm |
Cord or USB |
Brazil Korea Germany |
70.0*41.0*47.0mm |
|
Australia |
70.0*41.0*38.0mm |
|
England/Euro |
70.0*48.8*37.0mm |
Description:
1. input voltage range of AC90-264V. wide voltage input, comply with the global standard.
2. input voltage frequency: 47-63Hz
3. output voltage: according to customer requirements
4. output voltage adjustable rate: 1%
5. rated output current can be customized
6. current output range 0-5A
7. output Ripple & noise less than 100mVp-p. DC ripple small, high efficiency,low temperature,
long service life,
8. the working efficiency low power design of 78-86%. no-load power consumption is less than 0.3W
9. output short circuit protection. The built-in over current, over voltage protection(auto recovery)
10. working temperature 0 °C ~+50 °C
11. storage temperature -20 °C ~+85 °C
Applications:
It’s suitable for an extremely wide range of applications, including:Using for mobile/electronic manometer/
digital cameras/electronic blood pressure monitor /AV/small appliance etc.
Communications and security products;LED lamp / LED Light, LCD display. security systems, instrumentation, medical equipment, audio-visual products, digital products, LED lighting, electric cars and other
products
Competitive Advantage:
1. With high efficiency, low loss, environmental protection circuit design; with over voltage protection,
overload protection;
2. Products beautiful, high-temperature flame-retardant shell by ultrasonic welding, safety and reliability;
3. Output interference is very small, the output voltage stability, better able to extend the life of an
external electric;
12VDC Constant Voltage LED Driver 60W AC 170 - 260V LED Lighting Built - in EMI filter
Description:
1. Protections :Short circuit/Overload/Over temperature
2. Cooling by free air convection
3. IP67 design for indoor or outdoor installations
4. 100% full load burn-in test
5. Suitable for LED lighting
6. Products through CE& ROHS certification
7. Two years warranty
Features
1.IP67
2.High Efficiency and good price
3.Built-in EMI filter
4.100% full load burn-in test
5.Low output ripple and noise
6.Protection:Over load/Over voltage/Short circuit
7.lifetime warranty
Specification:
MODEL |
|
12V60W |
24V60W |
|
OUTPUT |
DC VOLTAGE |
12V |
24V |
|
RATED CURRENT |
5A |
2.5A |
||
CURRENT RANGE |
0~5A |
0~2.5A |
||
RATED POWER |
60W |
60W |
||
RIPPLE&NOISE(max.)note2 |
150mV |
200mV |
||
VOLTAGE TOLERANCE note3 |
±2% |
±1.4% |
||
INPUT |
SETUP,RISE TIME |
80ms/220VAC |
||
HOLD UP TIME(Typ.) |
60ms/220VAC |
|||
VOLTAGE RANGE |
170~250VAC |
|||
FREQUENCY RANGE |
50~60Hz |
|||
POWER FACTOR(Typ.) |
PF>0.55/220VAC |
|||
EFFICIENCY(Typ.) |
83% |
86% |
||
AC CURRENT(Typ.) |
0.62A/220VAC |
|||
INRUSH CURRENT(Typ.) |
COLD START 50A/220VAC |
|||
PROTECTION |
SHORT CIRCUIT |
Protection type: recovers automatically after fault condition is removed |
||
OVERLOAD |
overload protected@115-140%above peak rating |
|||
OVER TEMPERATURE |
Protection type:Shut down o/p voltage ,re-power on to recover |
|||
ENVIRONMENT |
WORKING TEMP |
~30~+50℃ (refer to output load derating curve) |
||
WORKING HUMIDITY |
20~99% RH non-condensing (waterproof) |
|||
STORAGE TEMP,HUMIDITY |
~40~+80℃, 10~99% RH |
|||
SAFETY&EMC |
SAFETY STANDARDS |
CE Mark (LVD) ,IP67 |
||
WITHSTAND VOLTAGE |
I/P-O/P: 1.5KVAC I/P-GND: 1.5KVAC |
|||
EMC TEST& STANDARDS |
EN55015:2006; EN61547:1995+A1:2000; EN61000-3-2:2006; EN61347-2-13:2006 |
|||
NOTE |
1. All parameters NOT specially mentioned are measured at 220VAC input, rated load and 25℃ of ambient temperature terminated with a 0.1uf & 10uf parallel capacitor |
Application:
it can be used for LED strip.LED guardral tubeLED modules,LED point lighting source,LED luminous characters,LED lighting,LED display,light Fixtur and so on
Competitive Advantage:
• IP67 protection grade
• 100% load test, built-in EMI filters
• Full range of input voltage
• output voltage accurate and stable
• Output over-voltage, over-current and short-circuit protection
• Output low ripple and noise
• Two year warranty
• Average working no trouble >50, 000 hours
Our Servise
1. Our trade manager is online 24hours .and we will reply your inquiry within 5 hours.
2. Our warranty 3 years
3. If product quality problems occur within the warranty period, free replacement of the same type of product or repaired bad product.
4. 100% Burn in test for 12 hours before shipping.
Ac-Dc DC12V/24V IP67 Constant Voltage LED Driver 60W IP67 for LED Lighting
PE60S analog Matrix system , Pearmain full cross point large matrix switch with dual CPU and power supply , 1536x256 (12 chassis total)
Quick Detail:
● Microprocessor-Based, Full Cross-Point Video Matrix.
● Modularization Design, 12 chassis make up 1536ch input and 256ch output matrix system.
● ● Control Up To 50,000 Cameras And 512 Monitors On Base Of System Extension.
● System Diagnostic Leds Displayed On Front Panel.
● Logical Camera Selection And Priority Level Operation & Configuration In Matrix Software
● Built-In Video Loss Detection
● Windows-Based System Management Software, Includes Multilingual Menus And On-Screen Help
● Factory Tested Prepackaged System Configuration And Quick-Guide Manual.
● Including ASCII Data, DVR, PTZ, Network, Etc. Protocol
● Powerful Macro Programming
● CE, FCC, ROHS,UL compliant
Description:
PE60S is large full-cross point Modular Matrix switcher/controller system, one matrix bay can have up to 512ch video input & 64ch video output, can extend to 65535ch input, Dual CPU & Dual Power supply for Plug & play and seamless switching.
Redundant Dual CPU & Dual power supply unit for double guarantee.
Configuration software to set all parameter of matrix.
Specifications:
Communication |
||
Communication |
RS-422, RS-485, RS-232, TCP/IP |
|
Baud rate |
19200 bits/s, 9600 bits/s, 4800 bits/s, 2400 bits/s etc. |
|
Interface |
RS-422 RJ45 connector ( full duplex ) RS-232 RJ45 connector RS-485 3-pin 3.81 connector(semi-duplex) |
|
System configuration |
||
System User |
255 |
|
System capacity |
Main matrix bay: 512ch inputs/ 64ch outputs Maximum input: 608ch inputs / 8ch outputs Maximum after extension: 50000ch outputs / 512ch outputs Logic encoding value: 999999 inputs / 2048outputs |
|
Alarm capacity |
50000 |
|
On-screen display |
Camera title: 32 english character Full screen: 16 lines, 42 row english character |
|
Character |
Chinese/ English / Latin / Cyrillic |
|
Power-off memory time |
10 year |
|
Video |
||
Video input |
1Vp-p/75Ω Composite signal |
|
Video output |
1Vp-p/75Ω Composite signal |
|
Signal to noise ratio |
>60dB ( unweighted ) >70dB ( weighted ) |
|
Channel bandwidth |
5Hz~8MHz(1Vp-p with filter) 20MHz(1Vp-p,-3dB without filter) 65MHz(20mVp-p,-3dB without filter) |
|
Insertion gain |
<0.2dB |
|
Differential gain |
<1.0% |
|
Differential phase |
<1.1° |
|
Frequency characteristics |
<1.0dB(5.8MHz) |
|
Adjacent Channel Crosstalk |
<-55dB(PAL: 4.43MHz/NTSC: 3.58MHz) |
|
Adjacent channel isolation |
>50dB(PAL: 4.43MHz/NTSC: 3.58MHz) |
|
Line Time Waveform Distortion |
<1.0% |
|
Typical switching time |
20ms(Typical) |
|
Electrical Characteristics |
||
Power Supply |
100~240VAC 50/60Hz Adaptive |
|
Power consumption |
160W |
|
Mechanical Specifications |
||
Weight |
35KG(Full capacity) |
|
Installation dimension |
484mm(Width)×366.0mm(Depth)×532.6mm(12U) height |
|
Rack |
19’’ EIA standard chassis |
|
Environmental specifications |
||
Operating temperature |
-10~+55℃ |
|
Operating Humidity |
0~90%RH(No condensation) |
|
Applications:
For the surveillance system where there are all analog cameras, the application focus on real time surveillance.
The application including Transportation control center, casino, city surveillance, anti-terrorist, harbor,etc. large scale surveillance system.
300W Switching Mode Power Supply , Low Noise Switch Power Supply
Specifications
1.overcurrent & over voltage protection
2.thermal & short-circuit protection
3.300W
Realan Switch Power LR-FLEX300W
1. INPUT
1.1 VOLTAGE
Min. |
Normal |
Max. |
Unit |
180 |
220 |
260 |
Vac |
90 |
110 |
130 |
Vac |
1.2 FREQUENCY 47-63 Hz
1.3 CURRENT Max. 2.5A /220Vac Max.5A /110Vac
1.4 INRUSH CURRENT 60A/220V at 25°CCOLD START
1.5 EFFICIENCY MIN65%AT FULL LOAD 220Vac 50Hz
2. OUTPUT
2.1 OUTPUT POWER 200W (MAX)
2.2 VOLTAGE
|
+5V |
+12V |
-12V |
+3.3V |
+5Vsb |
MAX LOAD |
10A |
10A |
0.3A |
8A |
2A |
MIN LOAD |
1.5A |
0.3A |
0A |
0A |
0A |
Regulation |
± 5% |
± 5% |
± 10% |
± 5% |
± 5% |
Ripple |
50mV |
120mV |
300mV |
50mV |
50mV |
Noise |
100mV |
240mV |
360mV |
100mV |
100mV |
NOTE:
3. PROTECTION
3.1 OVER LOAD PROTECTION
3.1.1 120-160% of maximum power
3.2 SHORT CIRCUIT PROTECTION
All output to ground
NOTE: After protection active all output will shut down .After shut down the power supply shall return to normal operation. Only after the fault has been removed and the remote signal reset for a minimum 1 second (or the AC removes for 10 second).
4. TIMING SEQUENCE
4.1 TURN ON TIME 900mS MAX
4.2 P.G Delay time 100~500mS
4.3 P.F time 1mS MIN
4.4 Hold up time 15mS MIN
5. TEMPERATURE CHARACTORISTICS
5.1 OPERATION AMBIENT: +10 to +40°C 20~85%
5.2 NON-OPERATION AMBIENT: -40°C to +70°C 10~90%
6. SAFETY REQUIREMENT
6.1 HI-POT TEST Vac =1500 Vac Current limit 10mA
6.2 GROUNDING TEST R<100mOhm Condition I=24Aac
6.3 Isolation test R>2MOhm Condition 400VDC
7. ELECTROMAGNETIC COMPATIBILITY (Optional)
7.1 Meet with the EMI standards
8. Burn-in Full load, 2 Hour
42Watt Desktop Computer AC Adapter 12V 3.5A With Overheat Protection
Competitive Advantages:
1. Professional Mini ITX Case Manufacturer
2. Overcurrent protection, Overvoltage protection, Overheat protection etc.
3. Multi-purpose products
4. OEM/ODM Services
Quick Look Specification: (For more details, please see below)
Model: | LR120035 (12V 3.5A) |
Type: | ITX Power, DC-ITX Power Adapter, LCD, LED Display Adapter and Laptop Adapter |
Parameter: | 1, Standard round mouth output interface: 2.5mm inner diameters, 5.5mm |
Why Realan:
We are a very professional manufacturer for mini computer cases and power supplies, with the rich experience for over 10 years of developing and producing pc cases. Determination achieves quality, Realan is always keeping the production philosophy that doing by heart, win to win, providing the higher products value cooperation. And our products have been exported to East Asia, Southeast Asia, Middle East, North America, South America, Europe, Africa, Australia and other countries.
Please don't hesitate to contact us if you have any questions or concerns before or after your purchase. We are committed to your 100% satisfaction.
Detailed Specification:
Voltage | Min. Load | Rated. Load | Stand by power | Output power |
12Vdc | 0.01A | 3.5A | 0.5W Max | 42W |
Voltage | Min. Load | Rated. Load | Line Regulation | Load Regulation |
12Vdc | 0.01A | 3.5A | ±1% | ±5% |
Contact Person: Mr. li
Tel: 56966398
Fax: 86-20-5696-5696
Address: 4th Floor, No. 174, Binjiang Xi Road, Haizhu District, shenzhen,Guangdong,China(Mainland)
Factory Address:4th Floor, No. 174, Binjiang Xi Road, Haizhu District, shenzhen,Guangdong,China(Mainland)
