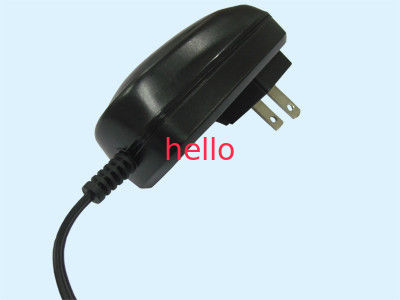

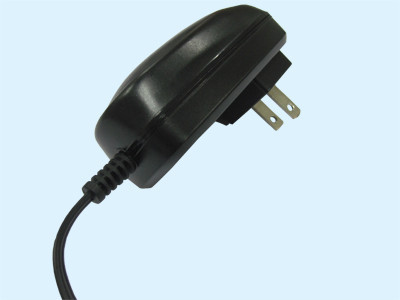

12V2A Wall Mount Power Adapter For Monitor System , US plug 50Hz / 60Hz

12V2A Wall Mount Power Adapter For Monitor System , US plug 50Hz / 60Hz

  • 12V2A Wall Mount Power Adapter For Monitor System , US plug 50Hz / 60Hz
12V2A Wall Mount Power Adapter For Monitor System , US plug 50Hz / 60Hz
Product Details:
Place of Origin: China
Brand Name: HIC
Certification: ISO
Model Number: P120W2000U
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: According to customer’s requirment
Delivery Time: 7-15days
Payment Terms: L/C T/T,Paypal
Contact Now
Detailed Product Description
High Light:

cell phone power adapter

,

portable power adapter

12V2A Wall Mount Power Adapter For Monitor System , US plug 50Hz / 60Hz



Feature:


. Input Voltage Range : 90 ~ 264 Vac
. Long Life Time

. 2 US Pin

. No load consumption < 0.3W
. Protections: Overload , Short Circuit , Over Voltage
. Guarantees : 2 years


Description :



US plug 12V2A Wall Mount Power Adapter For Monitor System

Electronics Specification :

Input Voltage Range:

90~264Vac

AC current:

0.3A

Frequency:

50/60Hz

Inrush Current:

30A/230Vac

Leakage Current:

0.25mA/240Vac

Output Voltage:

12.0Vdc

Output Voltage Range :

11.40 ~ 12.60 Vdc

Output Current :

2000mA

Efficiency :

> 80%

Ripple and Noise :

< 100mVp-p

Line regulation:

±1%

Load regulation:

±5%

Efficiency:

Meet energy star level V

Over current protection:

Hiccup mode, Auto recovery

Over voltage protection:

Power shutdown, Auto recover

Environment :

Working Temp.:

0~40℃

Working Humidity:

20%~90% RH non-condensing

Storage Temp. & Humidity:

-20℃~85℃, 10%~95% RH

Reliability :

Hi-Pot Testing Voltage :

I/P to O/P : 3.0 (60Sec.) KVac

Safety Standard :

EN60950

EMI Standard :

EN55022B

Safety Approval :

Certificate

UL , CB , CE , FCC , C-TICK

Mechanical Characteristics :

Size:

90mm * 50mm * 35mm (L*W*H)

AC connector

SAA plug

DC Cable:

1.8M

DC connector:

5.5*2.1*12mm, other type connector avaible



Applications :

widely used in household appliances, IT digital products,  medical equipments, communication equipments, instrumentations, bank data equipment, computer peripheral products, security monitoring system, industrial and light field equipment and other products.
