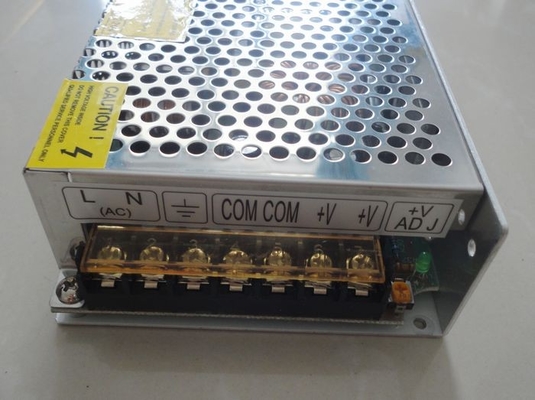

12v DC 60W switching Full range Led Driver Power Supply Transformer

12v DC 60W switching Full range Led Driver Power Supply Transformer

  • 12v DC 60W switching Full range Led Driver Power Supply Transformer
12v DC 60W switching Full range Led Driver Power Supply Transformer
Product Details:
Place of Origin: China Mainland
Brand Name: Sunled
Certification: CE,ROHS
Model Number: SL-150W-12V
Payment & Shipping Terms:
Minimum Order Quantity: 50 pcs
Delivery Time: 7-10days(depend on quantity)
Payment Terms: TT/30% deposit, balance will be payed off before sending out/PAYPAL/WESTEN UNION
Supply Ability: 5000-10000m/day
Contact Now
Detailed Product Description
High Light:

led 12v power supply

,

dimmable led power supply

12v DC 60W switching Full range Led Driver Power Supply Transformer



Specifications:

1.60W switching power supply

2. Current : 12.5A

3.output  12v

4.ac input range selected by switch
5.high efficiency, high reliability, low cost
6.low ripple noise

7.Size: 199*99*42mm



Applications:



1. OUTPUT:

VOLTAGE RANGE………85-265V

SETUP,  RISE,  HOLD TIME………500ms,  20ms,  100ms/230VAC, 500ms, 30ms, 18ms/115VACat full load



2. INPUT:

VOLTAGE RANGE………88 ~ 264VAC / 125 ~ 373VDC

FREQUENCY RANGE………47 ~ 63Hz

EFFICIENCY (Typ.)………74%  77% 81% 82% 84% 84%

INRUSH CURRENT (Typ.)………COLD START 40A/230VAC

LEAKAGE CURRENT………<2mA / 240VAC



3. PROTECTION:

OVERLOAD………110 ~ 150% rated output power

Protection type………Hiccup mode,  recovers automatically after fault condition is removed

OVER VOLTAGE………115%~135% rated output voltage

Protection type………Hiccup mode,  recovers automatically after fault condition is removed



4. ENVIRONMENT:

WORKING TEMP.………1050

WORKING HUMIDITY………20 ~ 90% RH non-condensing

STORAGE TEMP.,  HUMIDITY………-40 ~ +85ºC,  10 ~ 95% RH

TEMP. COEFFICIENT………±0.03%/ºC (0 ~ 50ºC)

VIBRATION………10 ~ 500Hz,  5G 10min./1cycle,  period for 60min. each along X,  Y,  Z axes



5. SAFETY & EMC:

SAFETY STANDARDS………Design refer to UL60950-1,  TUV EN60950-1

WITHSTAND VOLTAGE……… I/P-O/P: 3KVAC I/P-FG: 1.5KVAC O/P-FG: 0.5KVAC

ISOLATION RESISTANCE……… I/P-O/P,  I/P-FG,  O/P-FG: 100M Ohms/500VDC

EMI CONDUCTION & RADIATION………Compliance to EN55022 (CISPR22) Class B

HARMONIC CURRENT……… Compliance to EN61000-3-2, -3

EMS IMMUNITY……… Compliance to EN61000-4-2,  3,  4,  5,  6,  8,  11; ENV50204,  EN61000-6-2 (EN50082-2) heavy industry level,  criteria A


Feature:

· Universal AC input / Full range

· Protections: Short circuit / Overload / Over voltage

· Cooling by free air convection

· LED indicator for power on

· 100% full load burn-in test

· All using 105ºC long life electrolytic capacitors

· Withstand 300VAC surge input for 5 second

· High operating temperature up to 70ºC

· Withstand 5G vibration test

· High efficiency,  long life and high reliability
