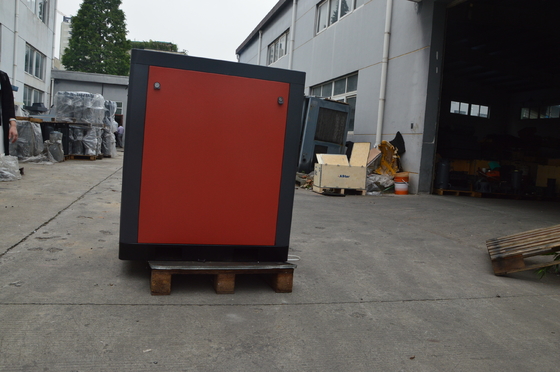

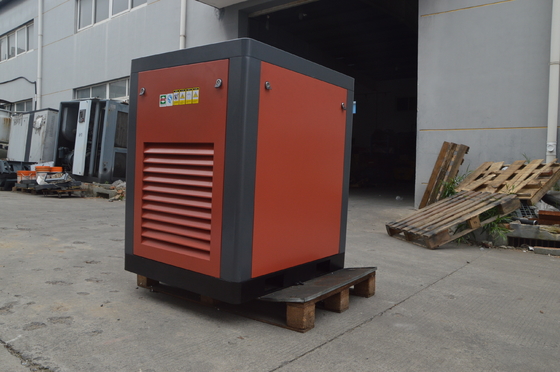

22KW 30HP Variable Speed Air Compressor AC Power 380V Three Phase 50Hz

22KW 30HP Variable Speed Air Compressor AC Power 380V Three Phase 50Hz

  • 22KW 30HP Variable Speed Air Compressor AC Power 380V Three Phase 50Hz
  • 22KW 30HP Variable Speed Air Compressor AC Power 380V Three Phase 50Hz
  • 22KW 30HP Variable Speed Air Compressor AC Power 380V Three Phase 50Hz
  • 22KW 30HP Variable Speed Air Compressor AC Power 380V Three Phase 50Hz
  • 22KW 30HP Variable Speed Air Compressor AC Power 380V Three Phase 50Hz
22KW 30HP Variable Speed Air Compressor AC Power 380V Three Phase 50Hz
Product Details:
Place of Origin: China
Brand Name: OSG
Certification: CE/ISO/SGS
Model Number: EV-22A
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Price: negotiation
Packaging Details: Standard packing or Wooden Box According to Your Request
Delivery Time: 10-15 working days after received your payment
Payment Terms: T/T or LC
Supply Ability: 10pcs per day
Contact Now
Detailed Product Description
Product Name: 22KW Variable Frequency Air Compressor Application: Textile, Medical, Pharmaceutical Materials, Power, Electronic, Spraying, Tobacco, Instruments, Food Processing, Feed Processing, Machinery Processing, Etc
Dimension: 1290*900*1190mm Power: 380V/3Phase/50Hz
Standard: CE/ISO/SGS Exhaust Temperature: ≤ Ambient Temperature +8℃
Intake Air Temperature: ≤ 40℃ Noise: ≤ 70±2
Oil Content: ≈1 Ppm Weight: 500kgs
Diameter Of Outlet: 1”
High Light:

air compressor machine

,

lubricated air compressor

22KW 30HP Variable Speed Air Compressor AC Power 380V Three Phase 50Hz





Product Description



1: Variable frequency conception



OSG variable frequency series screw compressor takes advantage of the step-less speed regulation characteristics of the frequency changer, and start screw air compressor gently through the PID adjust-or of the internal controller to improves the motor's start and operation mode.



2: Prediction and evaluation of energy saving



It is necessary to use air compressor frequency changer to the control method of air compressor, to achieve the effect of saving energy in a certain range.



3: Steady pressure



The air compressor frequency changer aims at a larger air volume fluctuations occasions. Internal PID regulator can quickly adjust response. Compared with the limit switch control of frequency

operation, air pressure output stability increases exponentially, keeping on a constant point.



4: Start with no impact



For the soft start function of the frequency changer, the start electricity is 3 times less than the frequency start. Small start impact.


5: Variable flow control



Based on the PID regular and the actual air usage volume to adjust the motor speed at a real time, the frequency changer controls the emission output and achieves a balance of gas supply. Under low

volume, the air compressor will sleep automatically to reduce the energy loss. The optimal removal can further improve the energy-saving effect.


6: Better voltage adaptability of AC power supply



Due to the over modulation technique used in frequency changer, it still output enough torque while in low AC power supply voltage, motor keeps working; it will not lead to a higher voltage output to motor even

under the high voltage.


7: Variable frequency components



Frequency changer advantages



1. Motor starts smoothly, little impact on the power grid, small damage on motor itself.



2. Reduce the motor working voltage and realize the energy-saving effect under small gas consumption by reducing the operating frequency.



3. Reach the balance quickly by increasing or decreasing the operating frequency. Under large consumption, air compressor can achieve maximum rated discharge capacity; if small, it can reduce exhaust emission that is still enough for users.



Model:EV-22A

Power(KW)

22KW

Horse(HP)

30 HP

Pressure

Bar

Psi

7

100

8

115

10

145

13

188

F.A.D

m³/min

L/min

CFM

3.7

3700

130

3.5

3500

123

3.1

3100

109

2.6

2600

92

Exhaust temperature

≤Ambient temperature +8°C

Intake air temperature

≤ 40 degree centigrade

Noise dB(A)

≤ 70±2

Oil content (ppm)

≈1

Power V/pb/Hz

380/3/50

Long(m) × Wide(mm) × High(mm)

1200×900×1190

Weight (kg)

600

Diameter of outlet

1"





1: Professional service



After sale service is always one of the most concerned question, and after sale service in time is the key.

We have Professional after sale service engineers and complete spare parts. The following branches

serve every customer to provide timely and professional service and technical training.





2: Adequate supply of resources



Use OSG genuine spare parts and consumables is the basic

guarantee for air compressor running long. We have the normal and

efficient operation, also plenty of spare parts and consumables

reserve, ready to meet the needs of customers.





3: Application field



spraying, tobacco, instruments, food processing, feed processing, machinery

processing, etc.





4: Product quality guarantee



1: High quality products are the core foundation of business operation.

2: Any product from raw material purchasing, outsourcing parts processing to the process after the

performance and operation of strict tests ensure the machines of high quality.





5: Why we choose Honest?



European owned enterprise excellent technology and credit,trustworthy products

Large European exhaust airend,ensure the efficiency,economy and durability of the machine.

Patent oil-gas separation system that oil content ≤3ppm.it is imported from Europe.

Design of frame-less box structure is unique,let your installation,,maintenance and repair work truly barrier

 free.Centrifugal super exhaust system is especially suitable for high temperature environment of China.

Intelligent control system is true,do what you want,Each product reflects the design idea of “reliable ,

energy saving,environmental protection,convenient”



6: Competitive Advantage:


1: Prediction and evaluation of energy saving

2: Steady pressure.

3: Start with no impact

4: Variable flow control
