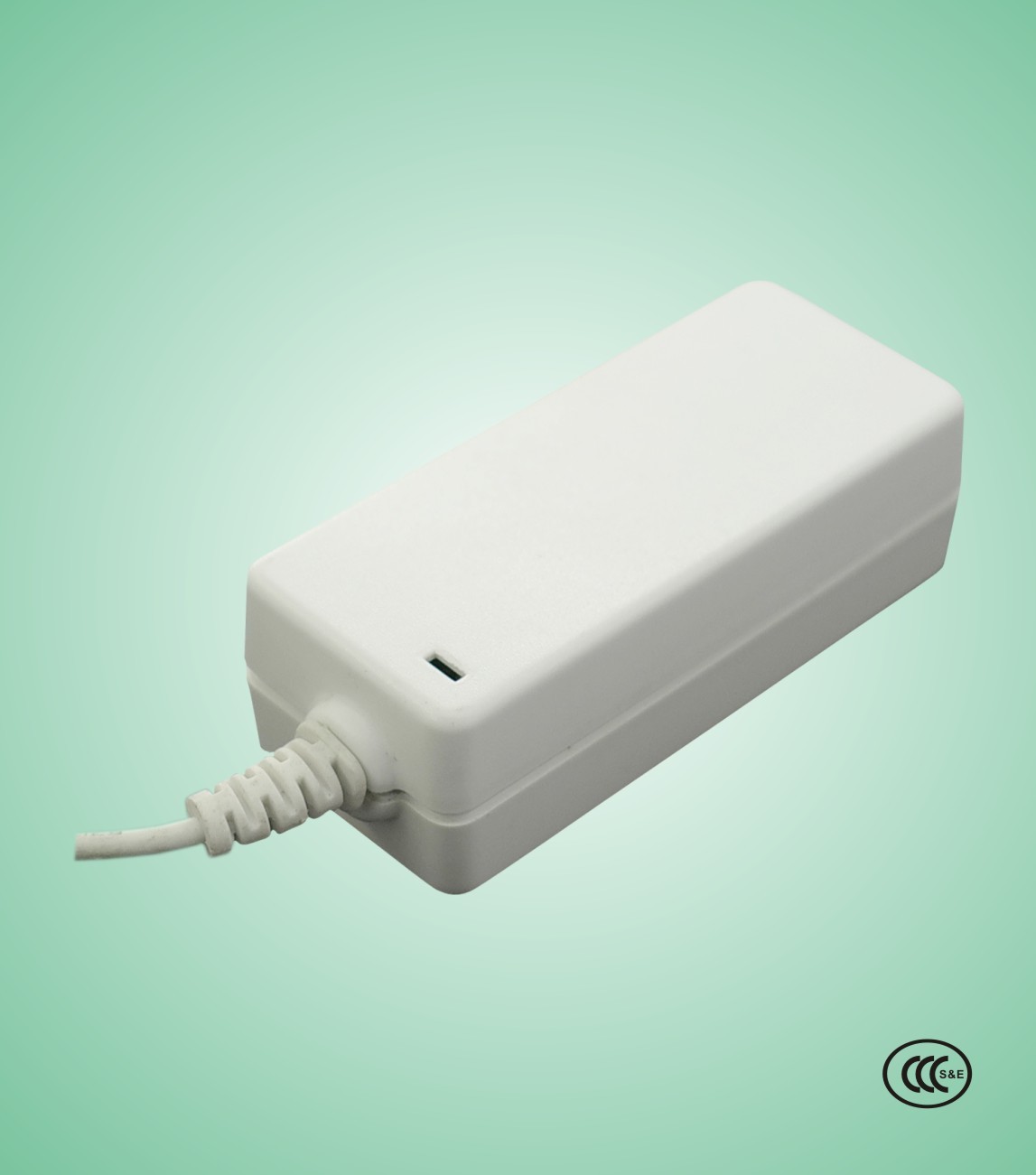

36W 12V, 230V 0.25 mA - 60A Laptop / Set-top-box / ADSL Desttop Switching Adapter Power

36W 12V, 230V 0.25 mA - 60A Laptop / Set-top-box / ADSL Desttop Switching Adapter Power

  • 36W 12V, 230V 0.25 mA - 60A Laptop / Set-top-box / ADSL Desttop Switching Adapter Power
  • 36W 12V, 230V 0.25 mA - 60A Laptop / Set-top-box / ADSL Desttop Switching Adapter Power
36W 12V, 230V 0.25 mA - 60A Laptop / Set-top-box / ADSL Desttop Switching Adapter Power
Product Details:
Place of Origin: China
Brand Name: HIC
Certification: ISO
Model Number: KSAU036120YYYYM2
Output Type: DC
Usage: Laptop
Connection: Desktop
FOB: Shenzhen HK
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: According to customer’s requirment
Delivery Time: 7-15days
Payment Terms: L/C T/T,Paypal
Contact Now
Detailed Product Description
High Light:

Desktop Power Supply

,

Computer Switching Power Supply

Key features of KSAU036120YYYYM2

●EN60950 ITE Safety Approvals

●Ambient Temp Range(0℃ to 40℃)

●ESD:air discharging ±8 KV, contact discharging ±4 KV

●EMI level B

●12V, 3000mA  output

 Key Applications of KSAU036120YYYYM2

It’s suitable for an extremely wide range of applications, including:

●General I.T.E Use

●Laptop

●Set-top-box

●ADSL

●Hard disk drive

●Audio & Video product

●Household appliance

Input

●Input Voltage:      90 to 264 VAC

●Frequency :         47-50/60-63hz

●Input  current:      0.6A (Max)

●Inrush current :    60A Max. 230VAC at max Load

●Leakage current: 0.25 mA Max

Output

●Over voltage protection

●Over current protection

  at 110-200% of lo and Auto-recovery

●Electronic short circuit protection

●Operatingtemperature 0~40℃Free convection

●Operating humidity 10-90% RH Non Condensing

●Sea level Non-operating temperature -20~80℃

Safety standards

●Information technology equipment

●GB4943

Certificates and approvals

●CCC

EMI Emission

●Radiation Test&Conduction Test:EN 55022

EMS immunity

●ESD   Test:EN 61000-4-2

 ●RS     Test:EN 61000-4-3

●EFT    Test:EN 61000-4-4

●Surge Test:EN 61000-4-5

●CS      Test:EN 61000-4-6

●DIP     Test:EN 61000-4-11

Mechanical SPEC

Dimension L*W*H (mm) : 89*36.5*26.7


Product tables for 36W
