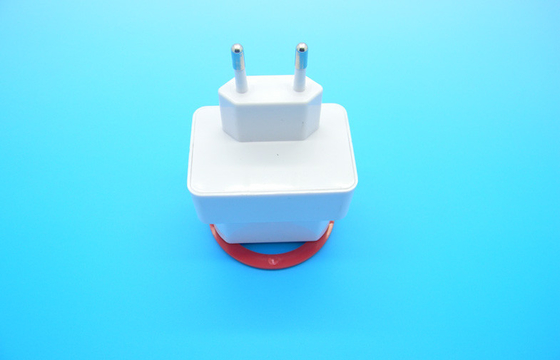

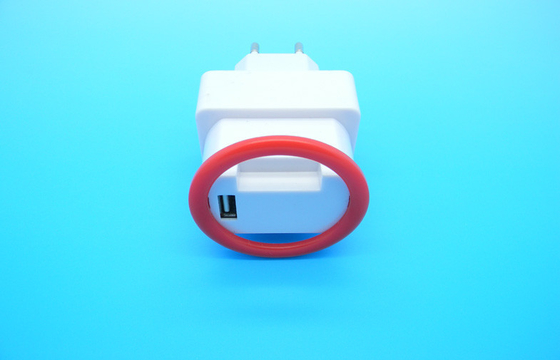

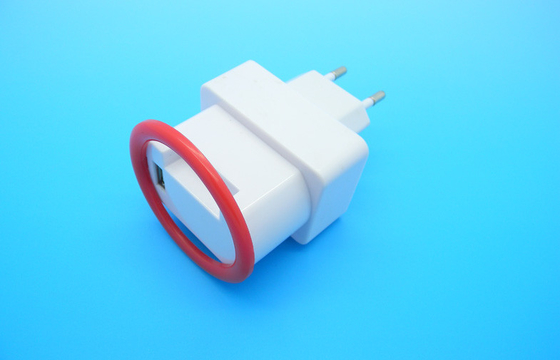

5V 2000mA multifunction mobile phone charger EU Plug for apple/andriod phone
Quick Detail:
-Input Voltage: AC100-240V, 50/60Hz;
-Output Voltage& Current : USB 5V, 2.0A;
-Efficiency: ≥80%;
-Operating temperature: 0 ~ 40°C;
-Storage temperature: - 20°C to 70°C;
-Protection: SCP/OVP/OCP;

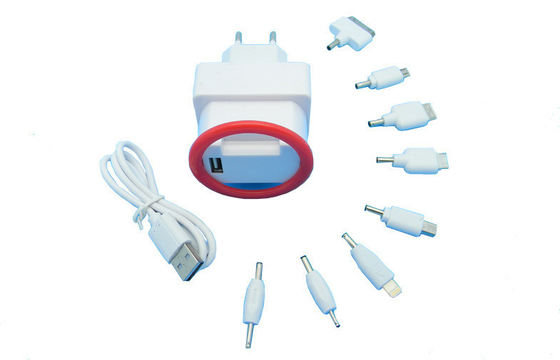

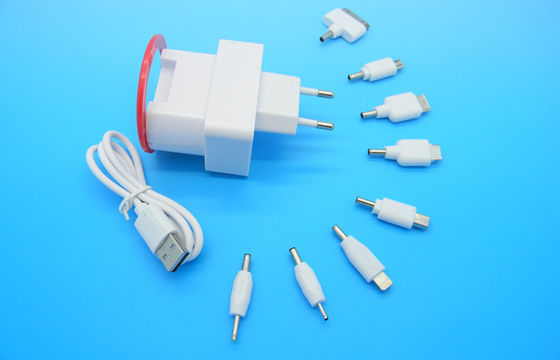

-Cable and different connectors configuration for choice.
-Plug: EU, UK, US,CCC,SAA etc.
-CE and RoHS certified.
-2 Year Warranty.
Description:
USB power adapter, 5V, 2.0A, private model and unique design, customer logo is available.
Applications:
Widely used for all kinds of personal electronics devices such as smartphones, tablet, iPhone 3, iPhone 4g/4s, iPhone 5g/5s, PDA,
Specifications:
|
Input
|
Rated Input Voltage
|
AC100~240V
|
|
Input Voltage Range
|
AC 90~264V
|
|
Rated Frequency
|
50/60 Hz
|
|
Input Frequency Range
|
47~63 Hz
|
|
Input AC Current
|
100mA
|
|
Inrush Current
|
30A
|
|
Output
|
Rated Output Voltage
|
DC5V
|
|
Output Voltage
|
DC5V+/-0.5V
|
|
Rated Output Current
|
2.0A
|
|
Rated Power
|
Max.10W
|
|
Ripple and Noise
|
150mV p-p
|
|
Standby Power Consumption
|
0.3W
|
|
Turn-on
|
5s
|
|
Hold-up
|
20s
|
|
Over Voltage Protection
|
Yes
|
|
Over Current Protection
|
Yes
|
|
Short Circuit Protection
|
Yes, automatically recover after short circuit removed.
|
|
Reliability
|
Hi-pot
|
3000Vac
|
|
Insulation Resistance
|
Input to output at 500Vdc
|
|
Leakage Current
|
5mA
|
|
EMI Standards
|
FCC Part 15B Class B
|
|
RoHS Compliant
|
Yes
|
|
MTBF
|
50,000 hours
|
|
Burn-in
|
40+/-5 ℃, full load, 12 hours
|
|
Drop Test
|
6 direction, each one time from height 1.0M
|
|
Environmental
|
Operating Temperature
|
0~40℃
|
|
Operating Humidity
|
10~80%
|
|
Storage Temperature
|
-20~65℃
|
|
Storage Humidity
|
0~90%
|
|
Safety Approvals
|
CE, RoHS
|
|
Warranty
|
2 Years
|
Competitive Advantage:
-Open private model w/o extra cost for you;
-0.3% backup of order quantity freely;
-Direct factory price without middle man.
-High performance-to-price ratio;
-Perfect after-sale service.
