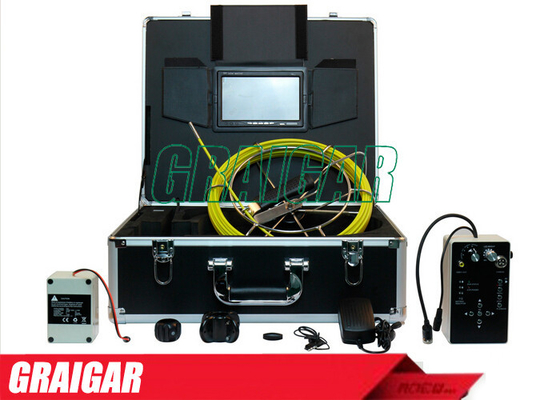

pipe inspection camera systems

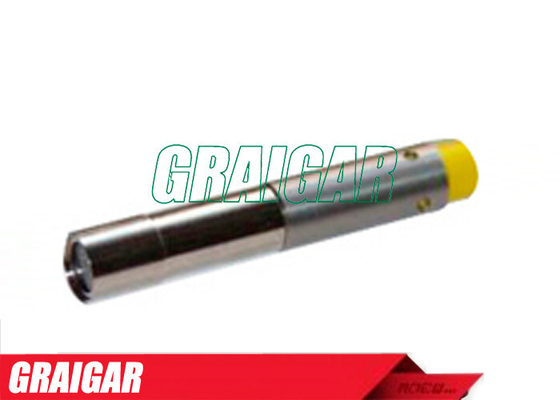

                                                        Camera

1.Pipe Inspection Camera size

6MM(diameter)

2.Camera case material

Stainless Steel

3.Camera lens material

sapphire glass

4.Sensor size

1/12 inch

5.Pixels

PAL:720*576 NTSC:720*480

6.View range

60°C

7.Illumination

4 pcs  bright light LED (adjustable)

8.Waterproof

IP68

9.Camera work current

100MA

10.Camera power supply

DC 3.3V

11.Operating Temperature

-10°C to +50°C

                                              Monitor

1.Monitor size

7inchTFT-LCD color monitor

2. Pixels

1440*234

3. Monitor power supply

DC 12V

4.OSD language

English

5.Up, down left, right adjustable

6.16:9 4:3 model

7.Shock absorber hinges also acts as sun visor

8.Waterproof connector

9.Operating Temperature

-10°C to +50°C

                                          DVR

1.DVR power supply

12V

2.DVR work current

200MA

3.Storage medium

SD card (32G)

4.Digital clock and digital calendar

5.Battery level display

6. Pixels

720*567(D1)

9.Picture sanp and movie record

10.Movie format:AVI

11.Microphone Audio record

12.Stereo earphone output

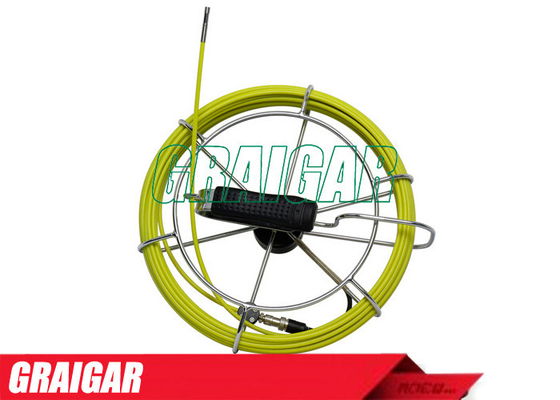

                                       Cable Wheel

1.Cable size

Φ320MMX110MM(H)

2.Wire material

Fiberglass rod

3.Fiberglass length

20M(standard)

4.Fiberglass diameter

Φ4.8MM

5.Fiberglass color:

yellow

                                               Battery

1.Battery

12V 4000MAH rechargeable li –ion battery(18650

2.Used time

7 hours

                                           Charger

1.Input

AC100-240V~50/60Hz

2.Out put

DC 12V/1000MA

3.DC plug diameter

2.1M

                                     SKIDS size

1. SKIDS1:φ12*30MM

                                         Keyboard (Soft or USB for choice)

Soft USB Keyboard

323*130*11MM

USB Keyboard

220*110*15MM

Keyboard interface

USB input

Language

English

Text edit line

PAL 28 letter 15 line  NTSC 26 letter 12line

Max edit page

4 pages

                                         Carry Case

Case Size

480*390*195MM

Case Material

Fire board+Aluminum Alloy

Empty Case weight

3.4KG
