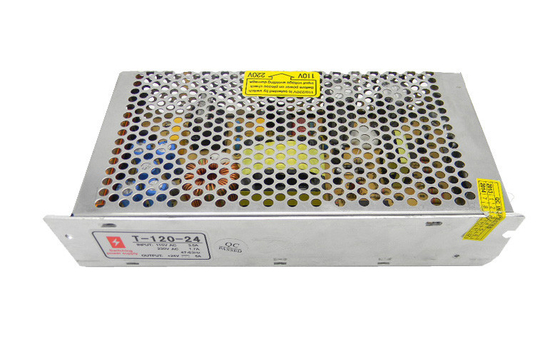

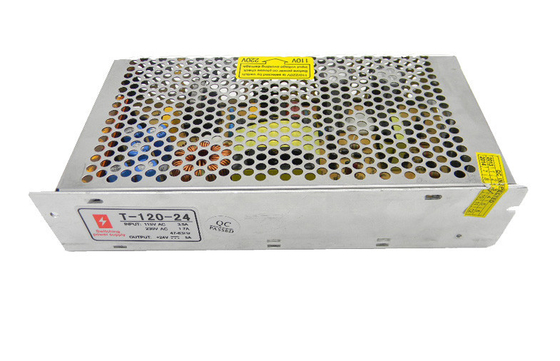

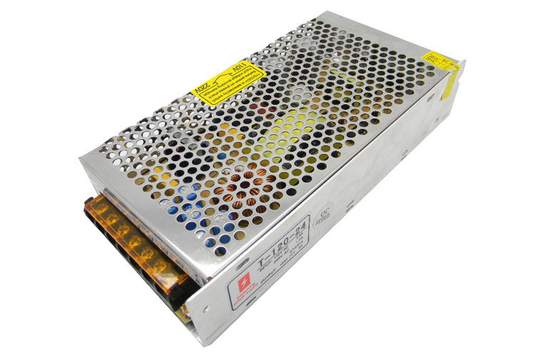

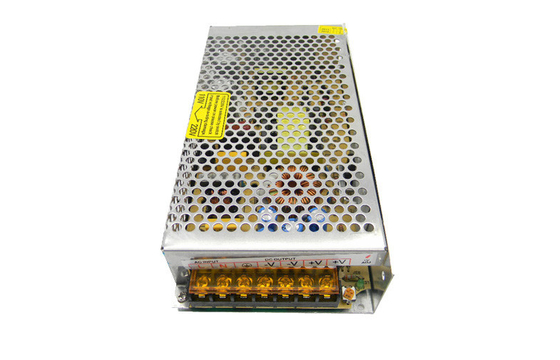

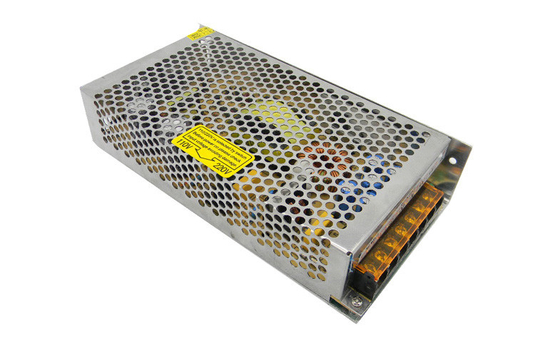

DC 24V 5A Switching Mode Power Supply 120Watt For LCD Display Screen

DC 24V 5A Switching Mode Power Supply 120Watt For LCD Display Screen

  • DC 24V 5A Switching Mode Power Supply 120Watt For LCD Display Screen
  • DC 24V 5A Switching Mode Power Supply 120Watt For LCD Display Screen
DC 24V 5A Switching Mode Power Supply 120Watt For LCD Display Screen
Product Details:
Place of Origin: Shenzhen,China
Brand Name: RAYTOP
Certification: CE, RoHS, FCC
Model Number: RT-MPS-24120
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: White box/Master Carton
Delivery Time: 15-20 working days after receiving deposit
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200,000 Pcs monthly.
Contact Now
Detailed Product Description
Product Name: 24V 5A LED Power Supply Input: 2.4A/115V, 1.2A/230V
Output: 24V 5A Power: 120W
Efficiency: 84% Frequency: 120W
Current Leakage: <1mA/240VAC Protection: Short Circuit, Over Voltage,Over Current
Dimension: 200x95x38mm Material: Metal Case
Weight: 0.65kg/pc
High Light:

Switching Power Adapter

,

switching power supply adapter

Wholesale Factory Price AC/DC Single Output Metal Case Led Switching Power Supply 24V 5A





Descriptions:



Switching power supply, metal enclosure, 120W 24V 5A for LED lights.

Metal cased switching power supply 120W, input voltage 100-240V, 47~63Hz, 24V output voltage, 5 Amp current, in conformity with CE, RoHS, FCC certification. Generally used for LED/LCD display screen, medical equipment, security and protection industry etc.



  • Input: AC100-240V, 2.4A max.
  • Frequency: 47/63Hz
  • Output: DC24V, 5A, 120W
  • High Efficiency:>84%.
  • Inrush Current:Cold start current 30A at 240Vac.
  • W/O input and output cable.

Usage Warning:



1) Indoor use only, do not detach the metal case;

2) The ring shaped net hole is designed for thermal ventilation, please do not play any flammable articles within 50cm distance. Ensure good thermal environment.

3) Please calculate the output power correctly, and make it working under over load circumstance, avoid to touch the case when using.

4) Avoid output short circuit, if no output, please repeat using it after 1 minute shut off.

5) Please make sure correct wire connecting before using the power supply.



Features:



- 100~240VAC worldwide voltage input;

- Small size, light weight and high efficiency;

- Protections: Short circuit protection, over current protection, over voltage protection.

- Natural air cooling;

- 100% hi-pot test, full load;

Approval: CE, RoHS, FCC

- Warranty: 2 years



Applications:



Used for Humidifier, Air Purifier, Electronic Refrigerator, Liquid Crystal Display, LED Light Tool, Sound and Video Equipment, Digital Products.



Specifications:



Input

Rated Input Voltage

AC100~240V

Input Voltage Range

AC 90~264V

Rated Frequency

50/60 Hz

Input Frequency Range

47~63 Hz

Input AC Current

1.0A

Inrush Current

Cold start 120A at100Vac, 60A at 240Vac.

Output

Rated Output Voltage

DC24V±5%

Rated Output Current

5A

Rated Power

120W

Ripple and Noise

130mV p-p

Turn-on

50ms @ full load(typical)

Hold-up

20ms @ full load(typical)

Over Voltage Protection

Yes, 115%--135%

Over Current Protection

Yes, 130%-150%

Short Circuit Protection

Hiccup type, automatically recover after short circuit remove.

Reliability

Hi-pot

1500Vac

Leakage Current

5mA/240VAC

Withstanding Voltage

I/P-O/P,I/P-FG: 1.5KVAC,O/P-FG:0.5KVAC,1 min

Insulation Resistance

Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ

EMI Standards

FCC Part 15B Class B

RoHS Compliant

Yes

MTBF

50,000 hours

Burn-in

40+/-5 ℃, full load, 4 hours

Environmental

Operating Temperature

-10~60℃

Operating Humidity

10~90%

Storage Temperature

-20~85℃

Storage Humidity

0~95%

Safety Approvals

CE, RoHS,FCC

Warranty

2 Years





Competitive Advantage:



- Open private model w/o extra cost for you;

- 0.3% free backup of order quantity;

- Direct factory price without middle man.

- High performance-to-price ratio;

- Perfect after-sale service
