| Place of Origin: | Shenzhen, China |
| Brand Name: | Cayera |
| Certification: | CE, FCC |
| Model Number: | FR-105 |
| Minimum Order Quantity: | 100 |
|---|---|
| Delivery Time: | 1-4 weeks after get the full payment |
| Payment Terms: | T/T 100% before shipment |
| Supply Ability: | 50000 pcs/per year |
| Resolution: | 320×240 | Install Angle Range: | Level Plus Or Minus20°, Vertical Plus Or Minus20° |
|---|---|---|---|
| Maximum User(1:N): | 500 Users | I/O(2 Inputs And 2 Outputs): | Switch Signal Only |
| Wie Gand Input/output: | Support | Dimension: | 180×138×92 Mm |
| Highlight: | time attendance terminal |
||

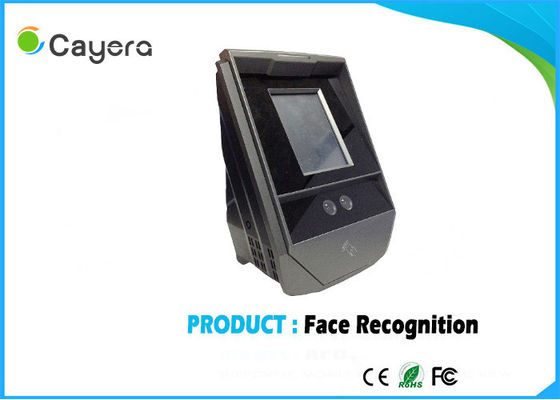

Dual camera Face Recognition biometric access control devices Wall Mounting
Features
Specification
|
Model |
FR-105 |
|
Screen size |
3.5 inch TFT touch color screen |
|
Camera |
Special Dual-camera |
|
Authentication Method |
Face Only, Staff ID + face, EM/Mifare Card + face (card reader optional), EM/Mifare Card Only |
|
Maximum User(1:N) |
500 users |
|
Electrical power |
DC 12V, 2A working current |
|
Install Angle Range |
Level Plus or minus20°, Vertical Plus or minus20° |
|
Working Distance/ Fitting height |
30-80CM/145-195CM |
|
Built-in Card Reader |
( EM/Mifare )optional |
|
Snapshot |
Save user pictures in spite of recognition result |
|
I/O(2 Inputs and 2 Outputs) |
Switch Signal Only |
|
Wie gand input/output |
Support |
|
License Control |
Supported(Built-in security chip) |
|
Function Key |
Up to 10 function key are supported |
|
Indicated Light |
Red (Alarm/Failed), Green (Running) |
|
Language |
English, Chinese(Simplified), Chinese(Traditional) |
|
Working Environment |
Illumination: 0-20000LUX WaterProof Class 3 DustProof Class 6 |
|
Working Humidity |
20%~80% |
|
Working Temperature |
-20~55℃ |
|
Dimension |
180×138×92 mm |
|
Installation |
Wall Mounting |
