Epistar Chip 3014 SMD LED Strip Light , Constant Current LED strip 30000 hours lifespan

Epistar Chip 3014 SMD LED Strip Light , Constant Current LED strip 30000 hours lifespan

  • Epistar Chip 3014 SMD LED Strip Light , Constant Current LED strip 30000 hours lifespan
  • Epistar Chip 3014 SMD LED Strip Light , Constant Current LED strip 30000 hours lifespan
Epistar Chip 3014 SMD LED Strip Light , Constant Current LED strip 30000 hours lifespan
Product Details:
Place of Origin: Shenzhen China
Brand Name: Raymates
Certification: CE ROHS
Model Number: RM-F3014IP20-120P
Payment & Shipping Terms:
Minimum Order Quantity: 10meters
Packaging Details: Individually Packed with Anti-static bag
Delivery Time: 3-5days
Payment Terms: T/T Western Union Paypal Bank Transfer
Supply Ability: 50000 Piece/Pieces / Month
Contact Now
Detailed Product Description
High Light:

warm white led strip

,

Flexibele LED Strip Light

Epistar Chip 3014 SMD LED Strip Light , Constant Current LED strip 30000 hours lifespan



Quick Detail:



  1. DC12V
  2. 3014smd 120leds/m
  3. Constant current strip
  4. 19.2W/M
  5. 11LM-13LM/LED
  6. IP20
  7. CE&RoHS&FCC certification
  8. 3 years warranty





Description:

SMD 3014 LED strip,White pcb , 19.2W per meter, 6leds cutable, 5 meter per roll,IP20,IP65,IP67 is availavle for choose,Energy Saving,Environmental Protective,CE,ROHS,FCC certificate, 3 years warranty.



Details Picture:

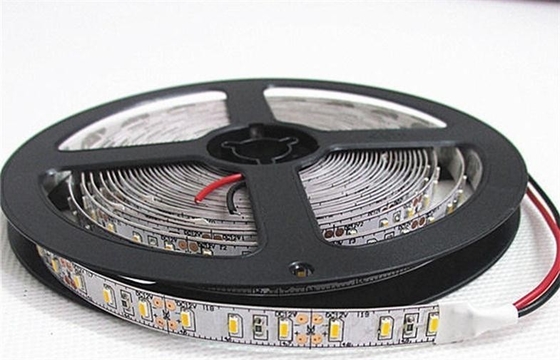

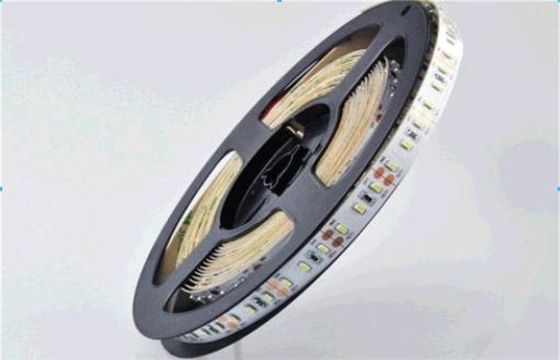

Epistar Chip 3014 SMD LED Strip Light , Constant Current LED strip 30000 hours lifespan 0Epistar Chip 3014 SMD LED Strip Light , Constant Current LED strip 30000 hours lifespan 1





Applications:

Widely used in Architectural light for canopy, corridor, window, archway ,Backlight for edge lighting for signage ,DIY lights for home use ,Path and contour marking ,Decorative lights for holiday, event, show exhibition,Cover lighting and so on.

Specifications:



Tech Date



Model

RM-F3014IP20-120P

LED Qty

120leds/m

LED Type

3014smd

LED Power

12W/M

LED Color

WW/CW

Input Voltage

DC12V

Power Factor

>98

Power Efficiency

>85%

Luminous Efficiency

11lm~13lmLM/LED

Color Temperature

WW

2700-3200K

NW

4000-4500K

CW

6000-6500K

Lamp Efficiency

>85%

Beam Angle

120°

Working Temperature

-40℃ ~ +55℃

Storage Temperature

-25℃ ~ +65℃(25℃best)

Life span

>30000hrs

Certification

CE, RoHS, FCC

IP Grade

IP20

Housing Color

WW/NW/CW

Net Weight

0.2kgs

Dimension

1000*8*0.2mm ( with 3M adhesive at its back)

package

5m/roll in each Anti-static bag



Connection:

Epistar Chip 3014 SMD LED Strip Light , Constant Current LED strip 30000 hours lifespan 2



Competitive Advantage:



  • Health: Won't cause eye fatigue and helps to protect eye health.
  • Safety: Won't do harm to body with no harmful substances such as mercury and lead.
  • Color rendering: LEDs for flexible strip lighting applications have been designed to achieve a warm, white light that ranges >80 on the color rendering index (CRI).
  • Color temperature: From 2700K~6500K, customers can choose according to requirements.
  • High quality: High power factor, constant voltage power supply and constant flux.
  • Installation flexibility: Can be installed in any orientation with no restrictions.

Application scope: Widely used in billboards, highways, railway tunnels, bridges, squares, stadiums, trees, parking lots, building walls, hotel, meeting room, offices , hospital , schools , factories , commercial lighting , shopping malls, supermarkets, kitchen, display, backlight and so on.
