High Efficency AC/DC Wall Mount Power Adapter 2500mA 30W For SATA / ADSL

High Efficency AC/DC Wall Mount Power Adapter 2500mA 30W For SATA / ADSL

  • High Efficency AC/DC Wall Mount Power Adapter 2500mA 30W For SATA / ADSL
  • High Efficency AC/DC Wall Mount Power Adapter 2500mA 30W For SATA / ADSL
  • High Efficency AC/DC Wall Mount Power Adapter 2500mA 30W For SATA / ADSL
  • High Efficency AC/DC Wall Mount Power Adapter 2500mA 30W For SATA / ADSL
  • High Efficency AC/DC Wall Mount Power Adapter 2500mA 30W For SATA / ADSL
High Efficency AC/DC Wall Mount Power Adapter 2500mA 30W For SATA / ADSL
Product Details:
Place of Origin: Shenzhen,China
Brand Name: RAYTOP
Certification: CE, RoHS, FCC
Model Number: RT-MPA03123000A
Payment & Shipping Terms:
Minimum Order Quantity: 100 PCS
Price: Negotiable
Packaging Details: Color box, 200PCS/Carton
Delivery Time: 15-20 working days.
Payment Terms: T/T, L/C, Western Union
Supply Ability: 200,000 Pcs monthly.
Contact Now
Detailed Product Description
Product Name: 3-12V Universal AC/DC Adapter Input: AC100-240V, 50/60Hz, 1.0A
Output: 3.0/4.5/5.0/6.0/9.0/12.0VDC Current: Max. 2500mA
AC Plug: EU,US, UK,SAA,CCC DC Cable: 24AWG, 1.2M
Protection: Short Circuit, Over Voltage,Over Current
High Light:

Wall Mount Power Supply

,

ac to dc power converter

6 DC Tips 2500mA Universal Adjustable Voltage 3-12V AC DC Power Adapter





Descriptions:

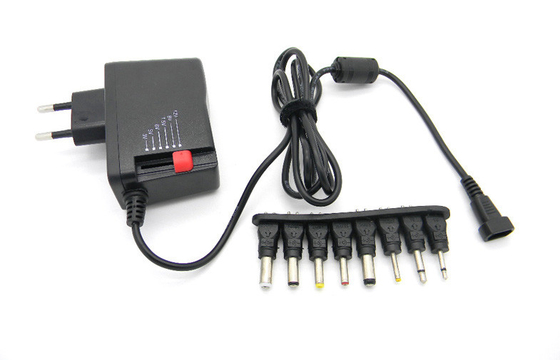

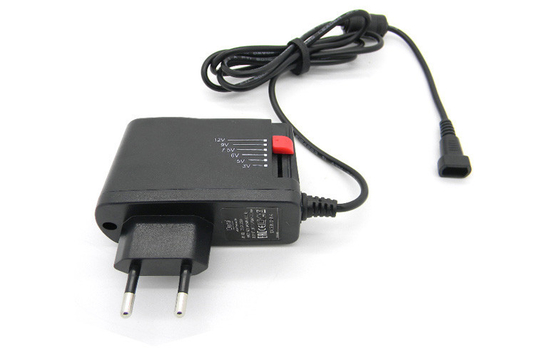

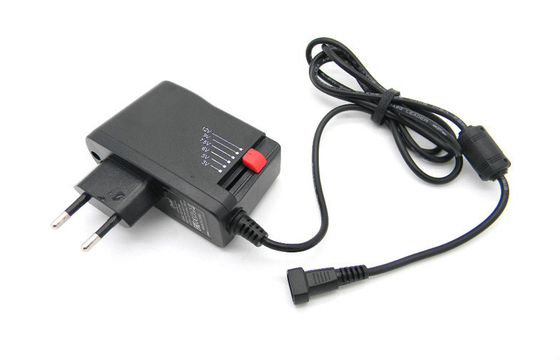

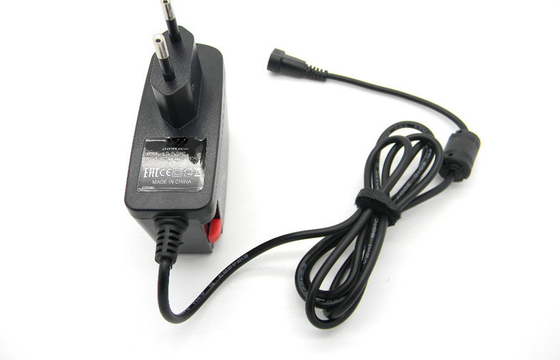

This is an universal AC adapter come with 8 different size tips, its output vary from 3.0 to 12.0 DC. The users can adjust the red switch slip to get the needed working voltage.





Switching mode power adapter with multiple rated output voltage DC 3.0

/5.0/6.0/7.5/9.0/12.0V. 8 different tips guarantee the great compatibility with many devices such as Router, POS System, Security Cameras, Tablets etc.





Specs:



Input: AC100-240V, 1.0A max.

Frequency: 50/60Hz

Output: DC3/5.0/6.0/7.5/9.0/12.0V

Output Current: 2500mA

DC Cable: 22AWG, Copper, length: 1.2M

Plug: EU, UK, CCC,US, SAA and other standards plugs

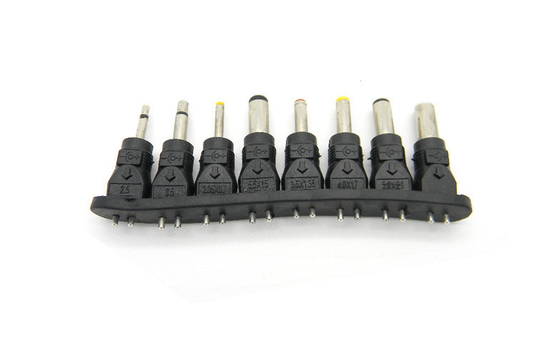

8 different size tips.





Features:



-High efficiency:>83%;

-Protection: Short circuit protection, over voltage protection, over current protection.

-MTBF: 50,000 hours.





Approval: CE, RoHS, FCC

Warranty: 2 years









Applications:



Widely used for Router, POS System, Security Cameras, Tablets etc.





Specifications:



Input

Rated Input Voltage

AC100~240V

Input Voltage Range

AC 90~264V

Rated Frequency

50/60 Hz

Input Frequency Range

47~63 Hz

Input AC Current

300mA

Inrush Current

30A

Output

Rated Output Voltage

DC3/5/6/7.5/9/12V

Rated Output Current

2500mA

Rated Power

30W

Ripple and Noise

150mV p-p

Standby Power Consumption

0.5W

Turn-on

5s

Hold-up

20s

Over Voltage Protection

Yes

Over Current Protection

Yes

Short Circuit Protection

Yes, automatically recover after short circuit removed.

Reliability

Hi-pot

3000Vac

Insulation Resistance

Input to output at 500Vdc

Leakage Current

5mA

EMI Standards

FCC Part 15B Class B

RoHS Compliant

Yes

MTBF

50,000 hours

Burn-in

40+/-5 ℃, full load, 12 hours

Drop Test

6 direction, each one time from height 1.0M

Environmental

Operating Temperature

0~40℃

Operating Humidity

10~80%

Storage Temperature

-20~65℃

Storage Humidity

0~90%

Safety Approvals

CE, RoHS, FCC, UL, SAA

Warranty

2 Years





Competitive Advantage:



-Open private model w/o extra cost for you;

-0.3% free backup of order quantity;

-Direct factory price without middle man.

-High performance-to-price ratio;

-Perfect after-sale service

-
