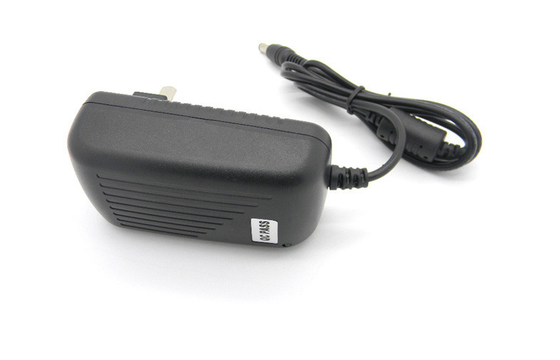

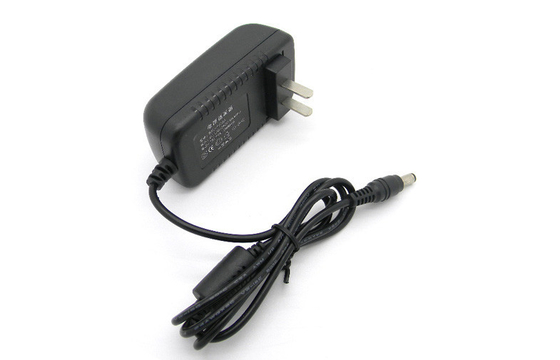

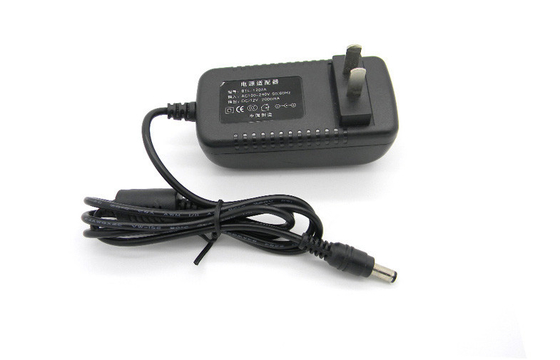

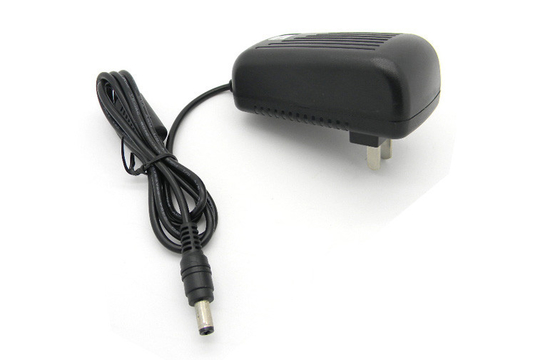

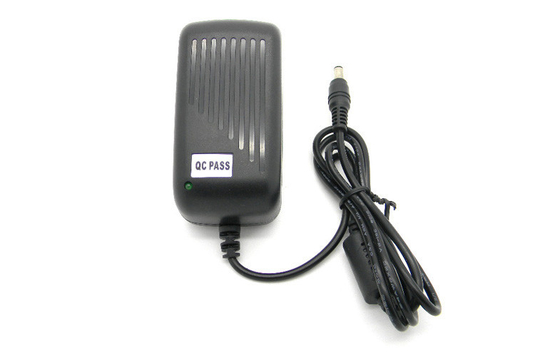

High Efficency Wall Mount Power Adapter 12V 2A AC100-240V With 1.2M Copper

High Efficency Wall Mount Power Adapter 12V 2A AC100-240V With 1.2M Copper

  • High Efficency Wall Mount Power Adapter 12V 2A AC100-240V With 1.2M Copper
  • High Efficency Wall Mount Power Adapter 12V 2A AC100-240V With 1.2M Copper
  • High Efficency Wall Mount Power Adapter 12V 2A AC100-240V With 1.2M Copper
  • High Efficency Wall Mount Power Adapter 12V 2A AC100-240V With 1.2M Copper
  • High Efficency Wall Mount Power Adapter 12V 2A AC100-240V With 1.2M Copper
High Efficency Wall Mount Power Adapter 12V 2A AC100-240V With 1.2M Copper
Product Details:
Place of Origin: Shenzhen,China
Brand Name: RAYTOP
Certification: CE, RoHS, FCC
Model Number: ET1200200
Payment & Shipping Terms:
Minimum Order Quantity: 2K
Price: Negotiable
Packaging Details: PE Bag, Master Carton, Customer package available.
Delivery Time: 15-20 work days.
Payment Terms: T/T, L/C
Supply Ability: 200,000 Pcs monthly.
Contact Now
Detailed Product Description
Name: Switching Power Adapter 12V Place Of Origin: Shen Zhen ,Guang Dong,China
Certification: UL/cUL/FCC/GS(LVD)/CE/EMC/PSE/3C/MEPS/BSMI/RCM/EUP CEC/Energy Star DC Cable: 1.2M
Output: 12V 2A Feature: Switch Adapter 12v
Input: AC100-240V Operating Temperature: 0~40℃
Application: EU|US|UK|SAA|CCC
High Light:

ac to dc power converter

,

wall plug adapter

Switching Power Adapter 12V 5v 1A 2A AC100-240V power supply



Quick Detail:



Switching mode power adapter, DC12V 2A, Wall mount in conformity with CE, RoHS, FCC certification.



Specs:



Input: AC100-240V, 1.2A max.

Frequency: 50/60Hz

Output: DC12V, 2A

DC Cable: 22AWG, Copper, length: 1.2M

Plug: EU, UK, US, SAA, CCC



Features:



-High efficiency:>82%;

-Protection: Short circuit protection, over voltage protection, over current protection.

-MTBF: 50,000 hours.



Approval: CE, RoHS, FCC

Warranty: 2 years



Description:



This is an universal AC/DC adapter come with single output tip 5.5x2.1x10mm, mainly for CCTV security camera application. It has high efficiency as well as steady performance. The tip size and plug type can be changeable.



Note:



indoor use only



Applications:



used for CCTV security camera.



Specifications:



Input

Rated Input Voltage

AC100~240V

Input Voltage Range

AC 90~264V

Rated Frequency

50/60 Hz

Input Frequency Range

47~63 Hz

Input AC Current

0.2A

Inrush Current

30A

Output

Rated Output Voltage

DC12V

Rated Output Current

2000mA

Rated Power

24W

Ripple and Noise

150mV p-p

Standby Power Consumption

0.5W

Turn-on

5s

Hold-up

20s

Over Voltage Protection

Yes

Over Current Protection

Yes

Short Circuit Protection

Yes, automatically recover after short circuit removed.

Reliability

Hi-pot

3000Vac

Insulation Resistance

Input to output at 500Vdc

Leakage Current

5mA

EMI Standards

FCC Part 15B Class B

RoHS Compliant

Yes

MTBF

50,000 hours

Burn-in

40+/-5 ℃, full load, 4 hours

Drop Test

6 direction, each one time from height 1.0M

Environmental

Operating Temperature

0~40℃

Operating Humidity

10~80%

Storage Temperature

-20~65℃

Storage Humidity

0~90%

Safety Approvals

CE, RoHS, FCC, UL, SAA

Warranty

2 Years





Competitive Advantage:



-Open private model w/o extra cost for you;

-0.3% free backup of order quantity;

-Direct factory price without middle man.

-High performance-to-price ratio;

-Perfect after-sale service
