Product Details:
Place of Origin: China
Brand Name: INVT
Certification: CE YUV
Model Number: DR Power Supply
Payment & Shipping Terms:
Minimum Order Quantity: 1 pcs
Price: negotiation
Packaging Details: box
Contact Now
Detailed Product Description
AC Input Voltage: 85-300VAC Power Factor: ≥0.99
Frequency: 45-65Hz Load Rugulaiton: 0.5%
Current Sharing: ≤5% Over Voltage /Temperature: Yes
High Light:

battery back ups

,

ups uninterruptable power supply

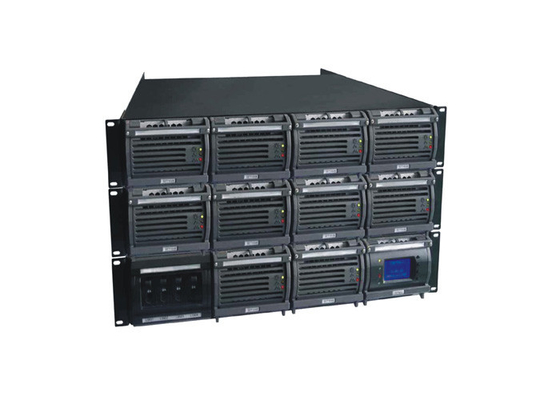

High Frequency UPS Uninterruptible Power Supply  DR Series Telecom Rectifier





Description

The DR series is specially designed to meet the demand for the compact,flexible,high performance,high reliability power supply . The system’s 19 inches and 7U standard structure adapts to various telecom cabinet and racks. The rectifier efficiency is up to 97%, while the standard efficiency is up to 92%.



Specifications







Model

DR48250

DR48120

 AC Input

Voltage

85~300VAC

85~300VAC

Frequency

45~65Hz

45~65Hz

Power Factor

≥0.99

≥0.99

DC Output

Voltage

-42~58.5V

-42~58.5V

Current

100A/1P*2+63A/1P*4+32A/1P*2
32A/1P*2+16A/1P*2+10A/1P*2

63A/1P*2+32A/1P*2
16A/1P*4

Ripple

< 200 mV peak to peak,
< 2 mV rms psophometric

< 200 mV peak to peak,
< 2 mV rms psophometric

Load Regulation

0.5%

0.5%

Current Sharing

≤5%

≤5%

Parallel Rectifier Module

1~5

1~4

Efficiency

Rectifier :97%

Rectifier :97%

Standard:92%

Standard:92%

 Protection

Over Current

Input: fuse; Output: fuse

Input: fuse; Output: fuse

Over Voltage /Temperature

Yes

Yes

LED/Alarm

Yes

Yes

Environment

Noise(1 meter)

≤50dB

≤50dB

Operation /Storage Temperature

–30℃~+65℃/–40℃~70℃

–30℃~+65℃/–40℃~70℃

Relative Humidity

10%-95%(non-condensing)

10%-95%(non-condensing)

 Mechanical
W*D* H (mm)

Subrack

483*334*310

483*371*222

Rectifier module

103*231*84

208*106*42

Weight(Kg)

Subrack

17.2

13

Rectifier module

2.4

1.7





Features

Wide input voltage:85-300V AC
 Widel input voltage:-30~65℃
 Costl efficiency solution:high integrated power supply
 Hot-plug and easy maintenancel
 Full range of protectionl
 Advanced battery managementl
 Interface:RS232/485/SNMP, dry contactorsl



Application

INVT power got high-tech financial support from Shenzhen government.

As one of the biggest power electronics R&D platform in China, INVT keeps putting great investment into technology innovation. Feb. 2011, INVT power was funded by Shenzhen government in terms of technology innovation in power electronics industry. INVT will put more investment into EMC & safety lab, environment lab, test bay, and so on, to meet the requirement of the ongoing products.
