LED Light AC To DC Power Adapter Over Voltage 60Watt Short Circuit

LED Light AC To DC Power Adapter Over Voltage 60Watt Short Circuit

  • LED Light AC To DC Power Adapter Over Voltage 60Watt Short Circuit
  • LED Light AC To DC Power Adapter Over Voltage 60Watt Short Circuit
  • LED Light AC To DC Power Adapter Over Voltage 60Watt Short Circuit
  • LED Light AC To DC Power Adapter Over Voltage 60Watt Short Circuit
  • LED Light AC To DC Power Adapter Over Voltage 60Watt Short Circuit
LED Light AC To DC Power Adapter Over Voltage 60Watt Short Circuit
Product Details:
Place of Origin: Shenzhen,China
Brand Name: RAYTOP
Certification: CE, RoHS, FCC
Model Number: ETJ1200500
Payment & Shipping Terms:
Minimum Order Quantity: 1K
Price: Negotiable
Packaging Details: White box/Master Carton
Delivery Time: 15-20 work days.
Payment Terms: T/T, L/C
Supply Ability: 200,000 Pcs monthly.
Contact Now
Detailed Product Description
Application: LCD Display Screen|LED Light|Humidifier Approval: CE|RoHS|FCC|UL
EMI Standards: FCC Part 15B Input: AC100-240V
Output: 12V 5A Output Power: 60W
Product Name: AC To DC Power Adapter Protection: Short Circuit|Over Voltage|Over Current
High Light:

switching power supply adapter

,

constant current power supply

LED Light AC To DC Power Adapter Over Voltage 60Watt Short Circuit







Quick Detail:

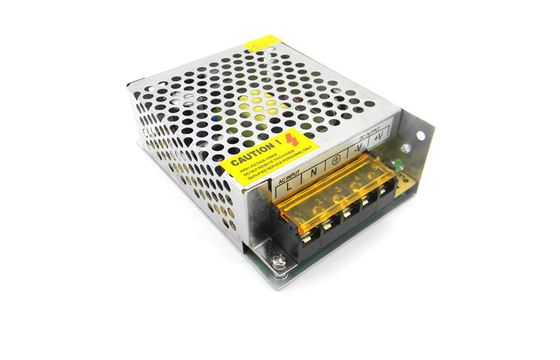

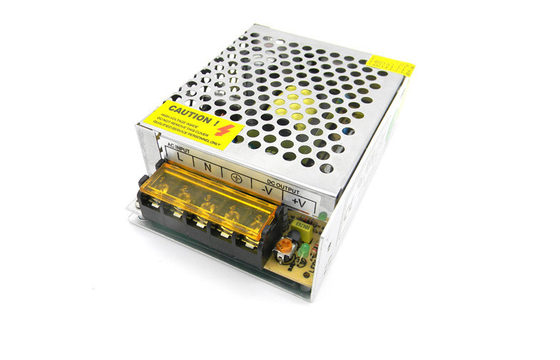

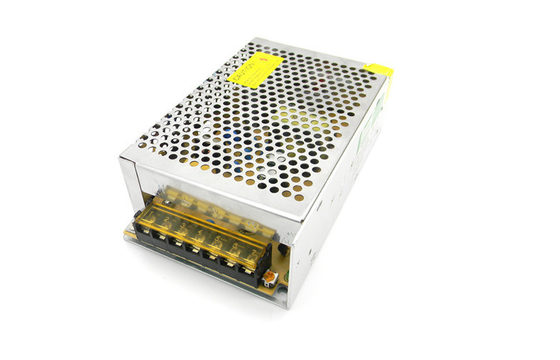

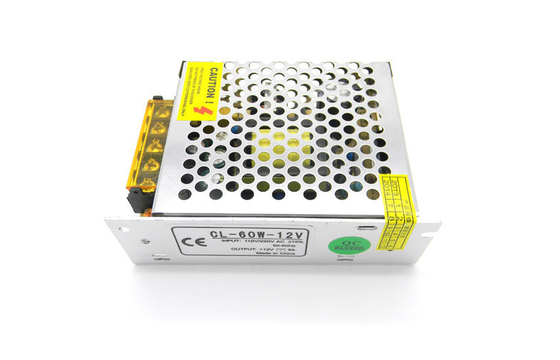

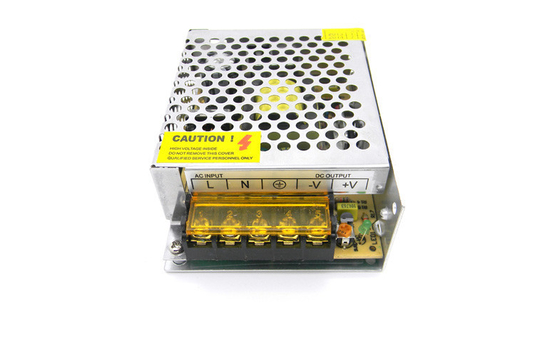

Metal cased switching power supply 60W, input voltage 100-240V, 47~63Hz,in conformity with CE, RoHS, FCC certification. Generally used for LED/LCD display screen, medical equipment, security and protection industry etc.





Specs:

Output: DC12V, 5A

Frequency: 47/63Hz

Input: AC100-240V, 1.0A max.

High Efficiency:>87%.

Inrush Current:Cold start current 40A at 240Vac.

W/O input and output cable.





Features:



- 100~240VAC worldwide voltage input;

- Small size, light weight and high efficiency;

- Natural air cooling;

- 100% hi-pot test, full load;

- Protections: Short circuit protection, over current protection, over voltage protection.



Approval: CE, RoHS, FCC

Warranty: 1 years

Description: Switching power supply, metal enclosure, 60W 12V 5A for LED lights.





Note:



1)  Indoor use only, do not detach the metal case;

2)  The ring shaped net hole is designed for thermal ventilation, please do not play any flammable articles within 50cm distance. Ensure good thermal environment.

3)  Please calculate the output power correctly, and make it working under over load circumstance, avoid to touch the case when using.

4)  Avoid output short circuit, if no output, please repeat using it after 1 minute shut off.

5)  Please make sure correct wire connecting before using the power supply.





Applications:



used for Humidifier, Air Purifier, Electronic Refrigerator, Liquid Crystal Display, LED Light Tool, Sound and Video Equipment, Digital Products.





Specifications:



Input

Rated Input Voltage

AC100~240V

Input Voltage Range

AC 90~264V

Rated Frequency

50/60 Hz

Input Frequency Range

47~63 Hz

Input AC Current

1.0A

Inrush Current

Cold start 120A at100Vac, 60A at 240Vac.

Output

Rated Output Voltage

DC12V±5%

Rated Output Current

5A

Rated Power

60W

Ripple and Noise

130mV p-p

Turn-on

50s @ full load(typical)

Hold-up

20s @ full load(typical)

Over Voltage Protection

Yes, 115%--135%

Over Current Protection

Yes, 130%-150%

Short Circuit Protection

Hiccup type, automatically recover after short circuit remove.

Reliability

Hi-pot

1500Vac

Leakage Current

5mA/240VAC



Withstanding Voltage

I/P-O/P,I/P-FG: 1.5KVAC,O/P-FG:0.5KVAC,1 min

Insulation Resistance

Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ

EMI Standards

FCC Part 15B Class B

RoHS Compliant

Yes

MTBF

50,000 hours

Burn-in

40+/-5 ℃, full load, 4 hours

Environmental

Operating Temperature

-10~60℃

Operating Humidity

10~90%

Storage Temperature

-20~85℃

Storage Humidity

0~95%

Safety Approvals

CE, RoHS,FCC

Warranty

2 Years





Competitive Advantage:



- Open private model w/o extra cost for you;

- 0.3% free backup of order quantity;

- Direct factory price without middle man.

- High performance-to-price ratio;

- Perfect after-sale service
