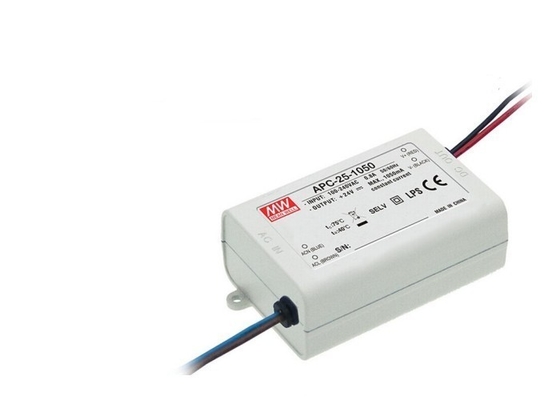

LED Power Supply Constant Current  APC Series 20w LED Driver APC-25-700
Product Details:
Place of Origin: China
Brand Name: Meanwell
Certification: CE,ROHS, TUV, UL
Model Number: APC-25 Single Output LED Power Supply
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiable
Packaging Details: Export Standard Packaging
Delivery Time: 5-7 work days after receiving deposit
Payment Terms: Ex works
Supply Ability: 30000pcs/month
Contact Now
Detailed Product Description
WORKING TEMP.: -30 ~ 70℃ VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, Period For 60min. Each Along X, Y, Z Axes
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH TEMP. COEFFICIENT: ±0.2%/℃ (0 ~ 50℃)
WORKING HUMIDITY: 20 ~ 90% RH Non-condensing SAFETY STANDARDS: UL8750 (except For APC-25-350), CSA-C22.2 No. 250.0-13 (only For APC-25-700&1050) Approved; Design Refer To EN60950-1
WITHSTAND VOLTAGE: I/P-O/P:3KVAC ISOLATION RESISTANCE: I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH
High Light:

LED Light Power Supply

,

LED Light Driver

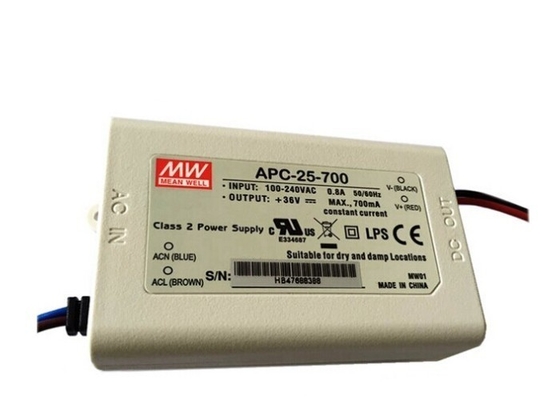

LED Power Supply Constant Current  APC Series 20w LED Driver APC-25-700



AP Series Features (12-35w Single Output LED Power Supply):

1. Universal AC input / Full range
2. Fully isolated plastic case
3. Protections: Short circuit / Overload (APV only) / Over voltage
    Constant voltage mode for APV series
    Constant current mode for APC series
4. IP30 design
5. Withstand 300VAC surge input for 5 seconds (APV/C-25/35)

6. Class 2 power unit / Pass LPS (except for APC-25-350 & APC-35-350/500)
7. Isolation class II, no F.G.
8. Cooling by free air convection
9. 2100% full load burn-in test
10. Low cost, high reliability
11. Suitable for LED lighting and moving sign applications
12. 2 years warranty



APC-25 25W Single Output Switching Power Supply​ Features:

1. Constant current mode power supply
2. Universal AC input / Full range
3. Withstand 300VAC Surge input for 5 seconds
4. Protections:Short circuit / Over voltage
5. Fully isolated plastic case
6. Small and compact size
7. Cooling by free air convection
8. IP30 design
9. 100% full load burn-in test
10. Suitable for LED lighting and moving sign applications
11. Low cost / High reliability
12. 2 years warranty

AP Series Power Supplies:


APV Series:
Single Output LED Power Supply: APV-12 Series, APV-16 Series, APV-25 Series, APV-35 Series

APC Series:
Single Output LED Power Supply: APC-12 Series, APC-16 Series, APC-25 Series, APC-35 Series

Quick Details of APC-25 25W Single Output LED Power Supply:



APC-25 Series (C.C. mode)
Model No. Output Io Tol. R&N Effi.
APC-25-350 25~70V, 350mA ±8% 300mV 83%
APC-25-500 15~50V, 500mA ±8% 300mV 83%
APC-25-700 11~36V, 700mA ±8% 300mV 83%
APC-25-1050 9~24V, 1050mA ±8% 300mV 83%



Specifications of AP-25:



Model No. APC-25/35
AC input voltage range 90~264VAC ; 127~370VDC
AC inrush current (max.) Cold start, 45A at 230VAC
Over voltage protection 110%~145% rated output voltage
Withstand voltage I/P-O/P: 3kVAC
Working temperature -30~+70celsius (refer to output derating curve)
Vibration

10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along

X, Y, Z axes

Safety standards UL8750 approved (except for APC-25-350&APC-35-350/500);
Design refer to TUV EN60950-1
EMC standards EN55022 class B, EN61000-3-2 class A, EN61000-3-3,
EN61000-4-2,3,4,5,6,8,11
Connection Input UL rated, 18AWGx2C (15cm)
Output UL rated, 18AWGx2C (15cm)
Dimension (LxWxH)(mm) 84x 57x 29.5





NOTE:

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the static characteristic for more details.
5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the
complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
6.The unit might not be suitable for lighting applications in EU countries. Please check with your local authorities for the possible use of the unit.


APC-25 Series Datasheet:



LED Power Supply Constant Current  APC Series 20w LED Driver APC-25-700 0

LED Power Supply Constant Current  APC Series 20w LED Driver APC-25-700 1
