No Break Power Standby UPS 400va - 3000va Uninterruptible Power Supply For Home Use

No Break Power Standby UPS 400va - 3000va Uninterruptible Power Supply For Home Use

  • No Break Power Standby UPS 400va - 3000va Uninterruptible Power Supply For Home Use
  • No Break Power Standby UPS 400va - 3000va Uninterruptible Power Supply For Home Use
No Break Power Standby UPS 400va - 3000va Uninterruptible Power Supply For Home Use
Product Details:
Place of Origin: China
Brand Name: UPSEN
Certification: CE, ISO, RoHS
Model Number: Future Star Series 400-3000Va
Payment & Shipping Terms:
Minimum Order Quantity: 50pcs
Price: Negotiation
Packaging Details: Cartons & Wooden Pallet
Delivery Time: 7-15 Days
Payment Terms: T/T, LC, WU, Money Gram etc
Supply Ability: 50,000pcs/Month
Contact Now
Detailed Product Description
Type: Offline Output Power Factor: 0.6
Phase: Single Phase Protection: Over Load//Voltage, Short Circuit Etc
Display: LED Display H.S. Code: 8504402000
High Light:

line interactive ups

,

ups backup power supply



No Break Power Standby UPS 400va - 3000va Uninterruptible Power Supply For Home Use

1: Back up ups, standby ups, offline ups, interactive ups, line interactive ups, uninterruptible power supply

2: UPS can offer no break power supply for home appliances

3: UPS with wide input voltage 100Va-300Va

4: UPS with RJ11, RJ45, RS232 and USB Interface

5: Model: Intelligent Offline AVR UPS Future Star Series 400-3000Va (1ph in/1ph out)



Key Features
1: Intelligent CPU control and management, the function is rich, support RS232 and USB communication monitoring;
2: Adopt the full bridge inverter technology, the system more stable and reliable;
3: Wide input voltage and frequency range; Overload alarm message and automatic protection function;
4: The battery mode no-load automatic shutdown function
5: Depending on the type of perfect detection and overload, short circuit protection (battery mode);
6: At least the periphery of the circuit components, high reliability, easy maintenance;
7: Can match various generator is used

8: Protection against
    • Power surges
    • Power sags
    • High voltage spikes
    • Electrical line noise
    • Switching transients
    • Brownouts
    • Frequency variation


Application
UPSEN Future Star Offline AVR UPS mainly used for computer, POS,Computer Peripherals.





Technical Specification
Model F400 F500/650 F700    F800 F1000 F1200 F1500
Power factor 0.6
Load type Personal computer and other PC peripheral devices
Mains voltage range (140~290) ±5Vac
Mains frequency range (40~70)±1Hz
Output voltage range(Line mode) 220Vac/230Vac±10%(Sine wave)
Output frequency range (Line mode) Synch with mains input
Output voltage range (battery mode) 220Vac/230Vac±5%(Square wave)
Output frequency range (battery mode) (50/60)±1Hz(frequency self-adapt system)
Battery No-load protection Auto protection. The UPS auto shutdown after 2min no load detected
Transfer time ≤8ms
Battery backup time* >6Min(half load)
Battery protection

Auto protection. The UPS auto shutdown

when battery voltage is low or high.

Battery charging time 8 hours to 90%
Short circuit protection Auto protection. Output shuts off and the buzzer beeps continuously
Overload protection

110%<load percentage≤ 120%, buzzer beeps;

 load percentage >120%, output shuts off,

buzzer beeps continuously.

Operating temperature 0℃~40℃
Storage temperature -15℃~45℃
Relative humidity 0%~90%(No condensation water)
Noise ≤35dB(1m from front panel)
Communication interface Intelligent RS-232/USB(Optional)
Network protection RJ45/11 surge protector (Optional)
Size/L×W×H(mm) 230*90*145 291*90*145 330*90*145 340x122x190
Net weight 4 4.5 5 5.2 8.4 9.4 10



Competitive Advantages:


1: Three Years' warranty for Online UPS, and 1% free UPS or 2% free PCB Boards
3: Good after-sales service, we will be full responsible for any faults caused by our side
4: Professional experience in power field more than 10 years
5: Professional technical support before and after sales

6: Timely response, fast delivery time and flexible operations to satisfy any customers' special requests.

7: Free OEM & ODM Service

8: Competitive price, quality and mature products

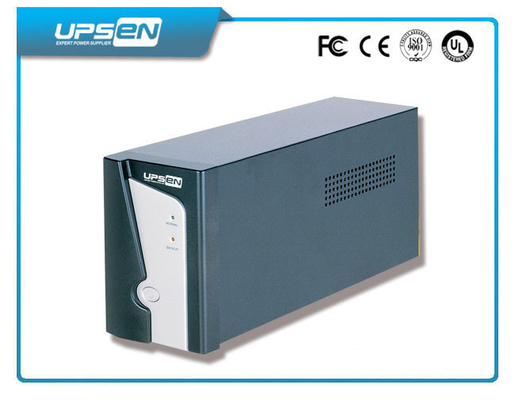

No Break Power Standby UPS 400va - 3000va Uninterruptible Power Supply For Home Use 0

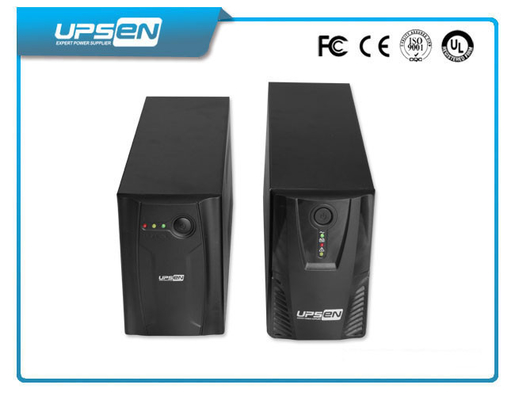

No Break Power Standby UPS 400va - 3000va Uninterruptible Power Supply For Home Use 1No Break Power Standby UPS 400va - 3000va Uninterruptible Power Supply For Home Use 2
