PH10 DIP346 Outdoor Advertising LED Display with 1/4 Scan Constant Current

PH10 DIP346 Outdoor Advertising LED Display with 1/4 Scan Constant Current

  • PH10 DIP346 Outdoor Advertising LED Display with 1/4 Scan Constant Current
  • PH10 DIP346 Outdoor Advertising LED Display with 1/4 Scan Constant Current
  • PH10 DIP346 Outdoor Advertising LED Display with 1/4 Scan Constant Current
PH10 DIP346 Outdoor Advertising LED Display with 1/4 Scan Constant Current
Product Details:
Place of Origin: China
Brand Name: ZCLED
Certification: CE, FCC, ROHS
Model Number: ZCLED--P10
Payment & Shipping Terms:
Minimum Order Quantity: 1sqm
Price: USD 650-1050 per square meter
Packaging Details: Woodencase package or flightcase package
Delivery Time: 8-25 working days
Payment Terms: Western Union, T/T, L/C
Supply Ability: 3000sqm/month
Contact Now
Detailed Product Description
Pixels: 10mm Pixel Configuration: 1R1G1B
Color Matching: R:G:B/3:6:1 Display Capabilities: Video, Text, Graphics, Etc
IP Rating (Front/Rear): IP65/IP43 Panel Material: Steel Or Aluminum
High Light:

outdoor led screen

,

led wall display

PH10 DIP346 Outdoor Advertising LED Display with 1/4 Scan Constant Current


Features

Using mature technical traditional DIP lamp, powerful heat dispersion ,high brightness and good consistency,showing vivid video. The selection of excellent IC and controlling system of Q-Color can guarantee the exquisite displaying effects. Minimum viewing distance is about 10m.



Product details:

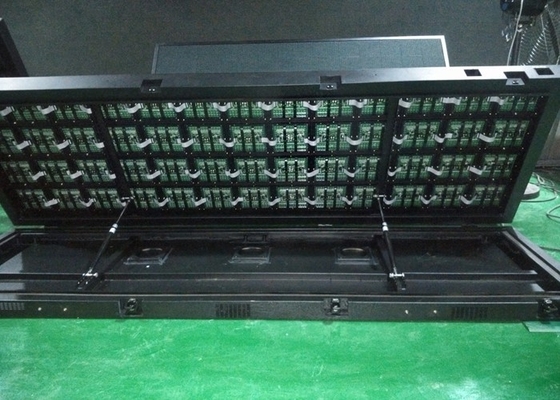

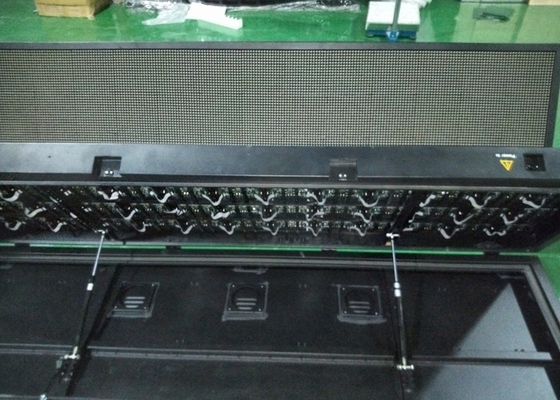

DIP Cabinet
P10mm DIP 346 Full Color Outdoor Led Screens IP65 with 160*160mm Module and Vertical 140° P10mm DIP 346 Full Color Outdoor Led Screens IP65 with 160*160mm Module and Vertical 140°


P10mm DIP 346 Full Color Outdoor Led Screens IP65 with 160*160mm Module and Vertical 140°

Parameter

ZCLED-P10

LED lamp

DIP 346

Pixel pitch (mm)

10

Pixel density(pixel/sq.m)

10000

Pixel configuration

1R1G1B

Driving mode

¼ scan

Module size (mm ,w x h)

160*160

Resolution(WxH)

16*16

Viewing angle(° )

Vertical140° Horizontal140°

Optimum viweing distance(m)

10+

Gray scale (bit)

≥12

Brightness(cd/m2)

≥7500

Refresh rate(hz)

≥800HZ

Power supply

5V,DC

Lifespan(hrs)

100,000>lifespan>40,000

Cabinet size(mm,wxh)

960*960

Cabinet resolution(wxh)

96*96

Cabinet material

Metal/Aluminum

Colors

Black computer grey
Sony grey

Maintenance mode


Front/rear maintenance

Ingress protection

IP65

Cabinet power supply

110-220V(+-10%),AC, 50hz/60hz

Power consumption(w)

Max700w/sqm
Avg 210w/sqm

Working temperature( ℃ )

-30~50

Storing temperature( ℃ )

-40~80

Evaluated weight(kg/m2)

Fe: 60 Al: 45

Communicate signal

Twisted-pair(network)
