Name: Portable 45W 40A - 80A 100V / 240V AC Audio, Video Desktop Switching Power Supply
Brand: Shenzhen Power Adapter Co.,Ltd.
SKU: KSUS045
Availability: InStock

Home Products Desktop Switching Power Supply

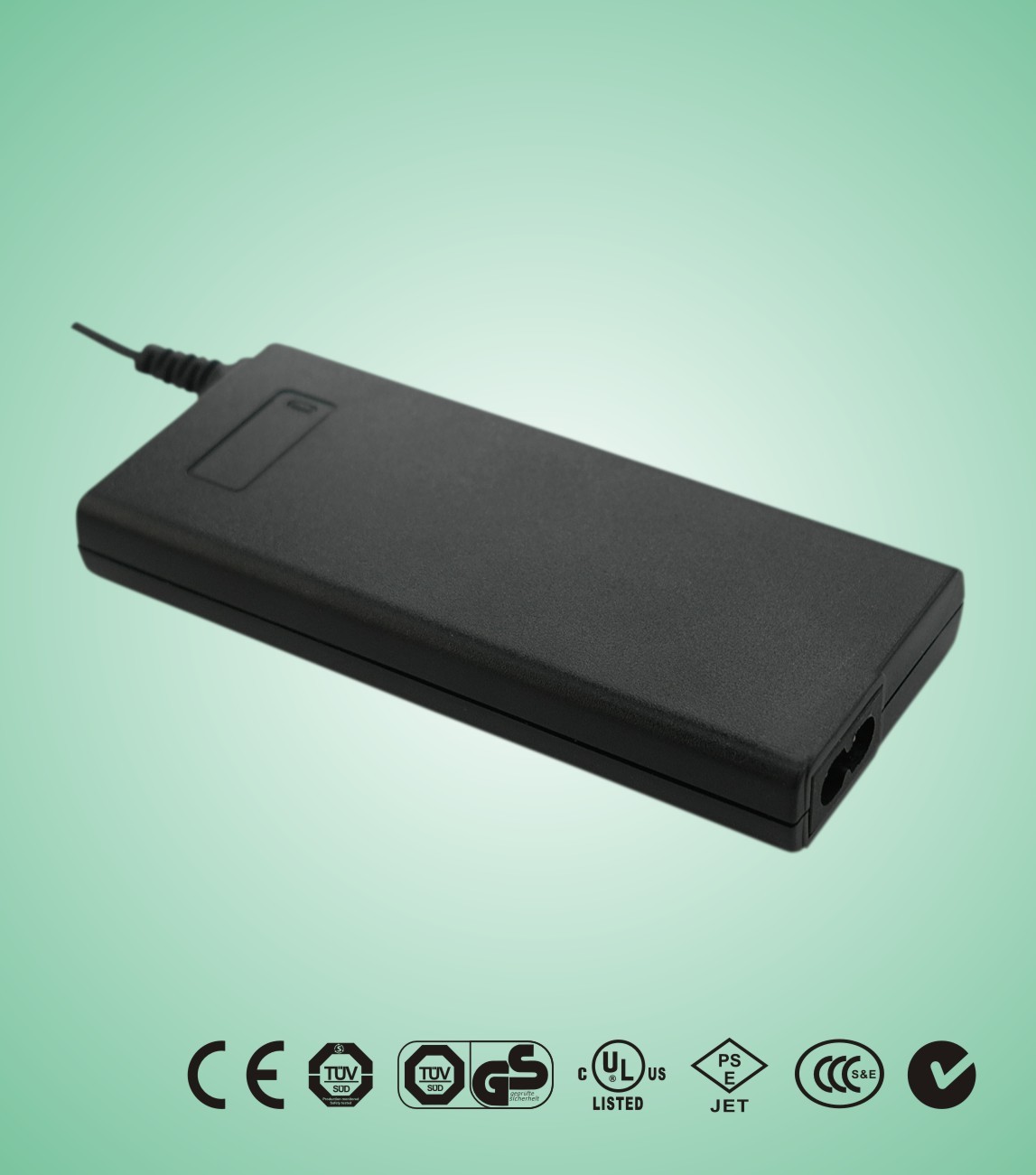

Portable 45W 40A - 80A 100V / 240V AC Audio, Video Desktop Switching Power Supply

Product Details:

Place of Origin:	China
Brand Name:	HIC
Certification:	ISO
Model Number:	KSUS045
Output Type:	DC
Usage:	Laptop
Connection:	Desktop
FOB:	Shenzhen HK

Payment & Shipping Terms:

Minimum Order Quantity:	Negotiation
Price:	Negotiation
Packaging Details:	According to customer’s requirment
Delivery Time:	7-15days
Payment Terms:	L/C T/T,Paypal

Contact Now

Detailed Product Description

Highlight:	Desktop Power Supply

Key Features of KSUS045 series
●Light, extra slim, sleek, compact design
●Green power, full complies with CEC level V, MEPS V EUP2011
●High power density
●Extra safe design, have got their respective safety approvals
●Completed protect function

Key Applications of KSUS045 series
It’s suitable for an extremely wide range of applications, including:
●Mobile Devices
●Laptop
●Printer
●Pos
●Set-top-box
●ADSL
●Hard disk drive
●Audio & Video product
●Household appliance

Input

●Input Voltage :    90 to 264 VAC
●Frequency :        47-50/60-63hz
●Input   current :   1.2A(Max) 100 /240VAC
●Inrush current :   40AMax 120VAC at max Load
                                 80AMax 240VAC at max Load
●Leakage current:0.25 mA Max

Output

●Over voltage protection
●Over current protection
at 110-200% of lo and Auto-recovery
●Over temperature protection
●Electronic short circuit protection
●Operatingtemperature 0~40℃Free convection
●Operating humidity 10-90% RH Non Condensing
●Sea level Non-operating temperature -20~80℃

Safety standards

●Information technology equipment
●IEC/EN 60950-1, UL 60950-1, CSA C22.2
No. 60950-1-03, GB4943

Certificates and approvals

●CB , GS , CE , TUV, UL , CCC , FCC, PSE, C-TICK

EMI Emission

●Radiation Test&Conduction Test: EN 55022/FCC Part 15
●Harmonic Test : EN 61000-3-2
●Flicker Test : EN 61000-3-3

EMS immunity

●ESD Test:EN 61000-4-2

●RS     Test:EN 61000-4-3
●EFT    Test:EN 61000-4-4
●Surge Test:EN 61000-4-5
●CS      Test:EN 61000-4-6
●DIP     Test:EN 61000-4-11

Mechanical SPEC

Dimension L*W*H (mm) : 120.0 * 52.0 * 17

Product tables for 45W
