ROHS 18V DC Portable Constant Current 5W LED Power Supply IP68 300mA With EN61547

ROHS 18V DC Portable Constant Current 5W LED Power Supply IP68 300mA With EN61547

  • ROHS 18V DC Portable Constant Current 5W LED Power Supply IP68 300mA With EN61547
ROHS 18V DC Portable Constant Current 5W LED Power Supply IP68 300mA With EN61547
Product Details:
Place of Origin: Shenzhen China
Brand Name: DongDaHua
Certification: CE & ROSH
Model Number: HF-5
Payment & Shipping Terms:
Packaging Details: As for your requirement
Delivery Time: As per your order quantity
Payment Terms: T/T & L/C
Supply Ability: 3000 Pieces/Day
Contact Now
Detailed Product Description
Product Name: Constant Current LED Power Supply Input Voltage Range: 90-264V AC
Input Frequency Range: 47-60HZ Input Ac Current: 0.15A / 235V
Output Rated Power: 5W Output Rated Current: 300mA ±10mA
High Light:

led light power supply

,

Constant Current LED Driver

Short Circuit Protection Constant Current LED Power Supply 5W 9-18V DC 300mA IP68 EN61547





Application:

It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.





Specifications:



Product Electric Parameters

Output

Dc Voltage

9-18V±5%

Rated Current

300mA±10mA

Rated Power

5W

Rippple&Noise(MAX)

100mV

Voltage Tolerance

±20mA

Setup, Rise Time

100ms/220VAC

Hold Up Time(Typ.)

80ms/220VAC

Input

Voltage Range

90-264VAC

Frequency Range

47-60HZ

Power Factor(Typ)

PF>0.5/220VAC

Efficiency(Typ)

83%

Ac Current(Typ)

0.15A/235V

Tnrush Current(Typ)

Cold-start current 2.1A/235V

Protection

Short Circuit

Protection type :recovers automatically after condition is  removed

Overload

Overload protection@145~160%above peak rating

Over Temperature

Protection typer:shut down o/p voltage.re-power on to recover

Environment

Working Temp

-30~ +60°C(Refer to output load derating curve)

Working Humidity

20~90%RHno-condensing(Waterproof)

Storage Temp Humidity

-40~+80°C, 10~90%RH

Safety&EMC

Sefety Standards

CE Mark(LVD), IP67

Withstand Voltage

I/P-O/P:1.5KVAC IP-GND:1.5KVAC

EMC Test Standrads

EN 55015:2006;EN 61547:1955+A1:2000;EN 61000-3-2:2006 ;EN61000-3-2:1995+A2:2005 EN61347-1:2008;EN 61347-2-13:2006

NOTE

1.All parameters NOT specially mentioned are measured at 220VAC input , rated load and 25°C of ambient temperature.

2.Ripple&noise are measured at 20HZ of bandwidth by using a12’’ twisted pair-wire terminated with a 0.1 uf&10uf parallel capacitor.

3.Tolerance:includes set up tolerance, line regulation and load regulation.

Others

Dimension

75*30*20(mm)(L*W*H)

Carton Quantity

100PCS/Carton

Carton Size

340*240*190

Weight

0.13kg/pcs

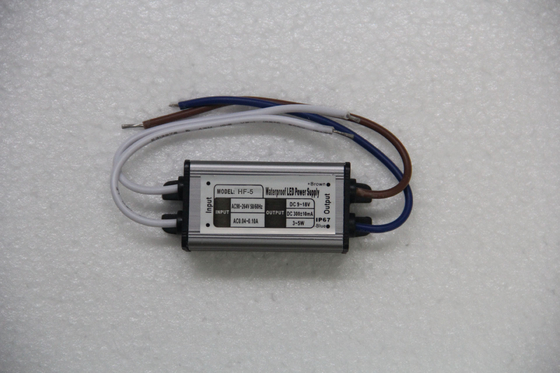

ROHS 18V DC Constant Current 5W LED Power Supply IP68 300mA With EN61547



Competitive Advantage:



1. Protections :Short circuit/Overload/Over temperature

2. Cooling by free air convection

3. IP67 design for indoor or outdoor installations

4. 100% full load burn-in test

5. Suitable for LED lighting

6. Products through CE& ROHS certification

7. Two years warranty
