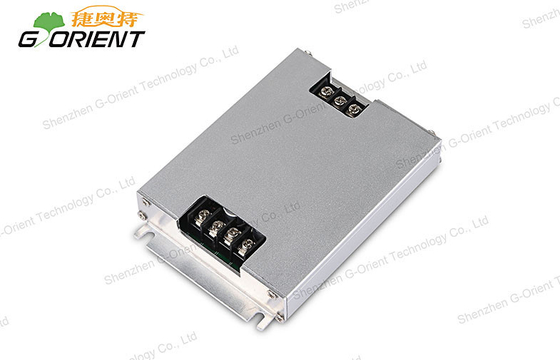

Vehicle LED Advertising Screen thin power supply 4.2V 20A 84W

Vehicle LED Advertising Screen thin power supply 4.2V 20A 84W

  • Vehicle LED Advertising Screen thin power supply 4.2V 20A 84W
Vehicle LED Advertising Screen thin power supply 4.2V 20A 84W
Product Details:
Place of Origin: China
Brand Name: G-ORIENT
Certification: ISO9001 / CE / ROHS / FCC
Model Number: NHD100-4.2-A
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiable
Packaging Details: 20pcs/12Kgs / CARTONS
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Paypal, Western Union, L/C
Supply Ability: 50,000pcs per month
Contact Now
Detailed Product Description
Size: 120*80*18mm Input: 9-36V DC
Output: 4.2V DC / 20A Output Power: 84W
Case Material: Metal, Aluminium Standard: CE / ROHS / FCC
High Light:

slim power supply

,

small power supply





Vehicle LED Advertising Screen thin power supply 4.2V 20A 84W





Company Advantage:

1. OEM&ODM,any your customized lightings we can help you to design and put into product

2. Top Quality+Reasonable Price+Responsible After Service=Successful & Win

3. Distributorship are offered for your unique design and some our current models

4. Protection of your sales area,ideas of design and all your private information

5. Your inquiry related to our products or price will be replied in 24hrs





Features:

* Low output ripple and noise

* High efficiency 94% & small size

* 2 years warranty

* To prevent car screen flower screen, the splash screen and two horizontal line design

* Through the EMC certification

* Input reverse connect protection

* Aluminum metal shell,natural cooling





Specifications:

Switching power supply

 NHD100-4.2-A

 OUTPUT

DC Voltage

 4.2V

Current Range

 0~20A

Rated Current

 20A

Rated Power

 84W

Ripple & Noise(max.)

 <100mVp-p

Voltage set point accuracy

 +/- 3.0%Vo max

Over-current protection

 >120%io,hiccup

Line Regulation

 0.2%Vo max

Load Regulation

 0.2%Vo max

Short-circuit protection

 Hiccup

Hold up time

 >8mS

Overshoot and undershoot

 < +/- 5.0%

 INPUT

Voltage Range

 DC9-36V

Frequency Range

 BW=20MHz

Efficiency(Typ.)

 94%

DC Current

 <25A

Inrush Current(Typ.)

 100A at DC Cold start

Leakage Current

 Input-Output< 0.2mA ; Input-PG:<0.3mA

 Environment

MIBF

 >2 million hrs

Temp.Coefficient

 < 0.02%/℃

Storage Temperature range

 -55 ~ +115℃

Operaing board Temperature range

 -25 ~ +65℃

 Safety

Safety standards

 CE

Withstand Voltage

 DC20V

 Others

Dimension

 120*80*18mm (L*W*H)

Packing

 0.6kg; 20pcs/12Kgs

 Note











Competitive Advantage:

* CE / ROHS / FCC approval

* Low output ripple and noise

* Ultra-thin 18mm

* The two level output over voltage protection

* Output over-current,short-circuit,over-load,over-voltage protection

* High efficiency up to 94%





Applications:

This power supply suitable for automobile,ship,electric cars,new energy products,LED electronic signs,car audio,and other energy-saving appliances stable power supply use.
