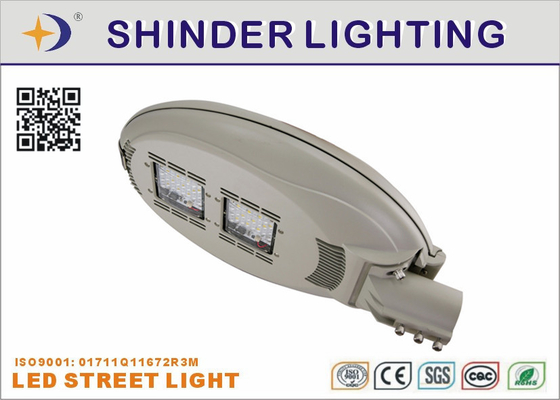

Waterproof Outdoor 60w LED Street Light With Constant Current IC Driver

Waterproof Outdoor 60w LED Street Light With Constant Current IC Driver

  • Waterproof Outdoor 60w LED Street Light With Constant Current IC Driver
  • Waterproof Outdoor 60w LED Street Light With Constant Current IC Driver
Waterproof Outdoor 60w LED Street Light With Constant Current IC Driver
Product Details:
Place of Origin: China
Brand Name: shinder
Certification: CE ROHS
Model Number: SDZD802-60
Payment & Shipping Terms:
Minimum Order Quantity: 1
Packaging Details: 62.0*40.5*26.50 cm / 1 piece / 6.50 kg / CTN
Delivery Time: 15 work days
Supply Ability: 1000 pcs per month
Contact Now
Detailed Product Description
Type: 60w Led Street Light Power: 60w
Voltage: 85-265v PF: 0.73-0.92
Uniformity: 0.45 CCT(K): 4100
Luminous Flux: 5100 Optional: 0-90 Degree
High Light:

led road light

,

led highway lights

5 years warranty high power 60w outdoor led street light ip65 waterproof  price list



Specifications:



Item Name

802-60

Lumen

6800Lm

Power

60W

LED Type

  SMD

Voltage

AC85~265V

LED Quantity

LUXEON Rebel ES

SIZE

62*40.5*26.5mm/PC/CTN

PF

0.73-0.92

Material

Alumimun Die Casting

G.W/N.W

  6.5/5.00KG

Operational

0-90 Degree

The IP rating

  IP65

Surface Color

Grey/Black

Operation Temperature

  -20℃-+50℃

Color Temperature

4100K

Lamp working temperature

   ≤60℃

Life Span

50000 Hours

Uniformity

 0.45

Warranty

3 YEARS

Power supply circuit

   Constant Current IC Driver

Certificates

CE RoHS



 Waterproof Outdoor 60w LED Street Light With Constant Current IC Driver 0

Description:



1. Led chip: LUXEON® Rebel ES gives you the flexibility you need for designing luminaires and lamps.Tested and binned at 700 mA, confidently design LUXEON Rebel ES into high lumen applications or create more energy efficient devices using the same designers count on LUXEON Rebel ES for quality, realiablity and in-device performance.



2. Led Power Supply: Constant current Mean well series power supply will protect LED chip in correct current and voltage. It provide power factor >0.9 and power efficient > 90% characteristic to ensure power saving. Also it has over current, over voltage, over temperature and short circuit protection to ensure the long time lifespan.



3. Stainless steel parts: Endurancing the corrosion of air, water, chemical acid, alkaline,salt and other materials, can be used in all kinds of harsh conditions for long term.



4. Lamp Housing: High quality aluminum alloy housing with spray painting surface finish, dust-resistant, moisture-proof, firm and durable. The lead time of manufacture is fast because of die-casting production process.



5. Heat sink: Sufficient and thickness liner radiation fin are average distributed on the back of front head by die-casting technology with excellent thermal conductivity.



6. IP65 waterproof structure:Every gap, screw and interface used the rubber ring with silica gel for waterproof purpose.



7. Lifespan: led street light has 50000 hours lifespan for using.



8. Warranty:we offers 3-years product warranty for all products. If you need 5-years warranty for this wattage product, please contact us directly.



Waterproof Outdoor 60w LED Street Light With Constant Current IC Driver 1



Applications:


LED Street Lights are widely used for Arterial road,Branch road,Factories,schools,gardens,city squares and so on.


Competitive Advantage:


1. Long life properties;
2. Contains no mercury;
3. Easy to be installed.;
4. High efficiency.
5. 50,000-hour rated average life;
6. Use Philips LUXEON Rebel ES;
7. High uniformity.
8. Square light stripe
9. With IES file



Packing & Shipping



1. form stuff supports the lamp

2. lamp is eveloped inside pc bag

3. other foam covers the lamp

4. tough corrugated paper carton packing

Waterproof Outdoor 60w LED Street Light With Constant Current IC Driver 2

Our service :



Best price with good-quality



Your inquiry will be replied within 24 hours.



Well-trained & experienced sales can reply your inquiries in English.



ON line with 24 hours



Your business relationship with us will be confidential to any third party.



Good after-sale service
