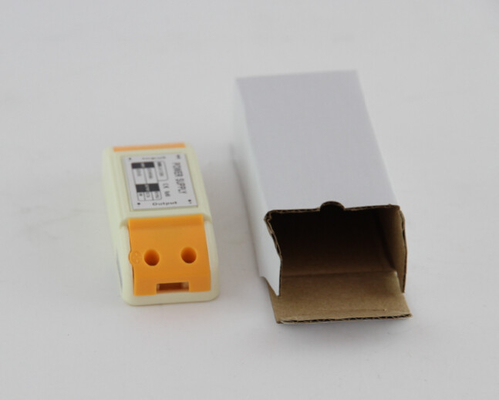

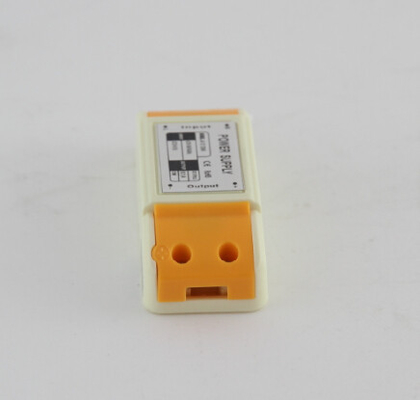

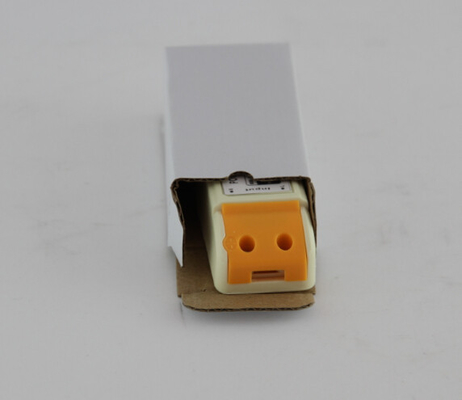

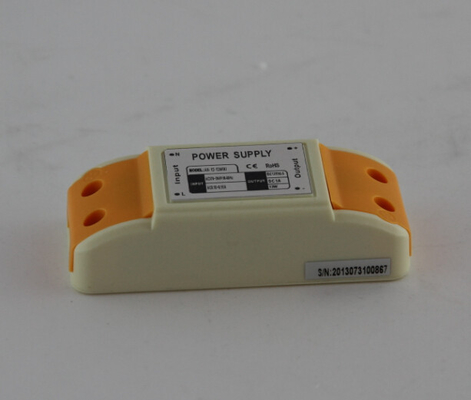

wide application 1A MINI 80*32*22mm Plastic case 12V DC LED Power supply

wide application 1A MINI 80*32*22mm Plastic case 12V DC LED Power supply

  • wide application 1A MINI 80*32*22mm Plastic case 12V DC LED Power supply
  • wide application 1A MINI 80*32*22mm Plastic case 12V DC LED Power supply
  • wide application 1A MINI 80*32*22mm Plastic case 12V DC LED Power supply
  • wide application 1A MINI 80*32*22mm Plastic case 12V DC LED Power supply
wide application 1A MINI 80*32*22mm Plastic case 12V DC LED Power supply
Product Details:
Place of Origin: Shenzhen China
Brand Name: DongDaHua
Certification: CE & ROSH
Model Number: AN-12-12MIN
Payment & Shipping Terms:
Minimum Order Quantity: 100PCS
Price: USD1.5-2/PCS
Packaging Details: white box/color box;exporting carton
Delivery Time: 5-7 days on average
Payment Terms: T/T & L/C
Supply Ability: 3000 Pieces/Day
Contact Now
Detailed Product Description
PCB: Glass Fiber Board IC: New Material
Short Circuit Protection: YES Overload Protection: YES
Cooling: Natural Without Fan MOQ: Negotiable
OEM: Available
High Light:

Waterproof LED Strip Lights

,

LED Strip Lighting



High Efficiency Plastic Case 12v Led Power Supply Mini 80 * 32 * 22 mm



Quick detail:



1. MINI Plastic case 12V DC LED Power supply

2. DC voltage: 12v

3. Output current: 1A

4. Size:80*32*22mm



Description:



1. Load adjustment: taken under 0~100% of rated load.

2. International broad voltage AC input

3. Protection: short-circuit, overload, overheat

4. 100% full-load aged

5. Protection mode: hiccup, automatic restoration after abnormity removed.





Specificatation:



Product No. AN-12-5 AN-12-12min AN-12-24 AN-12-48
Output DC voltage 5V 12V 24V 48V
Capacity of current 2A 1A 0.5A 0.25A
Range of current 0-2A 0-1A 0-0.5A 0-0.25A
Power 10W 12W 12W 12W
Noise max. 2 120mVp-p 150mVp-p 240mVp-p 250mVp-p
Voltage adjustment - - - -
Voltage accuracy 3 ±2% ±1% ±1% ±1%
Linear Adjustment 4 - - - -
Load adjustment 5 ±1.5% ±0.5% ±0.5% ±0.5%
Start and rise time 1000ms,30ms/230VAC
Hold time (Typ) 50ms/230VAC
Input Voltage range AC 87-264V
Frequency range 47-63HZ
Efficiency (Typ) 75% 80% 82% 82%
AC current (Typ) 0.18A/90V 0.08A/220V
Surge current (Typ) cold start:65A/230VAC
Current leak <2mA/240VAC
Protection Overload Greater than 105% of capacity
Protection mode: hiccup, automatic restoration after abnormity removed
Overvoltage

Overheat

Environment Working temp. -20~+60℃(see tenuation curve)
Working humidity 20~90% RH,without condense
Storage temp & hmdty -40~+80℃
Temp. coefficient ±0.03%/℃ (0~50℃)
Vibration proof 10~500Hz, 5G 10min / cycle,X,Y,Z axes 60 min each
Safety reg. & EMC Safety regulation GB195110.1-2004/IEC61347-1:2003 CE(EMC+LVD)
Voltage proof I/P-O/P:1.5KVAC
insulation resistance I/P-O/P:100M Ohms/500VDC/25℃/70% RH
EMC irradiation EN 55015:2006;EN61000-3-2:1995+A2:2005
EMC disturbance proof EN 61000-3-2:2006;
  Dimensions 80*32*22mm(L*W*H)
Packing 0.06Kg/PCS;216PCS/13kg



Competitive Advantage:



1. Using low voltage (12 DC), reliable performance

2. Output low ripple and noise

3. Super bright top LED

4. Two year warranty

5. Average working no trouble >50, 000 hours



wide application 1A MINI 80*32*22mm Plastic case 12V DC LED Power supply
