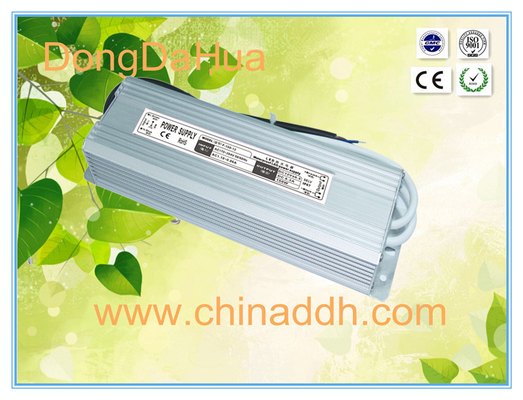

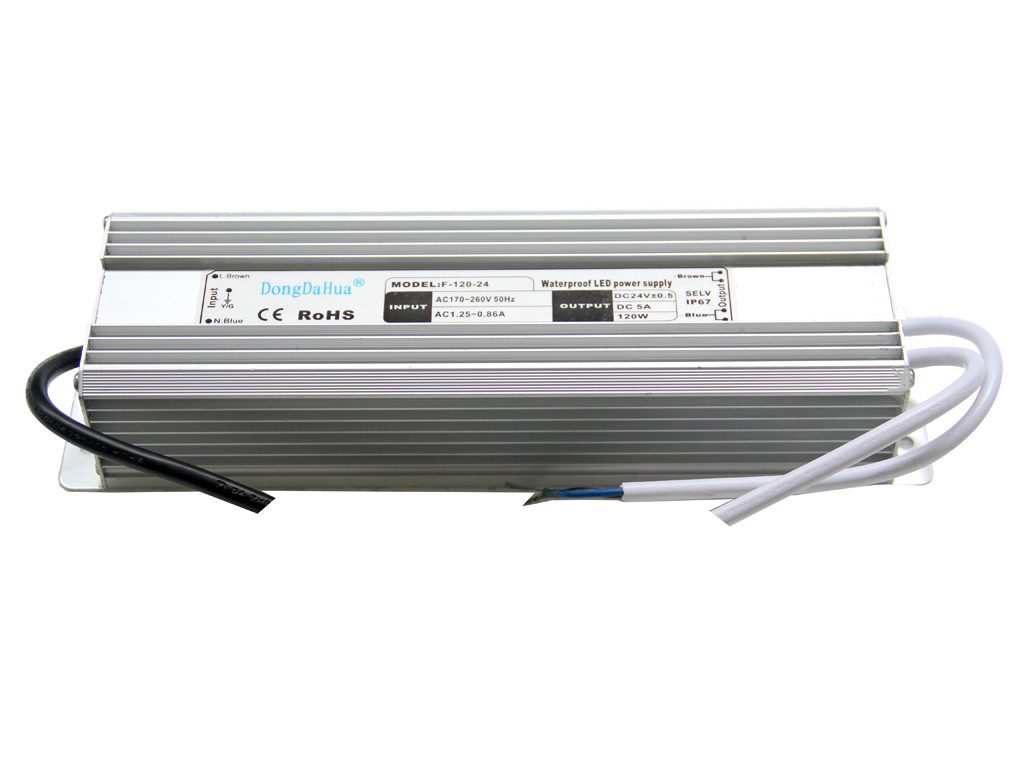

120W 5A Waterproof 24V DC LED Driver Single Output , IP68 LED Light Power Supply

120W 5A Waterproof 24V DC LED Driver Single Output , IP68 LED Light Power Supply

  • 120W 5A Waterproof 24V DC LED Driver Single Output , IP68 LED Light Power Supply
  • 120W 5A Waterproof 24V DC LED Driver Single Output , IP68 LED Light Power Supply
  • 120W 5A Waterproof 24V DC LED Driver Single Output , IP68 LED Light Power Supply
  • 120W 5A Waterproof 24V DC LED Driver Single Output , IP68 LED Light Power Supply
120W 5A Waterproof 24V DC LED Driver Single Output , IP68 LED Light Power Supply
Product Details:
Place of Origin: China
Brand Name: HIC
Certification: ISO
Model Number: F-120-24
Product Name: Waterproof LED Driver
Output Power: 120W
Output voltage: 24V DC
Safety standards: EPA3540C
Current: 5A
IP: IP68
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: According to customer’s requirment
Delivery Time: 7-15days
Payment Terms: L/C T/T,Paypal
Contact Now
Detailed Product Description
High Light:

LED Power Supply Driver

,

LED Strip Power Supply

Over-current Protection Waterproof LED Driver Power Supply 120W 24V DC 5A IP68 EPA3540C





Application:

It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.





Competitive Advantage:



•IP67 protection grade

•100% load test,  built-in EMI filters

•Full range of input voltage

•output voltage accurate and stable

•Output over-voltage,  over-current and short-circuit protection

•Output low ripple and noise

•Two year warranty

•Average working no trouble >50, 000 hours





Specifications:



Product Electric Parameters

Input specification

Input voltage

AC170V---264V

Input frequency

47-63Hz

Input surge

20A@120VAC  40A@230VAC

Output specification

Start-up time

≦1S (230V Input, Io=100%)

keep time

≧20mS (230V Input, Io=100%)

Voltage regulation

(full)≦0.5%

Protection function

Overload protection

105% - 150% rated power,  automatic recovery

Over-voltage protection

105% - 150% of the rated voltage

Insulation intensity

Input---output

1500VAC/1min

Input--ground

1500VAC/1min

Output---ground

500VAC/1min

Safety standards

According with GB4943,  EN60950-1 ; EPA3050B:1996; EN1122:2001 ; EPA3052:1996; EPA3060A;  EPA7196; EPA3540C;EPA8270C standards.

E M C standards

According with EN55022 class A EN61347-2-13:2008 standards

Environmental

working temperature

- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)

Storage temperature

- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)

height above sea level

≦2000M

Structure

Size (mm)

230(L)*72(W)*45(H)

Cooling method

Cooling method

Natural cooling air convection

Weight

1.2KG/Pcs
