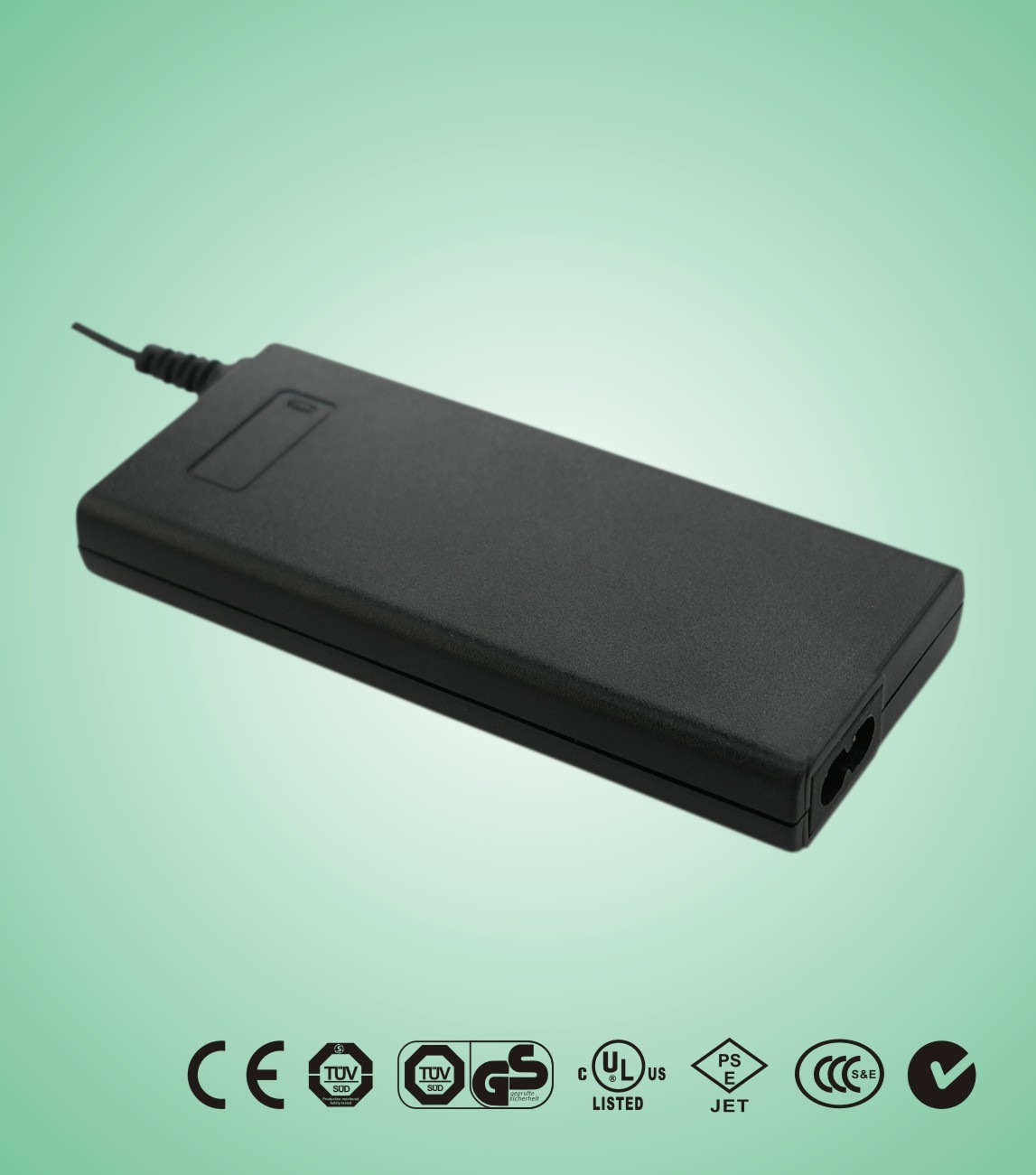

Green 2 / 3 prong 120v - 240v 45W usb port Desktop Switching Power Supply

Green 2 / 3 prong 120v - 240v 45W usb port Desktop Switching Power Supply

  • Green 2 / 3 prong 120v - 240v 45W usb port Desktop Switching Power Supply
  • Green 2 / 3 prong 120v - 240v 45W usb port Desktop Switching Power Supply
Green 2 / 3 prong 120v - 240v 45W usb port Desktop Switching Power Supply
Product Details:
Place of Origin: China
Brand Name: HIC
Certification: ISO
Model Number: KSUS045
Output Type: DC
Usage: Laptop
Connection: Desktop
FOB: Shenzhen HK
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: According to customer’s requirment
Delivery Time: 7-15days
Payment Terms: L/C T/T,Paypal
Contact Now
Detailed Product Description
High Light:

Desktop Power Supply

,

Computer Switching Power Supply

Key Features of KSUS045 series

●Light, extra slim, sleek, compact design

●Green power, full complies with CEC level V, MEPS V EUP2011

●High power density

●Extra safe design, have got their respective safety approvals

●Completed protect function



Key Applications of KSUS045 series

It’s suitable for an extremely wide range of applications, including:

●Mobile Devices

●Laptop

●Printer

●Pos

●Set-top-box

●ADSL

●Hard disk drive

●Audio & Video product

●Household appliance

Input

●Input Voltage :    90 to 264 VAC

●Frequency :        47-50/60-63hz

●Input   current :   1.2A(Max) 100 /240VAC

●Inrush current :   40AMax 120VAC at max Load

                                 80AMax 240VAC at max Load

●Leakage current:0.25 mA Max

Output

●Over voltage protection

●Over current protection

  at 110-200% of lo and Auto-recovery

●Over temperature protection

●Electronic short circuit protection

●Operatingtemperature 0~40℃Free convection

●Operating humidity 10-90% RH Non Condensing

●Sea level Non-operating temperature -20~80℃

Safety standards

●Information technology equipment

●IEC/EN 60950-1, UL 60950-1, CSA C22.2

   No. 60950-1-03, GB4943

Certificates and approvals

●CB , GS , CE , TUV, UL , CCC , FCC, PSE, C-TICK

EMI Emission

●Radiation Test&Conduction Test: EN 55022/FCC Part 15

●Harmonic Test : EN 61000-3-2

●Flicker       Test : EN 61000-3-3

EMS immunity

●ESD   Test:EN 61000-4-2



●RS     Test:EN 61000-4-3

●EFT    Test:EN 61000-4-4

●Surge Test:EN 61000-4-5

●CS      Test:EN 61000-4-6

●DIP     Test:EN 61000-4-11

Mechanical SPEC

Dimension L*W*H (mm) : 120.0 * 52.0 * 17


Product tables for 45W
