| Place of Origin: | China |
| Brand Name: | HIC |
| Certification: | ISO |
| Model Number: | KSAP0901900474M2 |
| Output Type: | DC |
|---|---|
| Usage: | Laptop |
| Connection: | Desktop |
| FOB: | Shenzhen HK |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | According to customer’s requirment |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C T/T,Paypal |
| High Light: | Desktop Power Supply,Switch Power Supply |
||
|---|---|---|---|

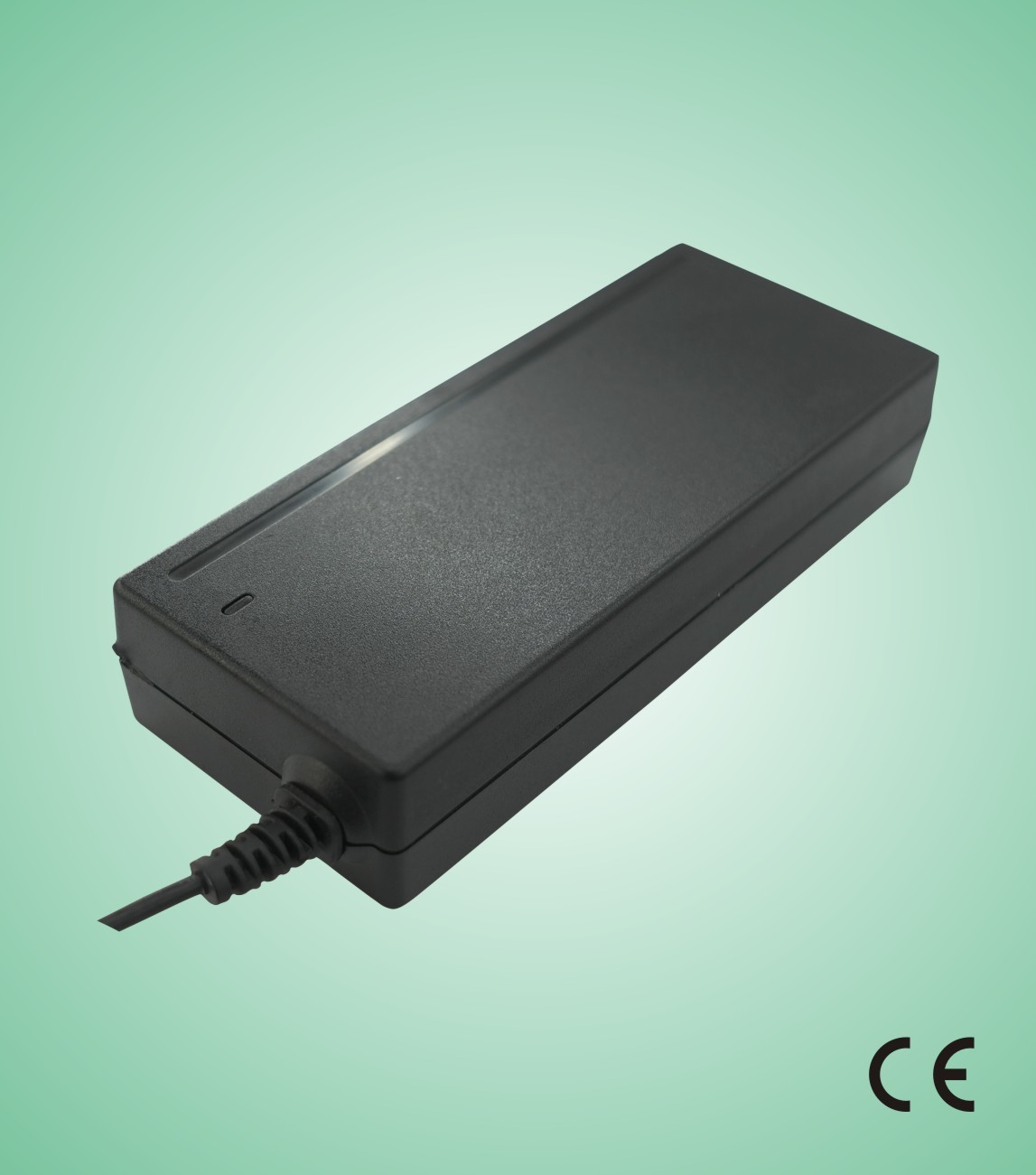

Key features of KSAP0901900474M2
●Light, extra slim, sleek, compact design
●Green power, full complies with CEC level V, MEPS V EUP2011
●High power density
●Extra safe design, have got their respective safety approvals
●Completed protect function
Key Applications of KSAP0901900474M2
It’s suitable for an extremely wide range of applications, including:
●Laptop
●Set-top-box
●ADSL
●Hard disk drive
●Audio & Video product
●Household appliance
●Input Voltage: 90 to 264 VAC
●Frequency : 47-50/60-63hz
●Input current : 1.2A(Max)
●Inrush current : 60AMax 120VAC at max Load
60AMax 40VAC at max Load
●Leakage current :0.25 mA Max
●Over voltage protection
●Over current protection
at 110-200% of lo and Auto-recovery
●Over temperature protection
●Electronic short circuit protection
●Operatingtemperature 0~35 ℃Free convection
●Operating humidity 10-90% RH Non Condensing
●Sea level Non-operating temperature -20~80℃
●Information technology equipment
●IEC/EN 60950-1
●CE
●Radiation Test&Conduction Test:EN 55022
●Harmonic Test : EN 61000-3-2
●Flicker Test : EN 61000-3-3
●ESD Test:EN 61000-4-2
●RS Test:EN 61000-4-3
●EFT Test:EN 61000-4-4
●Surge Test:EN 61000-4-5
●CS Test:EN 61000-4-6
●DIP Test:EN 61000-4-11
Dimension L*W*H (mm) : 149*63.5*31.8
|
