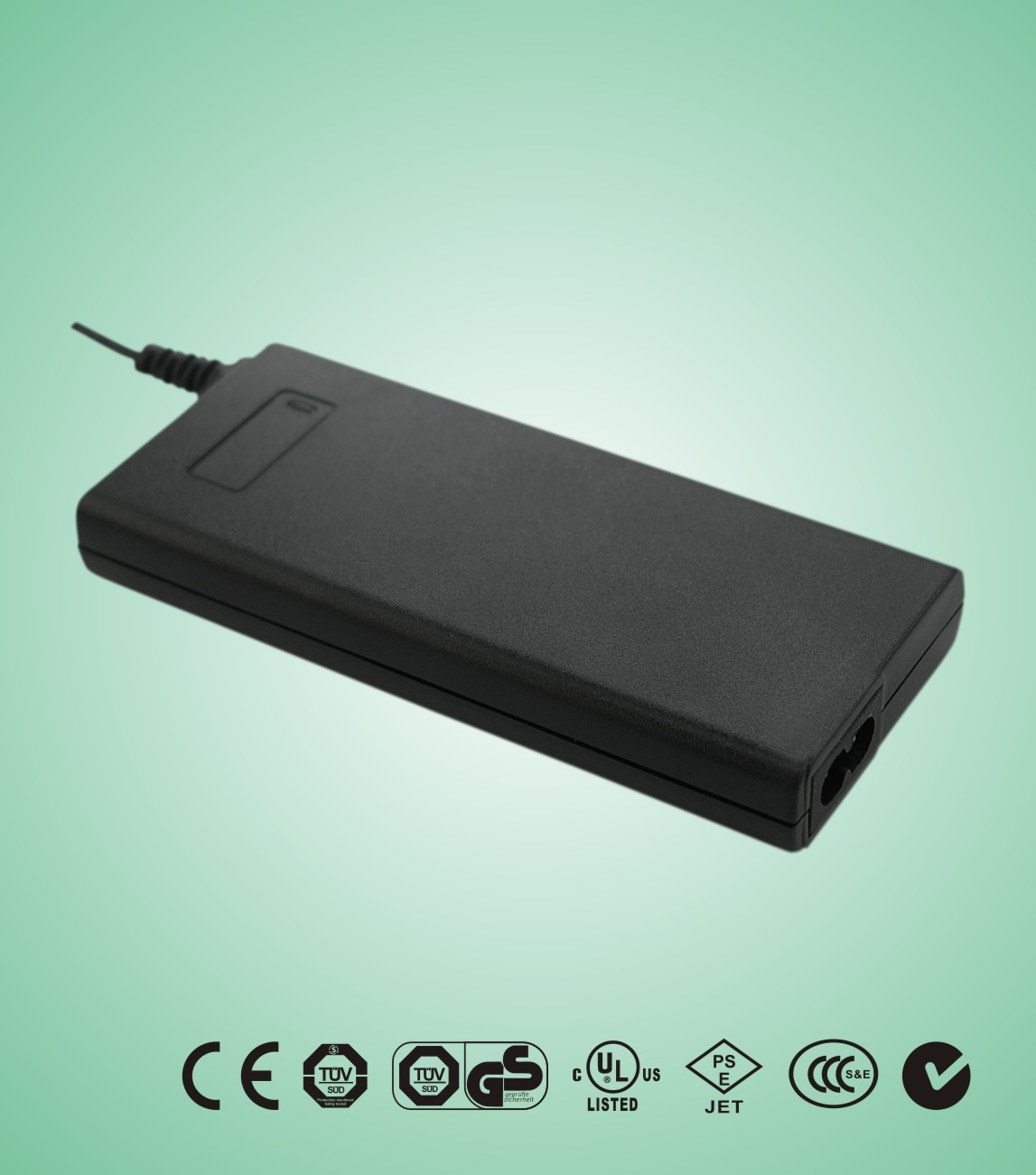

Green 30W 0.8A - 60A 100V / 240V Desktop Switching Power Supply (47HZ - 50hz / 60 - 63 hz)

Green 30W 0.8A - 60A 100V / 240V Desktop Switching Power Supply (47HZ - 50hz / 60 - 63 hz)

  • Green 30W 0.8A - 60A 100V / 240V Desktop Switching Power Supply (47HZ - 50hz / 60 - 63 hz)
  • Green 30W 0.8A - 60A 100V / 240V Desktop Switching Power Supply (47HZ - 50hz / 60 - 63 hz)
Green 30W 0.8A - 60A 100V / 240V Desktop Switching Power Supply (47HZ - 50hz / 60 - 63 hz)
Product Details:
Place of Origin: China
Brand Name: HIC
Certification: ISO
Model Number: KSUS030
Output Type: DC
Usage: Laptop
Connection: Desktop
FOB: Shenzhen HK
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: According to customer’s requirment
Delivery Time: 7-15days
Payment Terms: L/C T/T,Paypal
Contact Now
Detailed Product Description
High Light:

Desktop Power Supply

,

Switch Power Supply

Key Features of KSUS030 series
●Light, extra slim, sleek, compact design
●Green power, full complies with CEC level V, MEPS V EUP2011
●High power density
●Extra safe design, have got their respective safety approvals
●Completed protect function

Key Applications of KSUS030 series
It’s suitable for an extremely wide range of applications, including:
●Mobile Devices
●Laptop
●Printer
●Pos
●Set-top-box
●ADSL
●Hard disk drive
●Audio & Video product
●Household appliance

Input

●Input Voltage:    90 to 264 VAC
●Frequency :        47-50/60-63hz
●Input    current :  0.8A(Max) 100 /240VAC
●Inrush current :   60AMax 120VAC at max Load
                                 100AMax 240VAC at max Load
●Leakage current: 0.25 mA Max

Output

●Over voltage protection
●Over current protection
  at 110-200% of lo and Auto-recovery

●Electronic short circuit protection
●Operatingtemperature 0~40℃Free convection
●Operating humidity 10-90% RH Non Condensing
●Sea level Non-operating temperature -20~80℃
Safety standards

●Information technology equipment
●IEC/EN 60950-1, UL 60950-1, CSA C22.2
  No. 60950-1-03, GB4943

Certificates and approvals

 ●CB , GS , CE , TUV, UL , CCC , FCC, PSE, C-TICK

EMI Emission

●Radiation Test&Conduction Test :EN 55022/FCC Part 15
●Harmonic Test : EN 61000-3-2
●Flicker       Test : EN 61000-3-3

EMS immunity

●ESD   Test:EN 61000-4-2

●RS     Test:EN 61000-4-3
●EFT    Test:EN 61000-4-4
●Surge Test:EN 61000-4-5
●CS      Test:EN 61000-4-6
●DIP     Test:EN 61000-4-11

Mechanical SPEC

Dimension L*W*H (mm) : 103.0 * 50.0 * 17

Product tables for 30W
