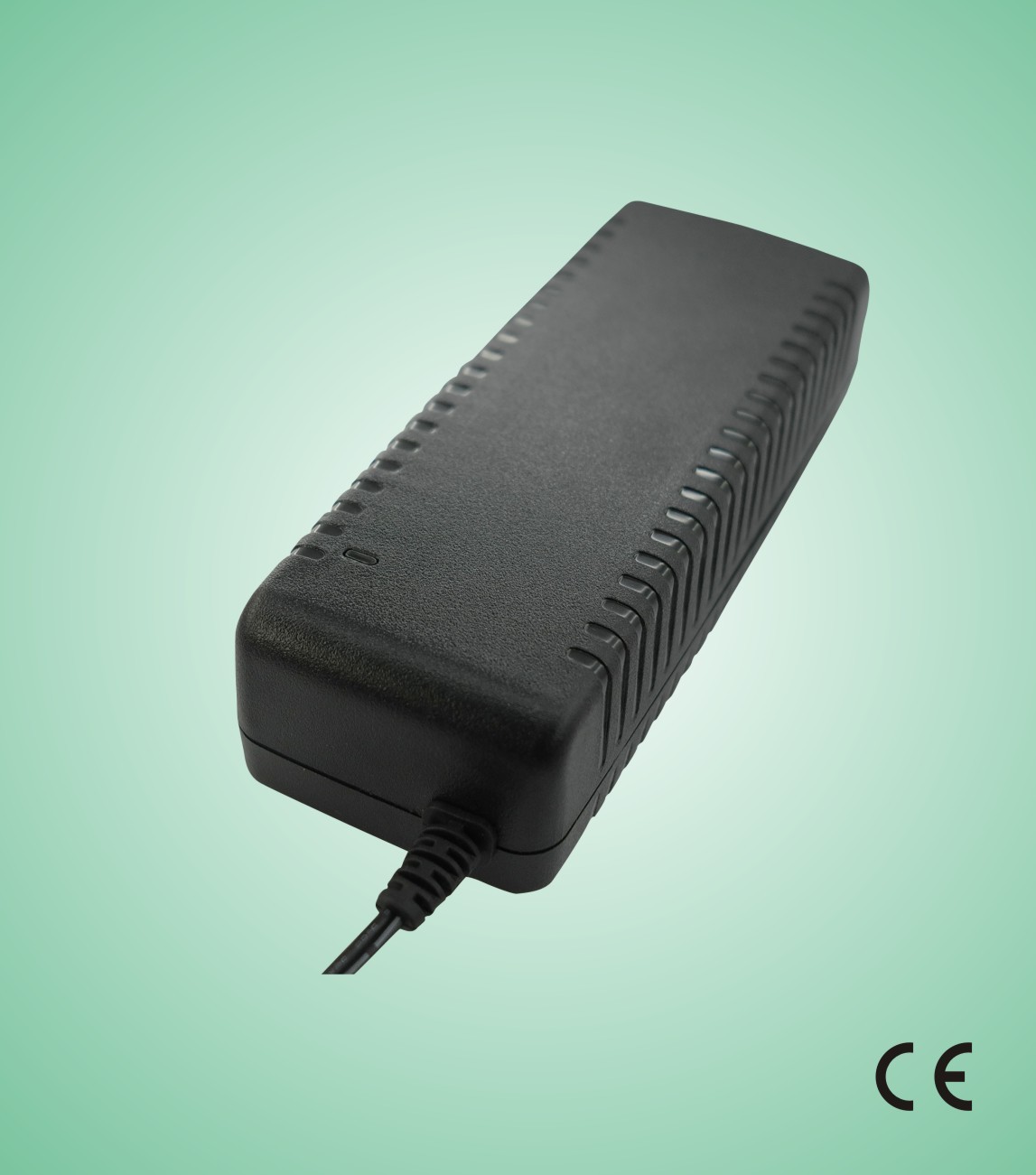

Ktec 120W High Power Density Desttop Switching Adapter Power for Set-top-box / laptop

Ktec 120W High Power Density Desttop Switching Adapter Power for Set-top-box / laptop

  • Ktec 120W High Power Density Desttop Switching Adapter Power for Set-top-box / laptop
  • Ktec 120W High Power Density Desttop Switching Adapter Power for Set-top-box / laptop
Ktec 120W High Power Density Desttop Switching Adapter Power for Set-top-box / laptop
Product Details:
Place of Origin: China
Brand Name: HIC
Certification: ISO
Model Number: KSAFN3000400T1M3
Output Type: DC
Usage: Laptop
Connection: Desktop
FOB: Shenzhen HK
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: According to customer’s requirment
Delivery Time: 7-15days
Payment Terms: L/C T/T,Paypal
Contact Now
Detailed Product Description
High Light:

Desktop Power Supply

,

Switch Power Supply

Key Features of KSAFN3000400T1M3

●Light, extra slim, sleek, compact design

●High power density

●Extra safe design, have got their respective safety approvals

●Completed protect function

 Key Applications of KSAFN3000400T1M3

It’s suitable for an extremely wide range of applications, including:

●Printer

●Massage armchair

●Set-top-box

●ADSL

●Hard disk drive

●Audio & Video product

●Household appliance

Input

●Input Voltage:90 to 264 VAC

●Frequency :      47-50/60-63hz

●Input   current :1.2A(Max)

●Inrush current :100AMax 120VAC at max  Load

                              100AMax 240VAC at max  Load

●Leakage current :0.25 mA Max

Output

●Over voltage protection

●Over current protection

  at 300% lo and.automatic-recovery

●Over temperature protection

●Electronic short circuit protection

●Average efficiency 80% Measured at 25℃

●Operatingtemperature 0~40℃Free convection

●Operating humidity 10-90% RH Non Condensing

●Sea level Non-operating temperature -20~80℃

Safety standards

●Information technology equipment

●EN 60335

Certificates and approvals

 ●CE

EMI Emission

●Radiation Test&Conduction Test: EN 55022/FCC Part 15

●Harmonic Test : EN 61000-3-2

●Flicker       Test : EN 61000-3-3

EMS immunity

●ESD    Test:EN 61000-4-2

 ●RS      Test:EN 61000-4-3

●EFT     Test:EN 61000-4-4

●Surge Test:EN 61000-4-5

●CS      Test:EN 61000-4-6

●DIP     Test:EN 61000-4-11

Mechanical SPEC

Dimension L*W*H (mm) : 173*64*42


Product tables for 120W
