Worldwide Wall Mount AC to DC Power Light Bulb / LCD Monitor Adapters , 50Hz / 60Hz

Worldwide Wall Mount AC to DC Power Light Bulb / LCD Monitor Adapters , 50Hz / 60Hz

  • Worldwide Wall Mount AC to DC Power Light Bulb / LCD Monitor Adapters , 50Hz / 60Hz
  • Worldwide Wall Mount AC to DC Power Light Bulb / LCD Monitor Adapters , 50Hz / 60Hz
  • Worldwide Wall Mount AC to DC Power Light Bulb / LCD Monitor Adapters , 50Hz / 60Hz
Worldwide Wall Mount AC to DC Power Light Bulb / LCD Monitor Adapters , 50Hz / 60Hz
Product Details:
Place of Origin: China
Brand Name: HIC
Certification: ISO
Model Number: WT1203000
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: According to customer’s requirment
Delivery Time: 7-15days
Payment Terms: L/C T/T,Paypal
Supply Ability: 8000 PCS/Day
Contact Now
Detailed Product Description
High Light:

cell phone power adapter

,

portable power adapter

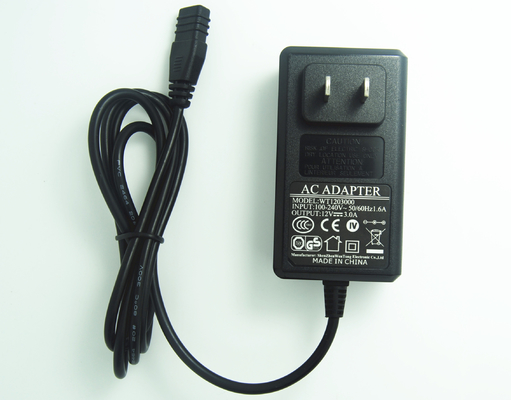

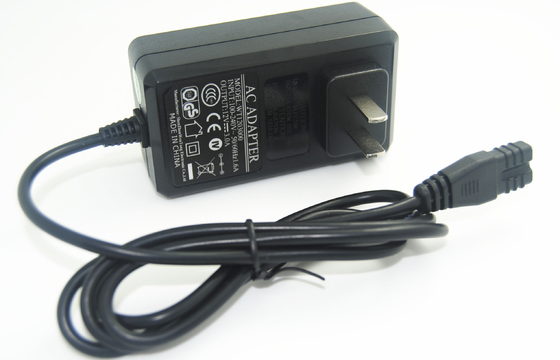

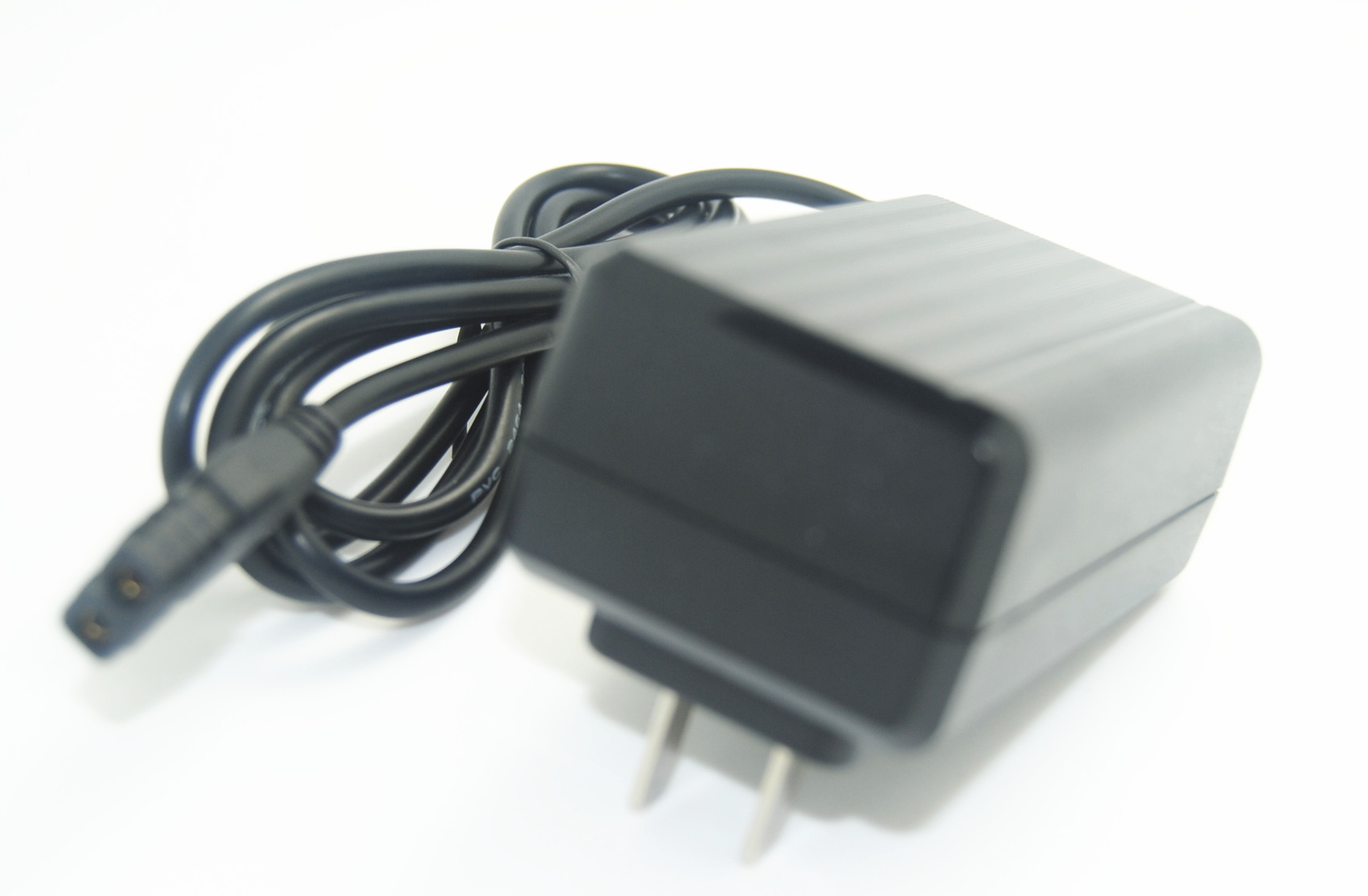

12V 3A 36W Output CCC Plug Wall Mount Power Adapters with Special DC Jack B Type



Quick Details:

  • Input voltage: 100 to 240V AC, 50/60Hz
  • Output voltage: 12V 3A
  • Power: 36W
  • Dimension (L x W x H): 96.2*44.4*34.2mm
  • Socket type: B Type
  • Application: Digital Picture Frame, Video Telephone, LED Lights, LCD Monitors, etc



Description:



1. Surface cosiness, small size and convenient carrying

2. Low cost, high reliability and all cases are covered by ultrasonic

3. Built-in OVP, OCP and SCP

4. Universal input voltage:

a. I/P voltage 100-240VAC; 50/60Hz

b. Turn on delay time≤3s

c. Inrush current≤30A/24V AC

5. O/P:

a. High accuracy and low noice

b. Hold up time ≥20mS

6. Operation model: CV

7. Environment:

a. Operation temperature: 0°C-40°C;5%-90%RH

b. Storage temperature: -20°C-85°C;5%-95%RH

8. Cooling: Natural cooling

9. Energy standard: CEC/ERP

10. Safety standard: IEC/EN60950

11. Insulation: hi-pot, 3,000V AC 60S 10mA

12. Leakage current: 0.25mA (maximum)

13. MTBF: MIL-HDBK-217F, full load, 25, more than 50,000 hours

14. RoHS compliant



Warranty:

1 year

Certification:

 UL/CUL, PSE, TUV/GS, CE, CCC, SAA and ROHS

Usage:

Digital Picture Frame, Video Telephone, LED Lights, LCD Monitors, etc

Packaging:



a. PE bag+ white box  84pcs/carton

b. PE bag without white box  100pcs/carton

Place of Origin:

China(Mainland)

Brand Name:

WT

Model Numeber:

WT1203000

MOQ:

500 pcs

Delivery Time:

15 Days

Payment Terms:

T/T(30% in advance, 70% the balance must be paid before the delivery)

Supply Ability:

8000 PCS/Day





Our Advantages:

  • Professional&experienced engineers
  • Good quality
  • Competitive price
  • Intime service
  • Free samples available
  • About 10 years experiences
  • OEM/ODM services are highly welcome
  • Flexible to meet dynamic requirements
  • High technology
  • Short Lead time
  • AC input power suitable for the world
  • Soft-start current can reduce the AC input impact efficiency
  • With short-circuit and overload protection
  • Compact size ,light weight
  • 100%full-load burning test
  • Installed with EMI filter ,minimum wave
  • Fashionable design
  • Small size
  • Low-ripple and noise
  • High-efficiency



Some Using Details:

  • Do not install power supply in locations with high humidity, dust or strong direct sunlight.
  • Connect power supply to the supplied unit.
  • Power supply must be connected to a working electrical AC line with a voltage of 100-240V.
  • Power supply can only be installed indoors.
  • The power supply should be installed in a location with good airflow.
