| Place of Origin: | China |
| Brand Name: | HIC |
| Certification: | ISO |
| Model Number: | P150W1000A |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | According to customer’s requirment |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C T/T,Paypal |
| High Light: | cell phone power adapter,portable power adapter |
||
|---|---|---|---|

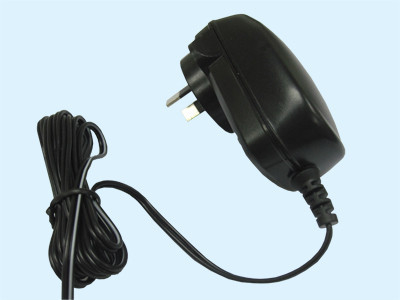

CCTV Camera Power Adapter Wall Mount 15V 1.0A , SAA AC Plug With EN60950
Feature:
. Universal AC Input / Full Range
. Class II power
. No load consumption < 0.3W
. Protections: Overload , Short Circuit , Over Voltage
. Guarantee : 2 years
Description :
SAA AC plug 15V1.0A Wall Mount Power Adapter For CCTV Camera
|
Electronics Specification : |
|
|
Input Voltage Range: |
90~264Vac |
|
AC current: |
0.3A |
|
Frequency: |
50/60Hz |
|
Inrush Current: |
30A/230Vac |
|
Leakage Current: |
0.25mA/240Vac |
|
Output Voltage: |
15.0Vdc |
| Output Voltage Range : |
14.25 ~ 15.75 Vdc |
| Output Current : |
1000mA |
| Efficiency : |
> 80% |
|
Ripple and Noise : |
< 100mVp-p |
|
Line regulation: |
±1% |
|
Load regulation: |
±5% |
|
Efficiency: |
Meet energy star level V |
|
Over current protection: |
Hiccup mode, Auto recovery |
|
Over voltage protection: |
Power shutdown, Auto recover |
|
Environment : |
|
|
Working Temp.: |
0~40℃ |
|
Working Humidity: |
20%~90% RH non-condensing |
|
Storage Temp. & Humidity: |
-20℃~85℃, 10%~95% RH |
|
Reliability : |
|
|
Hi-Pot Testing Voltage : |
I/P to O/P : 3.0 (60Sec.) KVac |
|
Safety Standard : |
EN60950 |
|
EMI Standard : |
EN55022B |
|
Safety Approval : |
|
|
Certificate |
UL , CB , CE , FCC , C-TICK |
|
Mechanical Characteristics : |
|
|
Size: |
75mm * 47mm * 31mm (L*W*H) |
|
AC connector |
SAA plug |
|
DC Cable: |
1.8M |
|
DC connector: |
5.5*2.1*12mm, other type connector avaible |
Applications :
widely used in household appliances, IT digital products, medical equipments, communication equipments, instrumentations, bank data equipment, computer peripheral products, security monitoring system, industrial and light field equipment and other products.
