| Place of Origin: | China |
| Brand Name: | HIC |
| Certification: | ISO |
| Model Number: | PFOD250-A |
| Minimum Order Quantity: | Negotiation |
|---|---|
| Price: | Negotiation |
| Packaging Details: | According to customer’s requirment |
| Delivery Time: | 7-15days |
| Payment Terms: | L/C T/T,Paypal |
| High Light: | universal ac power adapters,universal power ac adapter |
||
|---|---|---|---|
Dual Output Open Frame Power Supply
Feature:
. Full Input Range
. Power Factor Built in , PF > 0.93
. Protections: Overload, Short Circuit
. High Reliability , Compesitive Cost
. Warranty : 2 Years
. Used On Security Equipment , Lighting Etc.
Description:

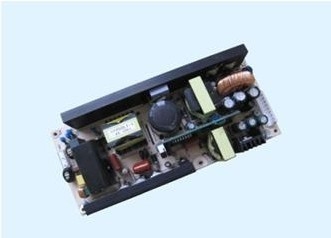

250W Dual Output Open Frame Power Supply With PFC
|
Electronics Specification : |
|
|
Input Voltage Range: |
90~264Vac |
|
AC current: |
3.0A |
| PF : |
> 0.93 |
|
Frequency: |
50 / 60Hz |
|
Inrush Current: |
30A / 230Vac |
|
Leakage Current: |
<0.25mA / 240Vac |
|
Output Voltage : |
CH1 : 12V ~ 48Vdc ; CH2 : 5Vdc |
| Voltage Tolerance : |
±5% |
| Output Current : |
8.30A |
|
Output Power : |
250.0W ( Max. ) |
|
Line regulation: |
±1% |
|
Load regulation: |
±5% |
|
Efficiency: |
Meet energy star level V(CEC) |
|
Over current protection: |
Hiccup mode, Auto recovery |
|
Over voltage protection: |
Power shutdown, Auto recover |
|
Environment : |
|
|
Working Temp.: |
0~40℃ |
|
Working Humidity: |
20%~90% RH non-condensing |
|
Storage Temp. & Humidity: |
-20℃~85℃, 10%~95% RH |
|
Reliability : |
|
|
Hi-Pot Testing Voltage : |
I/P to O/P : 3.0 (60Sec.) KVac |
|
Safety Standard : |
EN60950 |
|
EMI Standard : |
EN55022B |
|
Safety Approval : |
|
|
Certificate |
CE , REACH , ROHS |
|
Mechanical Characteristics : |
|
|
PCB Size: |
222mm * 95mm * 40mm ( L * W * H ) |
|
AC connector |
VH-2,Pin=3.96mm |
|
DC connector: |
WH-4,Pin=3.96mm |
Extension Output Data :
|
Model No. |
Voltage |
Current range |
Ripple & Noise |
Eff. |
|
|
PFOD250-A |
CH1 |
12.0V |
0.1~15.0A |
120mV |
>83% |
|
CH2 |
5.0V |
0.1~5.0A |
50mV |
||
|
PFOD250-B |
CH1 |
24.0V |
0.1~9.4A |
150mV |
>86% |
|
CH2 |
5.0V |
0.1~5.0A |
50mV |
||
|
PFOD250-C |
CH1 |
36.0V |
0.1~6.3A |
200mV |
>86% |
|
CH2 |
5.0V |
0.1~5.0A |
50mV |
||
|
PFOD250-D |
CH1 |
48.0V |
0.1~4.7A |
200mV |
>86% |
|
CH2 |
5.0V |
0.1~5.0A |
50mV |
||
Applications:
widely used in household appliances, IT digital products, medical equipments, communication equipments, instrumentations, bank data equipment, computer peripheral products, security monitoring system, industrial and light field equipment and other products.
Factory Show:
