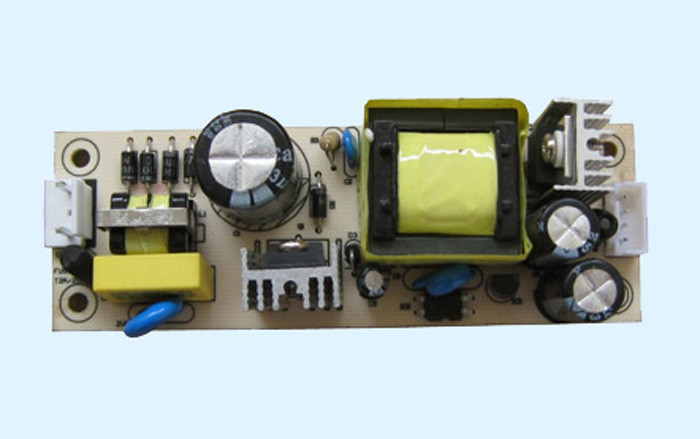

EN60950 Open Frame Switching Power Supply 5V 4A , Ripple And Noise 50mv

EN60950 Open Frame Switching Power Supply 5V 4A , Ripple And Noise 50mv

  • EN60950 Open Frame Switching Power Supply 5V 4A , Ripple And Noise 50mv
EN60950 Open Frame Switching Power Supply 5V 4A , Ripple And Noise 50mv
Product Details:
Place of Origin: China
Brand Name: HIC
Certification: ISO
Model Number: P050P4000
Payment & Shipping Terms:
Minimum Order Quantity: Negotiation
Price: Negotiation
Packaging Details: According to customer’s requirment
Delivery Time: 7-15days
Payment Terms: L/C T/T,Paypal
Contact Now
Detailed Product Description
High Light:

universal power adapter

,

universal power ac adapter

EN60950 Open Frame Switching Power Supply 5V 4A , Ripple And Noise 50mv



Feature:



. Universal AC Input

. No Load Consumption < 0.3W

. Protections: Overload, Short Circuit

. Low Cost, High Reliability

. 2 Years Warranty





Description:



5V4A open frame power supply customized power supply small size

Electronics Specification :

Input Voltage Range:

90~264Vac

AC current:

0.7A

Frequency:

50/60Hz

Inrush Current:

30A/230Vac

Leakage Current:

0.25mA/240Vac

Output Voltage:

5.0~36.0Vdc

Voltage tolerance:

±5%

Line regulation:

±1%

Load regulation:

±5%

Efficiency:

Meet energy star level V(CEC)

Over current protection:

Hiccup mode, Auto recovery

Over voltage protection:

Power shutdown, Auto recover

Environment :

Working Temp.:

0~40℃

Working Humidity:

20%~90% RH non-condensing

Storage Temp. & Humidity:

-20℃~85℃, 10%~95% RH

Reliability :

Hi-Pot Testing Voltage :

I/P to O/P : 3.0 (60Sec.) KVac

Safety Standard :

EN60950

EMI Standard :

EN55022B

Safety Approval :

Certificate

CE , REACH , ROHS

Mechanical Characteristics :

PCB Size:

65mm*40mm*32mm (L*W*H)

AC connector

VH-2,Pin=3.96mm

DC connector:

WH-4,Pin=2.54mm





Output Data



Model No.

Voltage

Current range

Ripple & Noise

Eff.

P050P4000

5.0V

0.1~4.0A

50mV

>72%

P060P4000

6.0V

0.1~4.0A

60mV

>72%

P075P3000

7.5V

0.1~3.0A

75mV

>72%

P090P2600

9.0V

0.1~2.6A

90mV

>72%

P120P2000

12.0V

0.1~2.0A

120mV

>80%

P150P1600

15.0V

0.1~1.6A

150mV

>80%

P190P1250

19.0V

0.1~1.25A

190mV

>80%

P200P1200

20.0V

0.1~1.2A

200mV

>80%

P240P1000

24.0V

0.1~1.00A

240mV

>80%

P320P0740

32.0V

0.1~0.74A

320mV

>80%

P360P0670

36.0V

0.1~0.67A

360mV

>80%





Applications:



widely used in household appliances, IT digital products,  medical equipments, communication equipments, instrumentations, bank data equipment, computer peripheral products, security monitoring system, industrial and light field equipment and other products.
