| Place of Origin: | China |
| Brand Name: | Meanwell |
| Certification: | CE,ROHS, TUV, UL |
| Model Number: | APC-25 Single Output LED Power Supply |
| Minimum Order Quantity: | Negotiable |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Export Standard Packaging |
| Delivery Time: | 5-7 work days after receiving deposit |
| Payment Terms: | Ex works |
| Supply Ability: | 30000pcs/month |
| WORKING TEMP.: | -30 ~ 70℃ | VIBRATION: | 10 ~ 500Hz, 2G 10min./1cycle, Period For 60min. Each Along X, Y, Z Axes |
|---|---|---|---|
| STORAGE TEMP., HUMIDITY: | -40 ~ +80℃, 10 ~ 95% RH | TEMP. COEFFICIENT: | ±0.2%/℃ (0 ~ 50℃) |
| WORKING HUMIDITY: | 20 ~ 90% RH Non-condensing | SAFETY STANDARDS: | UL8750 (except For APC-25-350), CSA-C22.2 No. 250.0-13 (only For APC-25-700&1050) Approved; Design Refer To EN60950-1 |
| WITHSTAND VOLTAGE: | I/P-O/P:3KVAC | ISOLATION RESISTANCE: | I/P-O/P:>100M Ohms / 500VDC / 25℃/ 70% RH |
| High Light: | LED Light Power Supply,LED Light Driver |
||

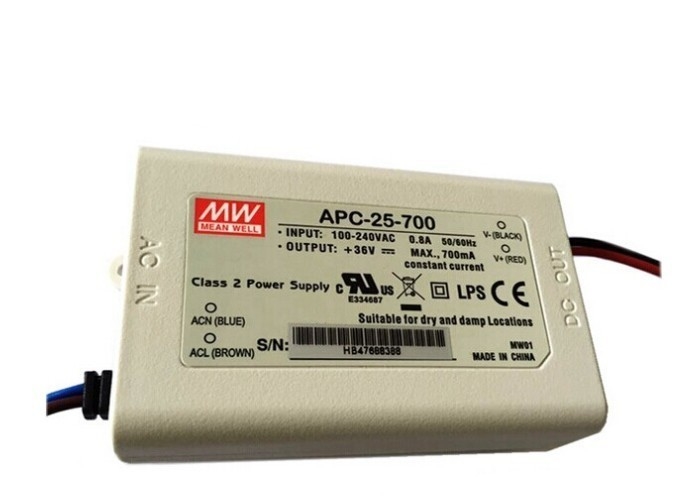

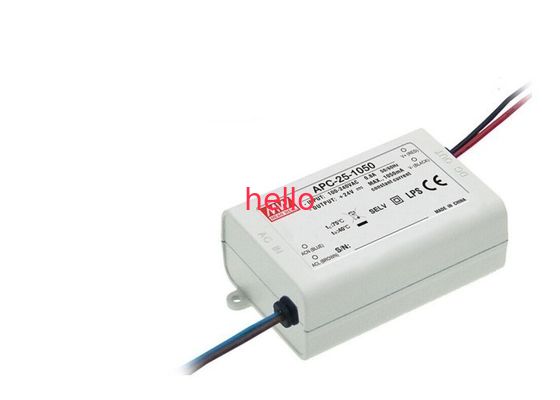

LED Power Supply Constant Current APC Series 20w LED Driver APC-25-700
AP Series Features (12-35w Single Output LED Power Supply):
1. Universal AC input / Full range
2. Fully isolated plastic case
3. Protections: Short circuit / Overload (APV only) / Over voltage
Constant voltage mode for APV series
Constant current mode for APC series
4. IP30 design
5. Withstand 300VAC surge input for 5 seconds (APV/C-25/35)
6. Class 2 power unit / Pass LPS (except for APC-25-350 & APC-35-350/500)
7. Isolation class II, no F.G.
8. Cooling by free air convection
9. 2100% full load burn-in test
10. Low cost, high reliability
11. Suitable for LED lighting and moving sign applications
12. 2 years warranty
APC-25 25W Single Output Switching Power Supply Features:
1. Constant current mode power supply
2. Universal AC input / Full range
3. Withstand 300VAC Surge input for 5 seconds
4. Protections:Short circuit / Over voltage
5. Fully isolated plastic case
6. Small and compact size
7. Cooling by free air convection
8. IP30 design
9. 100% full load burn-in test
10. Suitable for LED lighting and moving sign applications
11. Low cost / High reliability
12. 2 years warranty
AP Series Power Supplies:
APV Series:
Single Output LED Power Supply: APV-12 Series, APV-16 Series, APV-25 Series, APV-35 Series
APC Series:
Single Output LED Power Supply: APC-12 Series, APC-16 Series, APC-25 Series, APC-35 Series
Quick Details of APC-25 25W Single Output LED Power Supply:
| APC-25 Series (C.C. mode) | ||||
| Model No. | Output | Io Tol. | R&N | Effi. |
| APC-25-350 | 25~70V, 350mA | ±8% | 300mV | 83% |
| APC-25-500 | 15~50V, 500mA | ±8% | 300mV | 83% |
| APC-25-700 | 11~36V, 700mA | ±8% | 300mV | 83% |
| APC-25-1050 | 9~24V, 1050mA | ±8% | 300mV | 83% |
Specifications of AP-25:
| Model No. | APC-25/35 | |
| AC input voltage range | 90~264VAC ; 127~370VDC | |
| AC inrush current (max.) | Cold start, 45A at 230VAC | |
| Over voltage protection | 110%~145% rated output voltage | |
| Withstand voltage | I/P-O/P: 3kVAC | |
| Working temperature | -30~+70celsius (refer to output derating curve) | |
| Vibration |
10~500Hz, 2G 10 minutes /1 cycle, period for 60 minutes each along X, Y, Z axes |
|
| Safety standards | UL8750 approved (except for APC-25-350&APC-35-350/500); Design refer to TUV EN60950-1 |
|
| EMC standards | EN55022 class B, EN61000-3-2 class A, EN61000-3-3, EN61000-4-2,3,4,5,6,8,11 |
|
| Connection | Input | UL rated, 18AWGx2C (15cm) |
| Output | UL rated, 18AWGx2C (15cm) | |
| Dimension (LxWxH)(mm) | 84x 57x 29.5 | |
NOTE:
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. Derating may be needed under low input voltage. Please check the static characteristic for more details.
5. The power supply is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the
complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again.
6.The unit might not be suitable for lighting applications in EU countries. Please check with your local authorities for the possible use of the unit.
