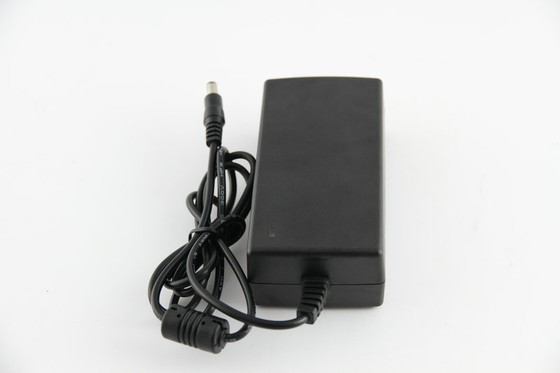

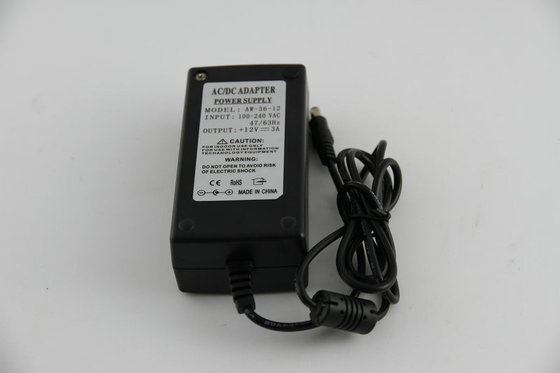

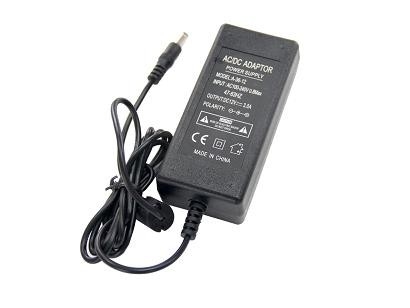

Name: EN55022 LED Lamp AC To 12V DC Power Adapter 36W Automatic Recovery , CE / ROSH
Brand: Shenzhen Power Adapter Co.,Ltd.
SKU: A-36-12
Availability: InStock

Home Products Universal DC Power Adapter

EN55022 LED Lamp AC To 12V DC Power Adapter 36W Automatic Recovery , CE / ROSH

Product Details:

Place of Origin:	Shenzhen China
Brand Name:	DongDaHua
Certification:	CE & ROSH
Model Number:	A-36-12

Payment & Shipping Terms:

Packaging Details:	As for your requirement
Delivery Time:	As per your order quantity
Payment Terms:	T/T & L/C
Supply Ability:	8000 Pieces/Day

Contact Now

Detailed Product Description

Product Name:	AC DC Power Adapter	Input Voltage:	AC110V---220V
Input Frequency:	47-63Hz	Power:	36w
Output Voltage:	12V DC	Safety Standards:	GB4943, EN60950-1
Highlight:	International Power Adapter

Over-voltage Protection Switching AC DC Power Adapters 36W 12VDC 3A IP54 EN55022 Class A

Specifications:

Product Electric Parameters
Input specification	Input voltage		AC110V---220V
	Input frequency		47-63Hz
	Input surge		20A@120VAC 40A@230VAC
Output specification	Output voltage can be adjusted		±10%
	Start-up time		≦1S(input230V Io=100%)
	keep time		≧20mS (input230V, Io=100%)
	Voltage regulation		(Full load) ≦0.5%
Protection function	Overload protection		105% - 150% rated power, automatic recovery
	Over-voltage protection		105% - 150% of the rated voltage
Insulation intensity	Input---output		1500VAC/1min
	Input---ground		1500VAC/1min
	Input---ground		500VAC/1min
Safety standards	According with GB4943, EN60950-1 standards.
E M C standards	According with EN55022 class A EN61347-2-13:2008 standards
Environmental	working temperature	- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost)
	Storage temperature	- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost)
	height above sea level	≦2000M
Structure	Size (mm)	110(L)48(W)32(H)
Cooling method	Cooling method	Natural cooling air convection
Weight	0.212KG/PCS

EN55022 LED Lamp AC To 12V DC Power Adapter 36W Automatic Recovery , CE / ROSH

Application:

It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.

Competitive Advantage:

1.built-in EMI filter

2.100% load test

3.Full range of input voltage

4.output voltage accurate and stable

5.Output over-voltage, over-current and short-circuit protection

6.Output low ripple and noise

7.Two year warranty

8.Average working no trouble ＞50, 000 hours
