| Place of Origin: | Shenzhen,China |
| Brand Name: | RAYTOP |
| Certification: | CE, RoHS, FCC |
| Model Number: | RT-MPS-24030 |
| Minimum Order Quantity: | 100 PCS/ Model |
|---|---|
| Price: | Negotiable |
| Packaging Details: | White box/Master Carton |
| Delivery Time: | 15-20 working days after receiving deposit |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 200,000 Pcs monthly. |
| Product Name: | 24V 1.25A Metal Case Power Supply | Input: | 100-240Vac, 0.5A |
|---|---|---|---|
| Frequency: | 50/60Hz | Output: | 30W |
| Approval: | CE, RoHS, FCC | Size: | 15x8x4cm |
| Weight: | 105g | Protection: | SCP, OVP, OCP |
| High Light: | switching power supply adapter,constant current power supply |
||

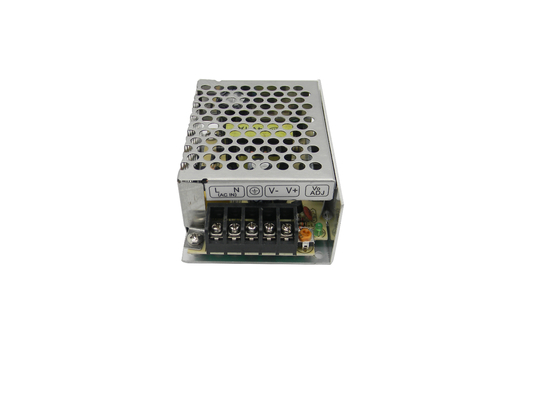

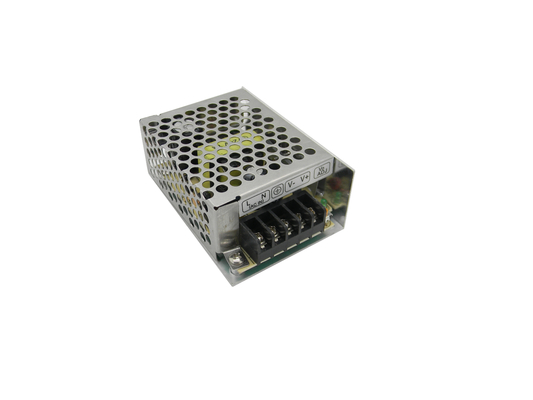

24V DC Output Metal Cased Switching Mode Power Supply 30W for Security CCTV Cameras
Descriptions:
Metal cased switching power supply 30W, input voltage 100-240V, 47~63Hz, 24V output voltage, 1.25 Amp current, in conformity with CE, RoHS, FCC certification. Generally used for LED/LCD display screen, medical equipment, security and protection industry etc.
Features:
1: Anti-jamming performance
2: Low opertating temperature, long serive life
3: Wide input voltage range,in line with global standard
4:suitable produces: LED and other industrial equipment
Specifications:
|
Input |
Rated Input Voltage |
AC100~240V |
|
Input Voltage Range |
AC 90~264V |
|
|
Rated Frequency |
50/60 Hz |
|
|
Input Frequency Range |
47~63 Hz |
|
|
Input AC Current |
0.5A |
|
|
Inrush Current |
Cold start 120A at100Vac, 60A at 240Vac. |
|
|
Output |
Rated Output Voltage |
DC24V±5% |
|
Rated Output Current |
1.25A |
|
|
Rated Power |
30W |
|
|
Ripple and Noise |
130mV p-p |
|
|
Turn-on |
50s @ full load(typical) |
|
|
Hold-up |
20s @ full load(typical) |
|
|
Over Voltage Protection |
Yes, 115%--135% |
|
|
Over Current Protection |
Yes, 130%-150% |
|
|
Short Circuit Protection |
Hiccup type, automatically recover after short circuit remove. |
|
|
Reliability |
Hi-pot |
1500Vac |
|
Leakage Current |
5mA/240VAC |
|
|
Withstanding Voltage |
I/P-O/P,I/P-FG: 1.5KVAC,O/P-FG:0.5KVAC,1 min |
|
|
Insulation Resistance |
Input and output internal: Input and enclosure, Output and enclosure:500VDC/100MΩ |
|
|
EMI Standards |
FCC Part 15B Class B |
|
|
RoHS Compliant |
Yes |
|
|
MTBF |
50,000 hours |
|
|
Burn-in |
40+/-5 ℃, full load, 4 hours |
|
|
Environmental |
Operating Temperature |
-10~60℃ |
|
Operating Humidity |
10~90% |
|
|
Storage Temperature |
-20~85℃ |
|
|
Storage Humidity |
0~95% |
|
|
Safety Approvals |
CE, RoHS,FCC |
|
|
Warranty |
2 Years |
|
Applications:
used for LED lights, CCTV security camera, LED Pannel etc.
Competitive Advantage:
- Open private model w/o extra cost for you;
- 0.3% free backup of order quantity;
- Direct factory price without middle man.
- High performance-to-price ratio;
- Perfect after-sale service
