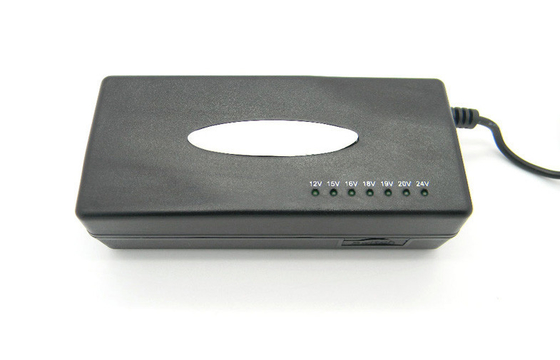

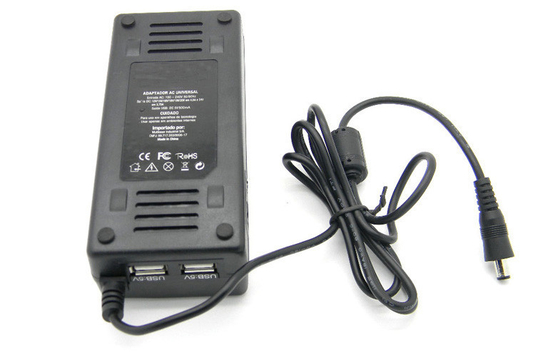

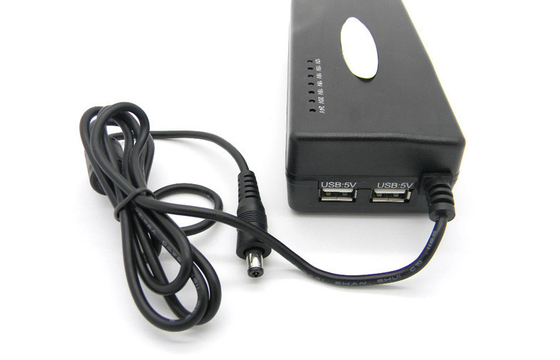

Replacement 24Vdc AC To DC Power Adapter Dual USB 90W With LED lights

Replacement 24Vdc AC To DC Power Adapter Dual USB 90W With LED lights

  • Replacement 24Vdc AC To DC Power Adapter Dual USB 90W With LED lights
  • Replacement 24Vdc AC To DC Power Adapter Dual USB 90W With LED lights
  • Replacement 24Vdc AC To DC Power Adapter Dual USB 90W With LED lights
  • Replacement 24Vdc AC To DC Power Adapter Dual USB 90W With LED lights
  • Replacement 24Vdc AC To DC Power Adapter Dual USB 90W With LED lights
Replacement 24Vdc AC To DC Power Adapter Dual USB 90W With LED lights
Product Details:
Place of Origin: Shenzhen,China
Brand Name: RAYTOP
Certification: CE, RoHS, FCC
Model Number: ET1600400C
Payment & Shipping Terms:
Minimum Order Quantity: 3K
Price: Negotiable
Packaging Details: Gift box or blister package,20 pcs per carton, customer package available.
Delivery Time: 15-20 work days.
Payment Terms: T/T, L/C
Supply Ability: 30000 Pcs monthly.
Contact Now
Detailed Product Description
AC Cable: 1.2M Application: Acer, Asus, Liteon, Gateway, IBM, Lenovo, HP, Delta, Sony, Toshiba
Approval: CE, FCC, SAA, RoHS, UL DC Cable: 1.2M
EMI Standards: FCC Part 15B Input: AC100-240V
Output Power: 90W Plug: EU, US, UK, SAA, CCC
Product Name: Universal Laptop Power Adapter Protection: Short Circuit, Over Voltage, Over Current
Operating Temperature: 0~40℃
High Light:

Switching mode power adapter

,

ac to dc power supply



Replacement 24Vdc AC To DC Power Adapter Dual USB 90W With LED lights





Quick Detail:



Universal laptop adapter 90W, manual output voltage DC 12/15/16/18/19/20/24V, with 2 USB port, each interface output 5V, 1A. The adapter can charge small electronic devices simultaneously when it charge laptops.





Specs:



Input: AC100-240V, 1.8A max.

Output: DC12/15/16/18/20/24V, 3.75A

Power Cord:

AC Cable: 2x0.75mm2, or 3x0.75mm2 length: 1.2M

DC Cable: 18AWG, Copper, length: 1.2M

AC Plug: EU, UK, US, SAA, CCC





Features:



-Worldwide input voltage 100~240Vac;

-High efficiency, up to 82%;

-Protection: Short circuit protection, over voltage protection, over current protection.

-8 different output connectors for top brands laptops.

-MTBF: 50,000 hours.





Approval: CE, RoHS, FCC

Warranty: 2 years

Contents: 1 Adapter + 1AC Cable+1DC Cable +8 Connectors





Description:



This is an universal laptop AC Adapter come with unique design and 8 exchangeable tips, have great compatibility with most top brand notebooks, such as Acer, Asus, Toshiba, Sony, Delta, HP/Compaq, Lenovo, IBM,Gateway, Liteon etc. The users can adjust the slider on the side of the adapter to get different output voltage 12/15/16/18/19/20/24V. The adapter has compact design and high efficiency, very easy to carry and can charge your laptops quickly on going.

Note: please select correct output voltage before connecting the adapter with your laptops.





Applications:



External power supply, used to charge most top brand laptops/notebooks, such as Acer, Asus, Toshiba, Sony, Delta, HP/Compaq, Lenovo, IBM,Gateway, Liteon etc. It can make the laptops continue working even the battery exhausted.





Specifications:



Input

Rated Input Voltage

AC100~240V

Input Voltage Range

AC 90~264V

Rated Frequency

50/60 Hz

Input Frequency Range

47~63 Hz

Input AC Current

1.8A

Inrush Current

30A

Output

Rated Output Voltage

DC 12~24V

Output Voltage

DC12/15/16/18(18.5)/19(19.5)/20(21)/24V

Rated Output Current

3.75A

Rated Power

90W

Ripple and Noise

120mV p-p

Standby Power Consumption

0.5W

Turn-on

5s

Hold-up

20s

Over Voltage Protection

Yes

Over Current Protection

Yes

Short Circuit Protection

Yes, automatically recover after short circuit removed.

Reliability

Hi-pot

3000Vac

Insulation Resistance

Input to output at 500Vdc

Leakage Current

5mA

EMI Standards

FCC Part 15B Class B

RoHS Compliant

Yes

MTBF

50,000 hours

Burn-in

40+/-5 ℃, full load, 4 hours

Drop Test

6 direction, each one time from height 1.0M

Environmental

Operating Temperature

0~40℃

Operating Humidity

10~80%

Storage Temperature

-20~65℃

Storage Humidity

0~90%

Safety Approvals

CE, RoHS, FCC, UL, SAA

Warranty

2 Years





Competitive Advantage:



-Open private model w/o extra cost for you;

-0.3% free backup of order quantity;

-Direct factory price without middle man.

-High performance-to-price ratio;

-Perfect after-sale service
