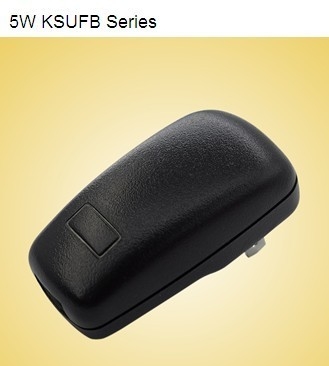

5W Universal USB Power Adapter 100-240V 50 60HZ for Mobile Device

5W Universal USB Power Adapter 100-240V 50 60HZ for Mobile Device

  • 5W Universal USB Power Adapter 100-240V 50 60HZ for Mobile Device
5W Universal USB Power Adapter 100-240V 50 60HZ for Mobile Device
Product Details:
Place of Origin: Guangdong,China
Certification: CB , GS , CE , UL , CCC , FCC,C-TICK,PSE,KC
Model Number: 5W KSUFB Series
Payment & Shipping Terms:
Minimum Order Quantity: 1000pcs
Price: Negotiable
Packaging Details: As per customers' requirement
Delivery Time: 30 days
Payment Terms: T/T, Negotiable for OEM
Supply Ability: 1Million/Month
Contact Now
Detailed Product Description
High Light:

Universal Power Adapters

,

Power AC Adapter



5W Universal USB Power Adapter 100-240V 50 60HZ for Mobile Device

Quick Detail:

1. 5W KSUFB Series

2. voltage from 2.8V to 12V

3. current from 0.05A to 1A

Input: •Input Voltage:  90 to 264 VAC
•Frequency  :    47-50/60-63hz
•Input current : 0.15A (Max) 100 /240VAC
•Inrush current :50 A Max. 100VAC at max. Load
                 60A Max.240VAC at max. Load
Output: •Over voltage protection
•Over current protection
•at 110-200% of lo and Auto-recovery
•Electronic short circuit protection
•Operating temperature 0~40℃ Free convection
•Operating humidity 10-90% RH Non Condensing
•Sea level Non-operating temperature -20~ 80℃
Safety standards: •Information technology equipment
•IEC/EN 60950-1, UL 60950-1, CSA C22.2
•No. 60950-1-03
•IEC/EN 60065, UL 60065,GB4943,K60950
Certificates and approvals: •CB , GS , CE  , UL , CCC , FCC,C-TICK,PSE,KC
EMI Emission: •Radiation Test&Conduction Test: EN 55022/FCC Part 15
•Harmonic Test:EN 61000-3-2
•Flicker  Test:EN 61000-3-3
EMS immunity: •ESD   Test:EN 61000-4-2
•RS    Test:EN 61000-4-3
•EFT   Test:EN 61000-4-4
•Surge Test:EN 61000-4-5
•CS    Test:EN 61000-4-6
•DIP   Test:EN 61000-4-11
Key Applications: Key Features of KSUFB series

•Light, extra slim, sleek, compact design
•Green power, full complies with CEC level V, MEPS V EUP2011
•High power density
•Extra safe design, have got their respective safety approvals
•Completed protect function

Key Applications of KSUFB series

It’s suitable for an extremely wide range of applications, including:
•Mobile Devices
•Set-top-box
•ADSL
•Audio & Video product
•Household appliance
•Charger
Payment Details: •Payment Terms: T/T,negotiable for OEMs
Main Export Markets: • Eastern Europe
• North America
• Mid East/Africa
• Central/South America
• Asia
• Western Europe
• Australasia

5W Universal USB Power Adapter 100-240V 50 60HZ for Mobile Device 0

5W Universal USB Power Adapter 100-240V 50 60HZ for Mobile Device 1

5W Universal USB Power Adapter 100-240V 50 60HZ for Mobile Device 2
