Home ProductsUniversal USB Power Adapter

AC100 - 240V Portable Universal Usb Charger High Efficency CCC Plug

AC100 - 240V Portable Universal Usb Charger High Efficency CCC Plug

  • AC100 - 240V Portable Universal Usb Charger High Efficency CCC Plug
  • AC100 - 240V Portable Universal Usb Charger High Efficency CCC Plug
  • AC100 - 240V Portable Universal Usb Charger High Efficency CCC Plug
AC100 - 240V Portable Universal Usb Charger High Efficency CCC Plug
Product Details:
Place of Origin: Shenzhen,China
Brand Name: RAYTOP
Certification: CE, RoHS, FCC
Model Number: ETU050100-3
Payment & Shipping Terms:
Minimum Order Quantity: 1000 Pieces
Price: Negotiable
Packaging Details: PE Bag/ Color Box/White Box, Master Carton
Delivery Time: 15-20 work days.
Payment Terms: T/T, L/C
Supply Ability: 500,000 Pcs
Contact Now
Detailed Product Description
Application: IPhone 4g/4s|IPhone 5g/5s Approval: CE RoHS FCC UL
EMI Standards: FCC Part 15B Feature: High Efficency
Input: AC100-240V Operating Temperature: 0~40℃
Plug: US|SAA|CCC Product Name: USB Power Adapter
Protection: SCP|OVP|OCP
High Light:

portable universal usb charger

,

portable usb travel charger

AC100 - 240V Portable Universal Usb Charger High Efficency CCC Plug





Quick Detail:



 -Output Voltage& Current : USB 5V, 1.0A;

 -Input Voltage: AC100-240V, 50/60Hz;

 -Cable and different connectors configuration for choice.

 -Efficiency: ≥85%;

 -Operating temperature: 0 ~ 40°C;

 -Storage temperature: - 20°C to 70°C;

 -Protection: SCP/OVP/OCP;

 -UL/CUL certified.

 -2 Year Warranty



Applications:



Compatible with Apple mobile phone, iPhone, iPod, MP3, MP4 PDA etc.



Description:

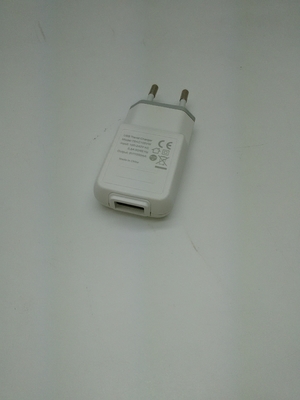

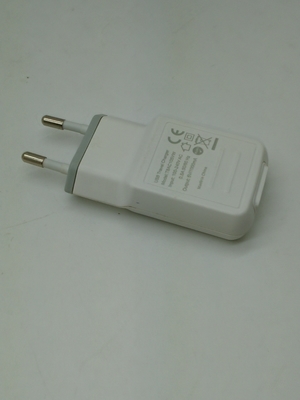

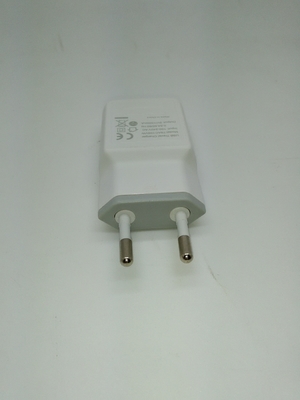

USB power adapter, 5V, 1.0A, mini size, special usage for Apple mobile phone.





Specifications:



Input

Rated Input Voltage

AC100~240V

Input Voltage Range

AC 90~264V

Rated Frequency

50/60 Hz

Input Frequency Range

47~63 Hz

Input AC Current

100mA

Inrush Current

30A

Output

Rated Output Voltage

DC5V

Output Voltage

DC5V+/-0.5V

Rated Output Current

1.0A

Rated Power

Max.5W

Ripple and Noise

150mV p-p

Standby Power Consumption

0.3W

Turn-on

5s

Hold-up

20s

Over Voltage Protection

Yes

Over Current Protection

Yes

Short Circuit Protection

Yes, automatically recover after short circuit removed.

Reliability

Hi-pot

3750Vac

Insulation Resistance

Input to output at 500Vdc

Leakage Current

5mA

EMI Standards

FCC Part 15B Class B

RoHS Compliant

Yes

MTBF

50,000 hours

Burn-in

40+/-5 ℃, full load, 12 hours

Drop Test

6 direction, each one time from height 1.0M

Environmental

Operating Temperature

0~40℃

Operating Humidity

10~80%

Storage Temperature

-20~65℃

Storage Humidity

0~90%

Safety Approvals

CE, RoHS, FCC, UL, SAA

Warranty

2 Years





Competitive Advantage:



-Open private model w/o extra cost for you;

-0.3% backup of order quantity freely;

-Direct factory price without middle man.

-High performance-to-price ratio;

-Perfect after-sale service.
