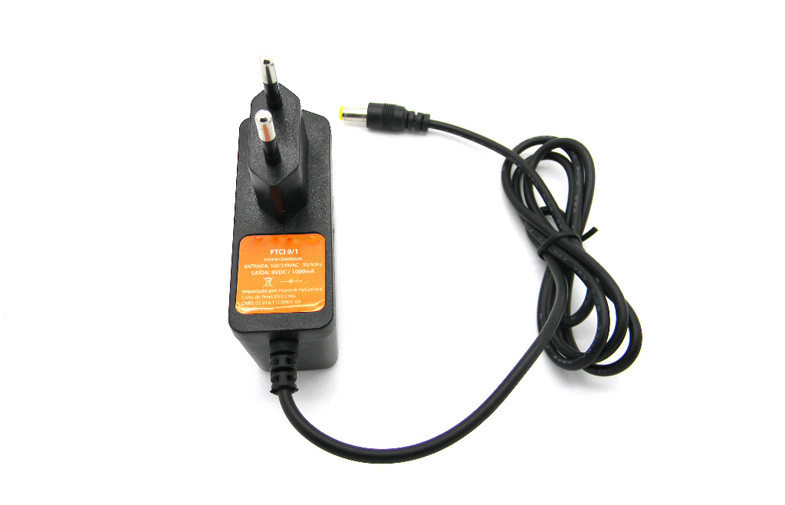

AC To DC Wall Mount Power Adapter 9V 1A Over Voltage For Router , 100-240Vac

Product Details:

Place of Origin:	Shenzhen,China
Brand Name:	RAYTOP
Certification:	CE, RoHS, FCC
Model Number:	ET0900100

Payment & Shipping Terms:

Minimum Order Quantity:	2K
Price:	Negotiable
Packaging Details:	PE Bag, Master Carton, Customer package available.
Delivery Time:	15-20 work days.
Payment Terms:	T/T, L/C
Supply Ability:	200,000 Pcs monthly.

Contact Now

Detailed Product Description

AC Cable:	1.2M	Application:	Router
Approval:	CE\|RoHS\|FCC\|UL\|SAA	Cable Material:	Copper
DC Cable:	1.2M	EMI Standards:	FCC Part 15 Class B
Frequency:	50Hz / 60Hz	Input:	100-240Vac
Operating Temperature:	0~40℃	Output:	9V 1A
Output Power:	9W	Plug:	EU\|US\|SAA
Product Name:	Wall Mount Power Adapter	Protection:	Short Circuit\|Over Voltage\|Over Current
High Light:	ac to dc power converter , wall plug adapter

AC To DC Wall Mount Power Adapter 9V 1A Over Voltage For Router , 100-240Vac

Quick Detail:

Switching mode power adapter, DC9V 1000mA, wall mount adapter, EU plug, in conformity with CE, RoHS, FCC.

Specs:

Input: AC100-240V, 1.2A max.

Frequency: 50/60Hz

Output: DC9V, 1000mA

DC Cable: 22AWG, Copper, length: 1.2M

Plug: EU

Features:

-High efficiency:>82%;

-Protection: Short circuit protection, over voltage protection, over current protection.

-MTBF: 50,000 hours.

Approval: CE, RoHS, FCC

Warranty: 2 years

Description:

This is an universal laptop AC Adapter come with single output tip 5.5x2.1x10mm. It has high efficiency as well as steady performance. The tip size and plug type can be changeable.

Note:

Use indoor only.

Applications:

used for cordless phone, sphygmomanometer,repeater etc.

Specifications:

Input	Rated Input Voltage	AC100~240V
	Input Voltage Range	AC 90~264V
	Rated Frequency	50/60 Hz
	Input Frequency Range	47~63 Hz
	Input AC Current	0.2A
	Inrush Current	30A
Output	Rated Output Voltage	DC9V
	Rated Output Current	1000mA
	Rated Power	9W
	Ripple and Noise	120mV p-p
	Standby Power Consumption	0.3W
	Turn-on	5s
	Hold-up	20s
	Over Voltage Protection	Yes
	Over Current Protection	Yes
	Short Circuit Protection	Yes, automatically recover after short circuit removed.
Reliability	Hi-pot	3000Vac
	Insulation Resistance	Input to output at 5Vdc
	Leakage Current	5mA
	EMI Standards	FCC Part 15B Class B
	RoHS Compliant	Yes
	MTBF	50,000 hours
	Burn-in	40+/-5 ℃, full load, 12 hours
	Drop Test	6 direction, each one time from height 1.0M
Environmental	Operating Temperature	0~40℃
	Operating Humidity	10~80%
	Storage Temperature	-20~65℃
	Storage Humidity	0~90%
Safety Approvals	CE, RoHS, FCC, UL, SAA
Warranty	2 Years
