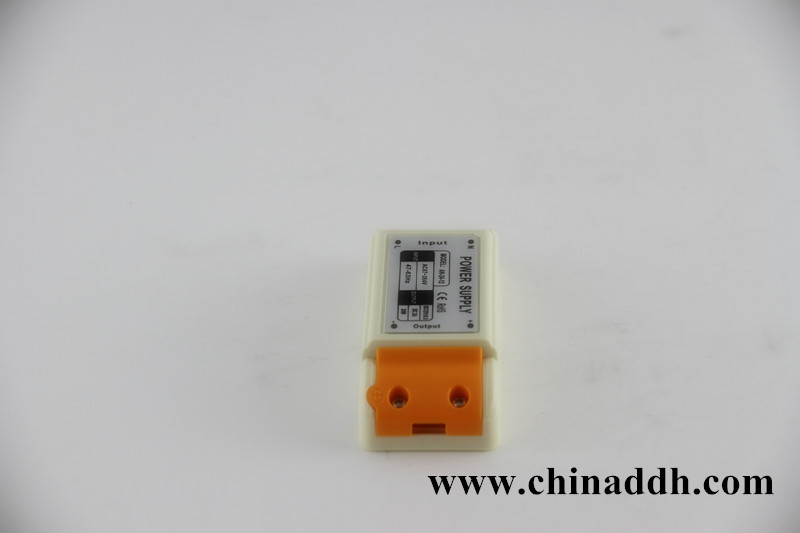

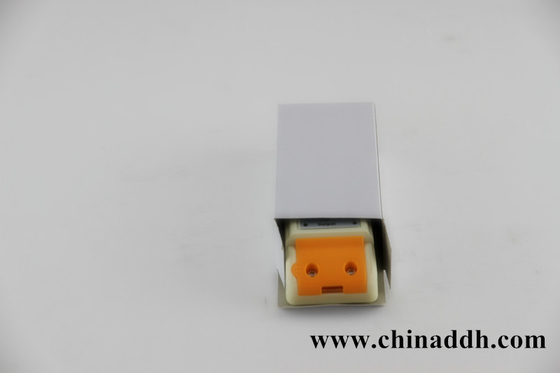

Plastic Case 24W Triac Dimmable LED Driver with Pfc>0.95



High Reliability Constant Voltage 24w Dimmable Led Driver With Pfc > 0.95



Quick detail:

1. 24W LED power supply

2. CE ROHS certificated

3. DC voltage: 12v

4. Output current: 2A

5. Size: 115*45*28mm(L*W*H)

6. Packing: 0.09kg/PCS;180PCS/16.22kg





Description:

1. 100% full-load aged

2. International broad voltage AC input

3. High efficiency, long life span, and high reliability

4. Protection: short-circuit, overload, overheat

5. Load adjustment: taken under 0~100% of rated load.



Specification:



Product No.		AN-24-5	AN-24-12	AN-24-24	AN-24-48
Output	DC voltage	5V	12V	24V	48V
	Capacity of current	4A	2A	1A	0.5A
	Range of current	0-4A	0-2A	0-1A	0-0.5A
	Power	20W	24W	24W	24W
	Noise max. 2	120mVp-p	150mVp-p	240mVp-p	250mVp-p
	Voltage adjustment	-	-	-	-
	Voltage accuracy 3	±2%	±1%	±1%	±1%
	Linear Adjustment 4	-	-	-	-
	Load adjustment 5	±1.5%	±0.5%	±0.5%	±0.5%
	Start and rise time	1000ms,30ms/230VAC
	Hold time (Typ)	50ms/230VAC
Input	Voltage range	AC 87-264V
	Frequency range	47-63HZ
	Efficiency (Typ)	75%	80%	82%	82%
	AC current (Typ)	0.36A/90V 0.15A/220V
	Surge current (Typ)	cold start:65A/230VAC
	Current leak	<2mA/240VAC
Protection	Overload	Greater than 105% of capacity
		Protection mode: hiccup, automatic restoration after abnormity removed
	Overvoltage
	Overheat
Environment	Working temp.	-20～+60℃(see tenuation curve)
	Working humidity	20～90% RH,without condense
	Storage temp & hmdty	-40～+80℃
	Temp. coefficient	±0.03%/℃ (0～50℃)
	Vibration proof	10～500Hz, 5G 10min / cycle,X,Y,Z axes 60 min each
Safety reg. & EMC	Safety regulation	GB195110.1-2004/IEC61347-1:2003 CE(EMC+LVD)
	Voltage proof	I/P-O/P:1.5KVAC
	insulation resistance	I/P-O/P:100M Ohms/500VDC/25℃/70% RH
	EMC irradiation	EN 55015:2006;EN61000-3-2:1995+A2:2005
	EMC disturbance proof	EN 61000-3-2:2006;
	Dimensions	115*45*28mm(L*W*H)
	Packing	0.09kg/PCS;180PCS/16.22kg



Competitive Advantage:

1. Using low voltage (12DC), reliable performance

2. Output low ripple and noise

3. Super bright top LED

4. Two year warranty

5. Average working no trouble ＞50, 000 hours



Plastic Case 24W Triac Dimmable LED Driver with Pfc>0.95
