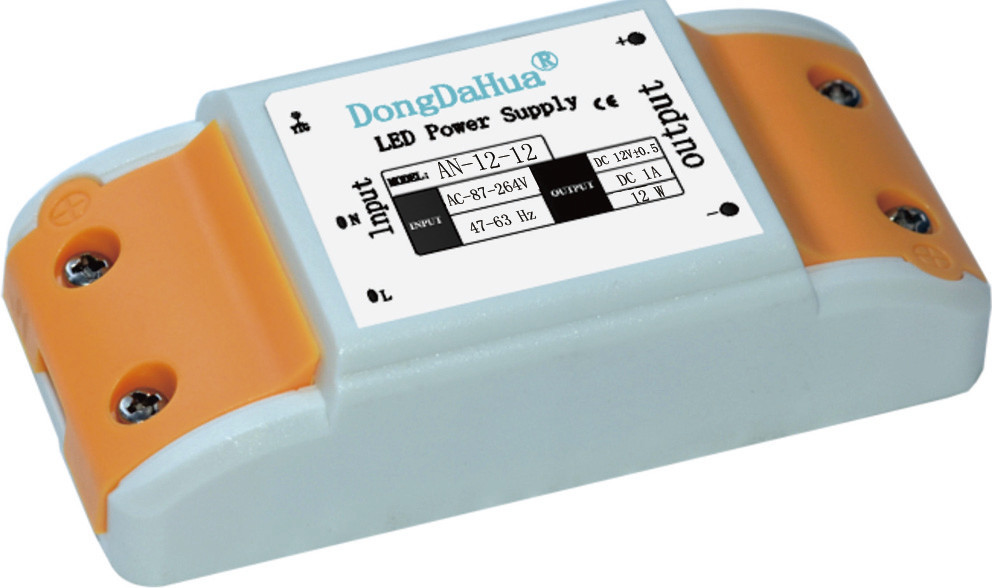

12W 1A No-waterproof Plastic case LED power supply/led driver



1A Non Waterproof Constant Voltage Led Power Supply 12w With Plastic Case



Quick detail:



1. Plastic case LED power supply

2. DC voltage: 12v

3. Output current: 1A

4. Size: 80*32*22mm(L*W*H)

5. Packing: 0.06Kg/PCS;216PCS/13kg

6. CE ROHS certificated



Description:



1. International broad voltage AC input

2. Protection: short-circuit, overload, overheat

3. 100% full-load aged

4. High efficiency, long life span, and high reliability

5. Load adjustment: taken under 0~100% of rated load.





Product Electric Parameters:



c		AN-12-5	AN-12-12	AN-12-24	AN-12-48
Output	DC voltage	5V	12V	24V	48V
	Capacity of current	2A	1A	0.5A	0.25A
	Range of current	0-2A	0-1A	0-0.5A	0-0.25A
	Power	10W	12W	12W	12W
	Noise max. 2	120mVp-p	150mVp-p	240mVp-p	250mVp-p
	Voltage adjustment	-	-	-	-
	Voltage accuracy 3	±2%	±1%	±1%	±1%
	Linear Adjustment 4	-	-	-	-
	Load adjustment 5	±1.5%	±0.5%	±0.5%	±0.5%
	Start and rise time	1000ms,30ms/230VAC
	Hold time (Typ)	50ms/230VAC
Input	Voltage range	AC 87-264V
	Frequency range	47-63HZ
	Efficiency (Typ)	75%	80%	82%	82%
	AC current (Typ)	0.18A/90V 0.08A/220V
	Surge current (Typ)	cold start:65A/230VAC
	Current leak	<2mA/240VAC
Protection	Overload	Greater than 105% of capacity
		Protection mode: hiccup, automatic restoration after abnormity removed
	Overvoltage
	Overheat
Environment	Working temp.	-20～+60℃(see tenuation curve)
	Working humidity	20～90% RH,without condense
	Storage temp & hmdty	-40～+80℃
	Temp. coefficient	±0.03%/℃ (0～50℃)
	Vibration proof	10～500Hz, 5G 10min / cycle,X,Y,Z axes 60 min each
Safety reg. & EMC	Safety regulation	GB195110.1-2004/IEC61347-1:2003 CE(EMC+LVD)
	Voltage proof	I/P-O/P:1.5KVAC
	insulation resistance	I/P-O/P:100M Ohms/500VDC/25℃/70% RH
	EMC irradiation	EN 55015:2006;EN61000-3-2:1995+A2:2005
	EMC disturbance proof	EN 61000-3-2:2006;
	Dimensions	80*32*22mm(L*W*H)
	Packing	0.06Kg/PCS;216PCS/13kg

Competitive Advantage:



1. Using low voltage (12DC), reliable performance

2. Output low ripple and noise

3. Super bright top LED

4. Two year warranty

5. Average working no trouble ＞50, 000 hours
