Ultra CCTV Camera Module
Product Details:
Place of Origin: Japan
Brand Name: Watec
Model Number: WAT-902H2
Payment & Shipping Terms:
Minimum Order Quantity: 1pcs
Delivery Time: 7days
Payment Terms: T/T,PAYPAL
Supply Ability: 300pcs / month
Contact Now
Detailed Product Description
Pick-up Element: 1/3" Interline Transfer CCD Image Sensor Resolution (H): 570TVL
Minimum Illumination: 0.0001lx F1.4 Size: 35.5×36×58 Mm
Weight: 98g Signal System: EIA , CCIR
High Light:

smallest camera module

,

Monochrome Camera Module

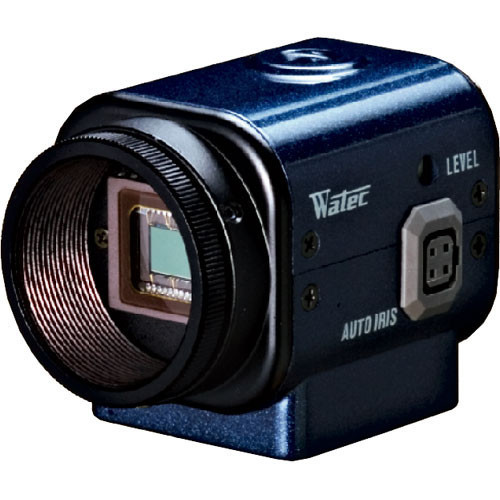

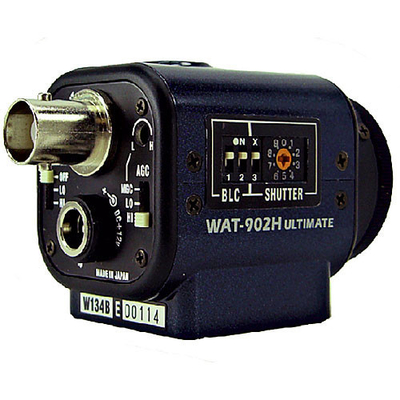

Ultra Compact Watec WAT-902H2 ULTIMATE 1/2 CCD 570TVL B/W CCTV Camera Module





Competitive Advantage :

*  Ultra Compact & Lightweight Body
    With a total length of about 2.5" and weighing less than 4 ounces, this is one of the smallest and lightest full featured CCTV box cameras available on the market.

*  Extreme Low Light Sensitivity
    The combination of a 1/2" CCD, powerful picture controls and an auto iris function allow the camera to produce visible images in light levels as low as 0.0001 lux.





Description:



The Watec WAT-902H2 ULTIMATE 1/2" Super High Sensitivity Monochrome Camera offers super high sensitivity (near IR) and high resolution in an ultra compact camera.
For the ULTIMATE models, Watec WAT-902H2 redesigned the base platform of the 902 series cameras to include higher sensitivity, better S/N ratios, more versatile shutter speed control, and fully adjustable camera functions--including manual gain control and manual back-light compensation.



Features:

*  1/2" IT CCD
*  Resolution: 570 TVL
*  Min. Illumination: 0.0001 Lux @ F1.4, 0.000033 Lux @ F0.8
*  Near IR sensitivity
*  Fully adjustable camera functions - MGC and manual BLC
*  Auto Iris connection & BNC connection
*  Multi-functions: Back light compensation, AGC, shutter speed control, flickerless mode, electronic iris, iris level control
*  Compact and Lightweight: 3.5 oz. (98g)
*  CS lens mount
*  Minimum Illumination (Lux): 0.0003Lux F1.4 (AGC: High),
*  Automatic automatic gain control (dB) High :5-50 Low5-32,
*  SNR (dB): 46,
*  Gradation characteristics: γ ≒ 0.45;
*  Watec WAT-902H2 good performance .



Specification:

Model WAT-902H2 ULTIMATE (EIA) WAT-902H2 ULTIMATE (CCIR)
Pick-up element 1/2 inch interline transfer CCD image senso
Number of total pixels 811(H) × 508(V) 795(H) × 596(V)
Number of effective pixels 768(H) × 494(V) 752(H) × 582(V)
Unit cell size 8.4μm(H) × 9.8μm(V) 8.6μm(H) × 8.3μm(V)
Synchronizing system Internal
Scanning system 2:1 interlace
Video output Composite Video, 1Vp-p, 75ohms, unbalanced
Resolution (H) 570TVL (Center)
Minimum illumination 0.0001lx F1.4
S/N More than 50dB (AGC=5dB,γ=1.0)
AE mode Fixed 1/60, 1/100 sec. 1/50, 1/120 sec.
1/250, 1/500, 1/1000, 1/2000, 1/5000, 1/10000, 1/100000 sec
EI

1/60 - 1/100000 sec.

1/100 - 1/100000 sec.

1/50 - 1/100000 sec.

1/120 - 1/100000 sec.

AGC HI: 5 - 60dB / LO: 5 - 32dB
MGC 5 - 60dB
Gamma characteristics ≒0.35(HI) /γ≒0.45(LO) /γ=1.0(OFF)
Lens-iris Video / DC (EIAJ arrangement, Auto-select)
Back light compensation ON / OFF
Power supply DC+12V±10%
Power consumption 1.32W (110mA)
Operating temperature -10°C-+40°C
Storage temperature -30°C-+70°C
Operating / Storage humidity Less than 95% RH (Without condensation)
Lens mount CS mount
Weight Approx. 98g

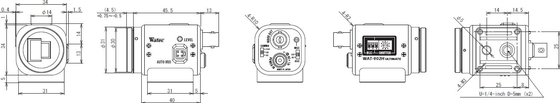

SizeW×H×L(mm) 35.5×36×58
