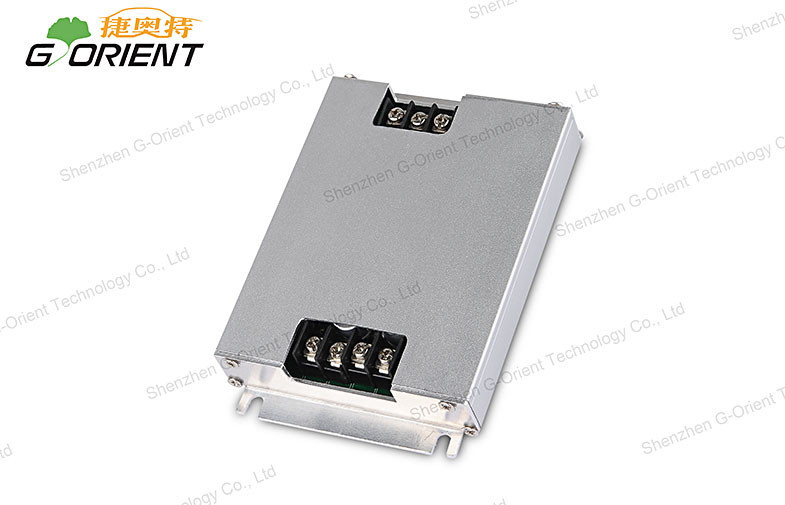

IP20 Aluminum metal shell Car LED Power Supply 100W for Taxi Bus Vehicle Screen

IP20 Aluminum metal shell Car LED Power Supply 100W for Taxi Bus Vehicle Screen

  • IP20 Aluminum metal shell Car LED Power Supply 100W for Taxi Bus Vehicle Screen
IP20 Aluminum metal shell Car LED Power Supply 100W for Taxi Bus Vehicle Screen
Product Details:
Place of Origin: China
Brand Name: G-ORIENT
Certification: ISO9001 / CE / ROHS / FCC
Model Number: NHD-100-5-A
Payment & Shipping Terms:
Minimum Order Quantity: 10pcs
Price: negotiable
Packaging Details: 20pcs/12Kgs / CARTONS
Delivery Time: 10 working days after received your payment
Payment Terms: T/T, Paypal, Western Union, L/C
Supply Ability: 50,000pcs per month
Contact Now
Detailed Product Description
High Efficiency: 94% Application: On-board Screen, Taxi LED Sign
Case Material: Metal, Aluminium Output Power: 100W
Input: 9-36V DC Output: 5V DC / 20A
Size: 120*80*18mm Warranty: 2 Years
High Light:

small power supply

,

screen power supply





IP20 Aluminum metal shell Car LED Power Supply 100W for Taxi Bus Vehicle Screen





Features:

* Input reverse connect protection

* High efficiency 94% & small size

* To prevent car screen flower screen, the splash screen and two horizontal line design

* Low output ripple and noise

* 2 years warranty

* Aluminum metal shell,natural cooling

* Through the EMC certification





Applications:

This power supply suitable for automobile,ship,electric cars,new energy products,LED electronic signs,car audio,and other energy-saving appliances stable power supply use.





Company Advantage:

1. Protection of your sales area,ideas of design and all your private information

2. Your inquiry related to our products or price will be replied in 24hrs

3. Top Quality+Reasonable Price+Responsible After Service=Successful & Win

4. OEM&ODM,any your customized lightings we can help you to design and put into product

5. Distributorship are offered for your unique design and some our current models





Specifications:

Switching power supply

 NHD100-5-A

 OUTPUT

DC Voltage

 5V

Current Range

 0~20A

Rated Current

 20A

Rated Power

 100W

Ripple & Noise(max.)

 <100mVp-p

Voltage set point accuracy

 +/- 3.0%Vo max

Over-current protection

 >120%io,hiccup

Line Regulation

 0.2%Vo max

Load Regulation

 0.2%Vo max

Short-circuit protection

 Hiccup

Hold up time

 >8mS

Overshoot and undershoot

 < +/- 5.0%

 INPUT

Voltage Range

 DC9-36V

Frequency Range

 BW=20MHz

Efficiency(Typ.)

 94%

DC Current

 <2.9A

Inrush Current(Typ.)

 100A at DC Cold start

Leakage Current

 Input-Output< 0.2mA ; Input-PG:<0.3mA

 Environment

MIBF

 >2 million hrs

Temp.Coefficient

 < 0.02%/℃

Storage Temperature range

 -55 ~ +115℃

Operaing board Temperature range

 -30 ~ +75℃

 Safety

Safety standards

 CE

Withstand Voltage

 DC40V







Competitive Advantage:

* CE / ROHS / FCC approval

* Output over-current,short-circuit,over-load,over-voltage protection

* Ultra-thin 18mm

* The two level output over voltage protection

* High efficiency up to 94%

* Low output ripple and noise
