PH10 DIP346 Outdoor Advertising LED Display with 1/4 Scan Constant Current

Product Details:

Place of Origin:	China
Brand Name:	ZCLED
Certification:	CE, FCC, ROHS
Model Number:	ZCLED--P10

Payment & Shipping Terms:

Minimum Order Quantity:	1sqm
Price:	USD 650-1050 per square meter
Packaging Details:	Woodencase package or flightcase package
Delivery Time:	8-25 working days
Payment Terms:	Western Union, T/T, L/C
Supply Ability:	3000sqm/month

Contact Now

Detailed Product Description

Pixels:	10mm	Pixel Configuration:	1R1G1B
Color Matching:	R:G:B/3:6:1	Display Capabilities:	Video, Text, Graphics, Etc
IP Rating (Front/Rear):	IP65/IP43	Panel Material:	Steel Or Aluminum
High Light:	outdoor led screen , led wall display

PH10 DIP346 Outdoor Advertising LED Display with 1/4 Scan Constant Current

Features

Using mature technical traditional DIP lamp, powerful heat dispersion ,high brightness and good consistency,showing vivid video. The selection of excellent IC and controlling system of Q-Color can guarantee the exquisite displaying effects. Minimum viewing distance is about 10m.

Product details:

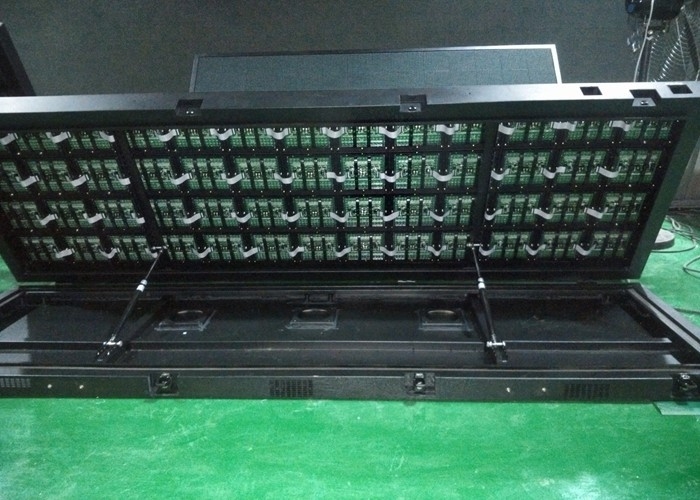

DIP Cabinet

P10mm DIP 346 Full Color Outdoor Led Screens IP65 with 160*160mm Module and Vertical 140°

Parameter	ZCLED-P10
LED lamp	DIP 346
Pixel pitch (mm)	10
Pixel density(pixel/sq.m)	10000
Pixel configuration	1R1G1B
Driving mode	¼ scan
Module size (mm ,w x h)	160*160
Resolution(WxH)	16*16
Viewing angle(° )	Vertical140° Horizontal140°
Optimum viweing distance(m)	10+
Gray scale (bit)	≥12
Brightness(cd/m2)	≥7500
Refresh rate(hz)	≥800HZ
Power supply	5V,DC
Lifespan(hrs)	100,000＞lifespan＞40,000
Cabinet size(mm,wxh)	960*960
Cabinet resolution(wxh)	96*96
Cabinet material	Metal/Aluminum
Colors	Black computer grey Sony grey
Maintenance mode	Front/rear maintenance
Ingress protection	IP65
Cabinet power supply	110-220V(+-10%),AC, 50hz/60hz
Power consumption(w)	Max700w/sqm Avg 210w/sqm
Working temperature( ℃ )	-30~50
Storing temperature( ℃ )	-40~80
Evaluated weight(kg/m2)	Fe: 60 Al: 45
Communicate signal	Twisted-pair(network)
