High-frequency Single Phase UPS Uninterruptible Power Supply Battery 20k 3KVA / 2.4KW

High-frequency Single Phase UPS Uninterruptible Power Supply Battery 20k 3KVA / 2.4KW

  • High-frequency Single Phase UPS Uninterruptible Power Supply Battery 20k 3KVA / 2.4KW
High-frequency Single Phase UPS Uninterruptible Power Supply Battery 20k 3KVA / 2.4KW
Product Details:
Place of Origin: Shenzhen China
Brand Name: EYEVISON
Certification: CE FCC RoHS
Model Number: HP1103KS
Payment & Shipping Terms:
Minimum Order Quantity: 10
Packaging Details: Color package
Delivery Time: 7-10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100000 per year
Contact Now
Detailed Product Description
High Light:

high power ups

,

ups replacement battery



High-frequency Single Phase UPS Uninterruptible Power Supply Battery 20k 3KVA / 2.4KW





Functional features:



1. Breakthrough ultra compact design and high power density,  equipment volume are smaller 20% ~ 70% than the same type product.

2. Double conversion on-line design, ensure the power supply reliability.

3. The super wide input voltage/frequency range,to adapt the severe power grid environment.

4. LCD display,  in order to more directly and conveniently for setup.

5. input voltage range:120 ~ 288 v, output not derating, greatly reduce the probability of transfer cells, improve the battery life.

6. Strong overload capacity: within nominal voltage ,overload 130% for 10 minutes, 150% for 1 minute, meet the customer load requirements.

7.8 A lead charging ability, the ability of charging can be set up, meet the long time delay battery recharge quickly, improve the battery life

8. Excellent environmental protection, energy saving features, efficiency of 3-4% higher than the same products at the same time can be as high as 91%.

9. Rich monitoring management option, improve system reliability.





Description:



HP series on-line series is the product that has strong adaptability and flexible configuration, adopt double conversion pure architecture, design, can provide a good solution when voltage too high or too low, transient voltage drop or damped oscillation, high voltage pulse, voltage fluctuation, surge voltage, harmonic distortion and noise disturbance, such as frequency rate fluctuation condition,so as to ensure the safe and reliable power supplies for user load ; With the advanced DSP digital control technology; Effectively improve the product performance and system reliability and achieve higher power density of integration miniaturization. At the same time in order to meet the personalized needs for users in all directions, high-frequency series 1 k - on-line 20 k provides a very rich extensible function, according to requirement, users can to be flexible configuration.





Technical specifications and parameters:



model

HP1103KS

capacity

3KVA/2.4KW

phase number

Single phase



output

voltage range

115-300VAC

frequency range

47~53Hz or 57~63Hz

power factor

≥0.99@ nominal voltage(100%load)



output

output voltage

220/230VAC±1%

frequency range

Synchronization with input(AC) 50Hz±0.2Hz or 60Hz±0.2Hz(battery mode)

power factor

0.8

switching time

0ms

output waveform

pure sine wave

overload capacity

load<105%,long-time running,105%< load <125%>1min,125%<load<30ms



battery

battery model (standard machine)

12V9AH×6

Dc voltage(Long-acting machine)

96VDC

Size(standard machine)

190*433*318

size(Long-acting machine))

400*190*340



operating environment

humidity

20-90%RH@0-40℃ (Non-condensate)

Noise

<45dBA@1Meter



control supervisor

Smart RS-232/ select USB

support Windows ® 2000/2003/XP/Vista/2008

selectSNMP

Power management support SNMP management and network management





Application:



Servers, storage, network equipment, communications equipment, automation equipment, precision instruments, medical diagnostic equipment, OFFICE terminal, monitoring, security systems, important household appliances.



Applicable industry:



 telecom, finance, government, health care, education, manufacturing, postal logistics, transportation, commercial/retail.





Product picture:

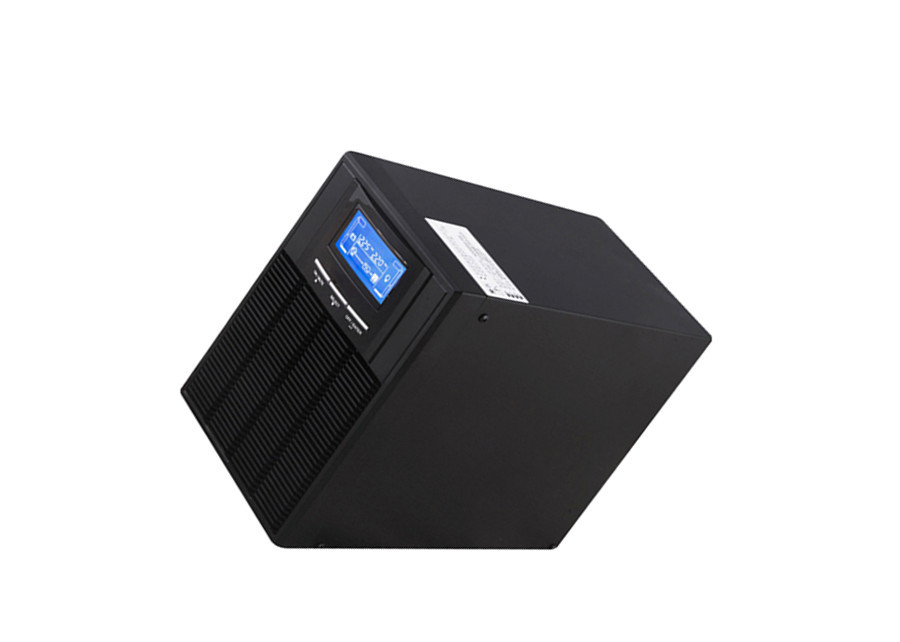

High-frequency Single Phase UPS Uninterruptible Power Supply Battery 20k 3KVA / 2.4KW 0
