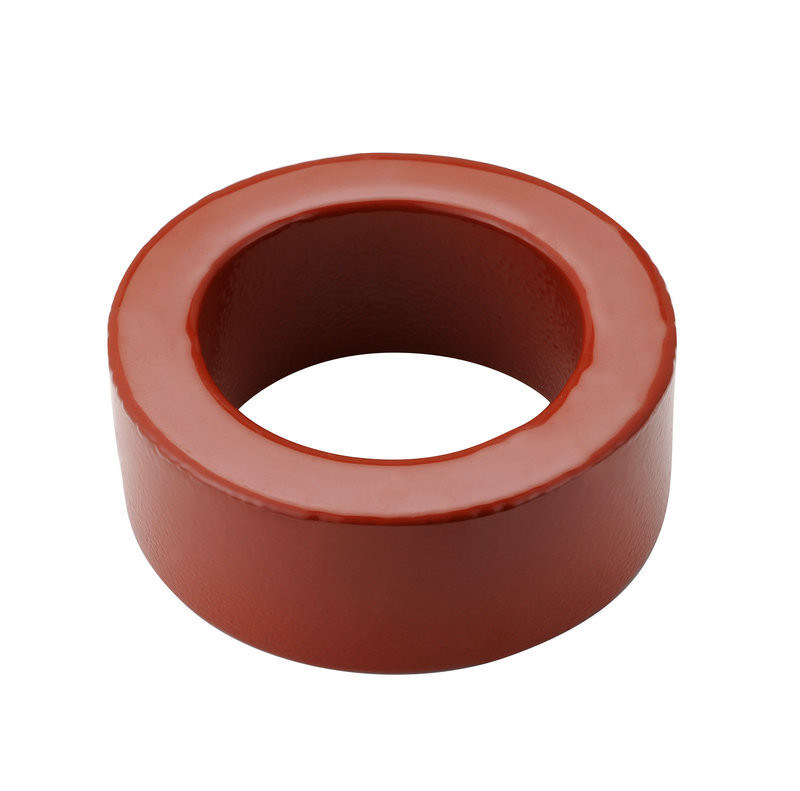

Saturable Nanocrystalline Transformer Core For Communication Power Supply

Saturable Nanocrystalline Transformer Core For Communication Power Supply

  • Saturable Nanocrystalline Transformer Core For Communication Power Supply
Saturable Nanocrystalline Transformer Core For Communication Power Supply
Product Details:
Place of Origin: Guangzhou, China (Mainland)
Brand Name: QIDA
Certification: ISO9001
Payment & Shipping Terms:
Minimum Order Quantity: 5000 Piece/Pieces
Price: Get Latest Price
Packaging Details: Carton
Delivery Time: 30 Days
Payment Terms: T/T
Contact Now
Detailed Product Description
High Light:

amorphous metal cores

,

transformer core

Saturable Nanocrystalline Transformer Core For Communication Power Supply

Quick details


Nanocrystalline Core


High saturation flux density

Excellent thermal stability

communication power supplies


Characteristics

•  High saturation flux density
•  High and linear permeability
•  Excellent frequency dependence of impedance
•  Large adjustable range for permeability
•  Outstanding performance at unbalanced current
•  Excellent thermal stability

Applications

 • switched mode power supplies
 • uninterrupted power supplies
 • communication power supplies
 • inverters
 • frequency converters
 • household electrical appliances



Item No.

Specification

Package

Size(mm)

Ac(cm2)

Le(cm)

AL@10kHz,0.3v(μH)

(mm)

External
diameter

Internal
diameter

Highth

Nomal

NT100605E

9.8×6.5×4.5

epoxy

10.9

5.9

5.5

0.06

2.56

20

NT120803P

12×8×3

case

14.8

6.4

5.5

0.04

3.22

12

NT120804P

12×8×4.5

case

13.5

6.5

6.5

0.07

3.14

20

NT201208P

20×12×8

case

21.8

10.6

10

0.24

5.02

45

NT201210P

20×12×10

case

21.8

10.6

12.1

0.30

5.02

55

NT251608E

25×16×8

epoxy

26

15.2

8.9

0.27

6.44

40

NT261610P

26×16×10

case

27.5

13.9

12.5

0.38

6.59

53

NT322010P

32×20×10

case

34.2

17.8

12.5

0.46

8.16

50

NT402510P

40×25×10

case

42.5

22.5

13

0.57

10.21

53

NT403215P

40×32×15

case

44.3

29.2

17.8

0.46

11.30

37

NT403215E

40×32×15

epoxy

42.2

31

17.6

0.46

11.30

30

NT644020P

64×40×20

case

67

37

24

1.82

16.33

100

NT644020E

64×40×20

epoxy

65.8

38.8

22.4

1.82

16.33

85

NT805025P

80×50×25

case

84

46.8

29.2

2.85

20.41

130

NT805025E

80×50×25

epoxy

83

48

27

2.85

20.41

115

NT1008020E

100×80×20

epoxy

105

76

25

1.52

28.26

48

NT1259025E

125×90×25

case

130

85

30

3.33

33.76

85

NT16013025E

160×130×25

epoxy

165

125

29

2.85

45.53

50
