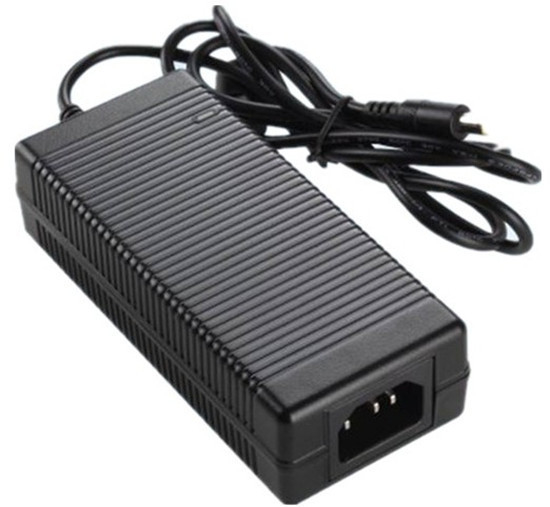

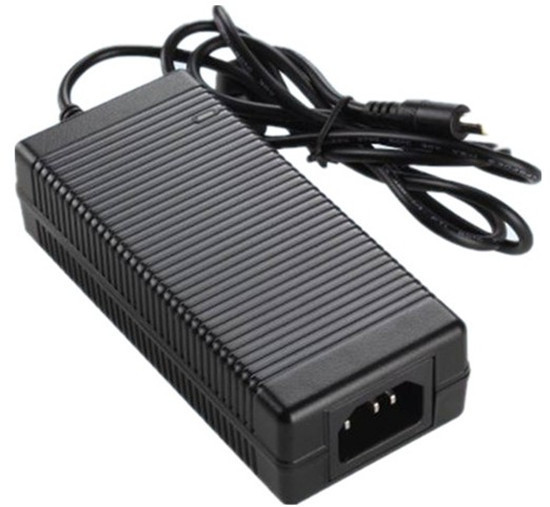

60 Watt ITX Computer AC Adapter , Laptop Desktop Computer Power Supply

60 Watt ITX Computer AC Adapter , Laptop Desktop Computer Power Supply

  • 60 Watt ITX Computer AC Adapter , Laptop Desktop Computer Power Supply
60 Watt ITX Computer AC Adapter , Laptop Desktop Computer Power Supply
Product Details:
Place of Origin: Guangdong, China (Mainland)
Brand Name: e.mini
Certification: CE/RoHS/FCC/PSE/CCC/TUV-CB/KC
Model Number: LR120050 (12V 5A) CCC
Output Type: DC
Usage: ITX Power, DC-ITX Power Adapter, LCD/LED Display, Laptop
Connection: Desktop
is_customized: Yes
Size: 125*55.5*33mm
Output Power: 60W
Output Voltage: 12VDC
Output Max. Load: 5A
Standby Power: 0.5W Max
Input Frequency Range: 47Hz to 63Hz
Input Voltage Range: 90-280Vac
Input Current: 1.6A Max
Service: OEM, ODM, After-sale
Payment & Shipping Terms:
Minimum Order Quantity: 20 Pieces
Packaging Details: Work Bin and Handle Box
Delivery Time: Within 2-7 working days after getting deposit
Payment Terms: T/T, Western Union, Paypal, Credit Card
Supply Ability: 25000 Pieces per Month
Contact Now
Detailed Product Description
High Light:

computer charger adapter

,

computer power adapter

60 Watt ITX Computer AC Adapter , Laptop Desktop Computer Power Supply









Competitive Advantages:

1. Professional Mini ITX Case Manufacturer

2. Overcurrent protection, Overvoltage protection, Overheat protection etc.

3. Multi-purpose products ( ITX Power, DC-ITX Power Adapter, LCD, LED Display Adapter and Laptop Adapter)

4. OEM/ODM Service is available



Quick Look Specification: (For more details, please see below)

Model: LR120050 (12V 5A)
Type: ITX Power, DC-ITX Power Adapter, LCD, LED Display Adapter and Laptop Adapter
Parameter:

1, Standard round mouth output interface: 2.5mm inner diameters, 5.5mm outer

diameter; 12V output voltage, 60W output power
2, Input voltage: 90-260Vac
3,Features: overcurrent protection, overvoltage protection and overheat protection

etc.
4, Weight: 0.23KG



Why Realan:
We are a very professional manufacturer for mini computer cases and power supplies, with the rich experience for over 10 years of developing and producing pc cases. Determination achieves quality, Realan is always keeping the production philosophy that doing by heart, win to win, providing the higher products value cooperation. And our products have been exported to East Asia, Southeast Asia, Middle East, North America, South America, Europe, Africa, Australia and other countries.
Please don't hesitate to contact us if you have any questions or concerns before or after your purchase. We are committed to your 100% satisfaction.



Detailed Specification:

1. DESCRIPTION:

The purpose of the document is to specify the functional requirements

of a 60W switching power supply.



2. INPUT CHARACTERISTICS:

2.1Input Voltage:

Rated Voltage:100~240Vac

Variation Range:90-280Vac

2.2Input Frequency:

Rated Frequency: 50/60Hz.

Variation Frequency:47-63Hz

2.3Input Current:

1.6Amps max At any input voltage and rated, DC output rated load.

2.4 Inrush Current:

120 Amps Max. Cold start at 240Vac input, with rated load and 25 degree ambient.

2.5 Ac Leakage Current:

0.25mA Max.At240Vac input.



3. OUTPUT CHARACTERISTICS:

3.1/Power output



Voltage



Min. Load



Rated. Load



Stand by power



Output power

12Vdc 0.01A 5.0A 0.5W Max 60W

3.2Combined Load/Line Regulation



Voltage



Min. Load



Rated. Load



Line Regulation



Load Regulation

12Vdc 0.01A 5.0A ±1% ±5%

3.3Ripple and Noise:

Under nominal voltage and nominal load,the ripple and noise are as follows when measure with Max.Bandwidth

of 20MHz and Parallel 47uF/0.1uF,crossed connected at testing point.



Voltage Ripple and Noise(Max.)

+12Vdc 120mV p-p

3.4 Turn on delay time:

3Second Max.at 115Vac input and output Max.load.

3.5Rise time:

40 mS Max.at 115Vac input and output Max load.

3.6Hold up time:

5 mS Min.at 115Vac input and output Max.Load.

3.7Efficiency:

75% Min, At 115/230Vac input voltage,1/4, 1/2, 3/4 and full load calculation average efficiency.



4. PROTECTION FUNCTION:

4.1Short circuit test:

The power supply will be auto recovered when short circuit faults remove.

4.2Over current Protection:

The power supply will be auto recovered when over current faults remove.

4.3Over Voltage Protection:

The power supply will auto recovered when faults remove 120%~170%.



5. ENVIRONMENTAL REQUIREMET:

5.1 Operating Temperature:

0 degree to 40 degree, Full load, Normal operation.

5.2 Storage Temperature:-20 degree to 80 degree

With package

5.3Relative Humidity:

5%(0 degree)~90%(40 degree)RH,72Hrs,Full load, Normal operating.

5.4 Vibration:

Operating: IEC 721-3-3 3M3

5~9Hz,A=1.5mm

(9~200Hz,Acceleration 5m/S2)

2. Transportation:

IEC 721-3-2 2M2

5-9Hz,A=3.5mm

9~200Hz,Acceleration=5m/S2

200~500Hz,Acceleration=15m/S2

3. Axes,10 cycles per axis.

No permanent damage may occur during testing.

The SAMPLE has to restore to its original situation after power off/on..

5.5 Dropping Packed:

1M for wallmount type and 760mm for desktop type as above described.

The horizontal surface consists of hardwood at least 13mm thick, mounted on two layers of plywood

each 19mm to 20mm thick,all supported on a concrete or equivalent non-resilient floor.



6. SAFETY REQUIREMENT:

6.1 TUV/GS-(EN60950-1),CCC-(GB4943) AS/NZS: 60950-1, UL/CUL-(UL60950-1)

Safety: accord with TUV/GS-(EN60950-1),CCC-(GB4943) AS/NZS: 60950-1, UL/CUL-(UL60950-1)

6.2 DIELECTRIC STRENGTH Hi-Pot:

Primary to secondary:1800Vac10mA/3S for type test.

6.3 Iusulation resistance:

Primary to secondary:10MΩ min at 500V DC.

6.4 EMI STANDARD

Meets the Limits of

<1>.Fcc part15 class B rules

<2>.EN55022 class B rules

<3>.GB9254-1998,GB17625.1-2003
