| Place of Origin: | Shenzhen,China |
| Brand Name: | Sun Son |
| Certification: | CE, ISO |
| Model Number: | SK673A |
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | USD500~900per unit |
| Packaging Details: | Film wrap, Foam, Wood Case |
| Delivery Time: | 25-35 days upon payment |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000units/month |
| Color: | Optional | Usage Environment:: | Indoor Or Outdoor |
|---|---|---|---|
| Enclosure: | Cold Roated Steel | Application: | Ads Display; Internet Access,photo Portrait |
| Brand Name: | SunSon | Certification: | CE/ISO |
| Internet: | 3G/WIFI/LAN Optional | Delivery Detail: | Samples Need About 20 Working Days After Receiving The Payment. |
| High Light: | Tabletop Kiosk,Donation Kiosk |
||

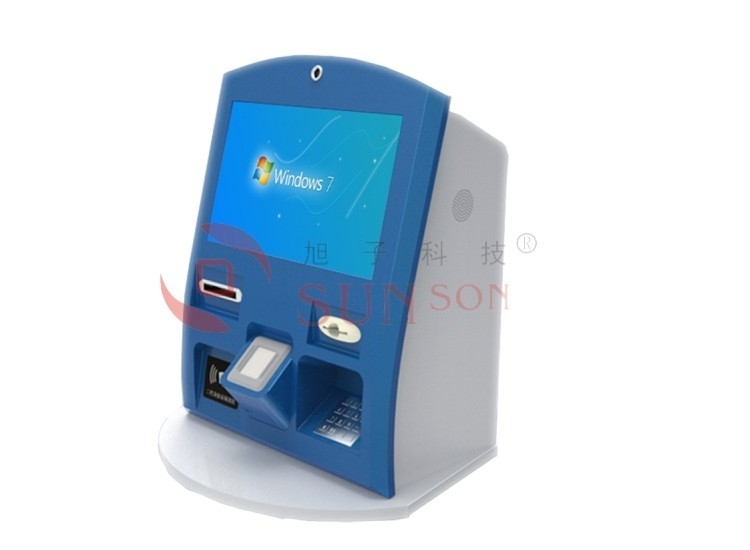

Touch Screen Bank Card Mobile Payment Desktop Kiosk Manufacturers
Description:
Desktop touchscreen internet kiosk, interactive internet kiosk
* Desktop internet kiosk with metal keyboard
* Touch screen internet kiosk with stainless pipes at sides for decoration
* Self-service internet kiosk can be settled in public lobbies or airport...
* Camera and proximity switch could be optional accessories of this model internet kiosk
* Hi-Fi speakers are designed visible for this model internet kiosk
* The screen size of internet kiosk: 15Inch 17Inch, 19Inch, 20Inch 22Inch
* Robust steel cabinet with Special metallic paint internet kiosk
* internet kiosk Computer(optional)
Specifications
High quality Touch Screen
Touchscreen size:15Inch 17Inch 19Inch 20Inch
SAW, Resistive, IR, or Capacitive touch screens for your different environments and applications
Grade A LCD Monitor
Aspect Ratio: 4: 3 Resolution: 1280 x 1024
Brightness: 300cd/m2 Contrast Ratio: 2000: 1
Powerful Computer
Intel Atom 330 1.6G dual core processor , TCP/IP protocol, 2GB RAM DDR2, 320GB WD HD, Multi-media system:amplifier; stereo Loudspeaker; magnetic-proof,net card, sound card integrated,display card,with WiFi
Operation system: Windows or Linux
Optional Accessories
1. Bluetooth connection .
2. Barcode reader:1D or 2D barcode reader
3. Fingerprint scanner
4. Printer:Epson 80MM thermal printer with auto cutter or HP A4 size laser printer.
5. Card reader: IC card reader/magnetic card reader/rfid card reader ,etc.
6. Metal keybaord with trackball,stainless steel,waterproof,encrypted
7. Cash acceptor:InchCashcodeInch branded,with RS232 interface, DC12V power,accepts multi-currency
8. Coin acceptor:accepts mul-currency coins
9. Camera
We can print your own logo on the kiosk
Color we can paint your own color,free of charge
Cabinet
Steel cabinet sprayed metallic paint or plastic-spray,2.0MM or 3.0MM steel,moisture-proof,anti-rust,anti-acid,anti-dust
Packing
foam ,carton,wooden case
OEM ODM
We can customize your own designs.
Please feel free to contact us for further information
How could I get an quotation of the desktop kiosk that I need?
1. the main application
2 Outdoor or indoor used
3. Quantity of sample order and whole project
4 Special requriement
Application
Specification
|
Components |
Details |
||
|
PC system |
Industrial Board |
Seavo/ Gigabyte/Advantech AIMB 562 |
|
|
CPU |
Dual core E5700/G2020, 2.8ghz; Intel Dual Core I3/I5/I7 |
||
|
RAM |
2GB /4 GB / 8GB |
||
|
HDD |
500G |
||
|
Interface |
6 RS-232 Ports;1 LTP;6 USB Ports,1 10/100M Net Port ;Integrated Net Card, Sound Card |
||
|
PC Power Supply |
HUNTKEY/Great Wall |
||
|
AUO LCD monitor |
Screen Size |
17 inch/19inch ( optional from 8inch to 65inch) |
|
|
Brightness |
300cd/m2 |
||
|
angle |
horizontal 100°above;Vertical 80°above |
||
|
Contrast |
1000:1 |
||
|
Backlight tube life |
more than 40,000hours |
||
|
Max. resolution |
1280×1024 |
||
|
Touch screen |
Screen Size |
17/19 inch Diagonal ( optional from 8inch to 65inch) |
|
|
Resolution |
4096x4096 |
||
|
High Transparence, high precision and durability,Orientation precision< 2mm(0.080 inch);pure tempered glass;Single-point touch Life expectancy more 50,000,000 times |
|||
|
Bank/Credit/Card Reader |
Interface |
RS232.
|
|
|
Card Type |
Support Magcard, IC Card, RF Card, Mifare S50,S70,UL Card |
||
|
Power Voltage |
DC 24V±5% |
||
|
Card Entry method |
Magnetic signal, Optoelectronic signal and rear card signal |
||
|
Contactless card reader |
NFC card reader | world’s first NFC reader compliant with the CCID specification. | |
|
Encrypted Pinpad |
Keylift~span |
2,000,000 cycles |
|
|
Key force |
2~3N |
||
|
Key trip |
>2.5mm |
||
|
Protection level |
ip65 |
||
|
Receipt thermal printer |
Autocutter |
included |
|
|
Technology |
Thermal printing |
||
|
Paper width |
80mm/60mm optional |
||
|
Printing speed |
150mm/s |
||
|
Data buffer |
4KB |
||
|
Interface |
RS232 ,USB |
||
|
Accessories |
Wire-lan port, USB ports, speakers, fans, cables, screws, etc. |
||
|
Operation System |
Windows 7 or Windows XP operation system without license |
||
|
KIOSK Cabinet |
Durable steel frame, Slim and smart design; Easy to install and operate; Moisture proof,Antirust,Anti-acid,Anti-dust,Static free, have color and LOGO upon request. |
||
|
Packing |
Security Packing method with bubble foam and wooden case |
||
