| Place of Origin: | China |
| Brand Name: | Glux |
| Certification: | CE ROSH UL |
| Model Number: | MOtn |
| Minimum Order Quantity: | 10sqm |
|---|---|
| Price: | Depends on customer specifications |
| Packaging Details: | Fly case or cartons |
| Delivery Time: | 15-45 days (Depending on quantity) |
| Payment Terms: | FOB,T/T(50% advance 50% before shipment) |
| Supply Ability: | 150sqm per day |
| High Light: | high definition led display,led video display board |
||
|---|---|---|---|
Transparent Stage LED Screens Use For Opening Ceremony
Quick Detail:
1. Name:MOtn
2. Module Size:1000*500*40mm
3. Brightness: 1500cd/m2
4. LED Type: SMD 3-in-1
5. LED Chip:Epistar
6. Protection: Indoor
7. Power Supply: Sigular Power Supply
Description :
1. Aerodynamic Design:wind resistant-ideal for large scale setups
2. Carbon Fiber Materials for super thin style with angled edge structure
3. Vertical Solution:Hanging hinges&vertical lining technique ideal for large backdrops
4. Optional Backplates for non-transparancy.
5. Grayscale processing&color calibration techniques ensures amazing graphic quality
6. Easy ,quick and flexible installation for fast assembly and disassembly
7. Invisible cable mangagement.
Applicantion:
Glux MOtn series suits for stage,supermarket,studio,bar and so on.
Specifications:
|
Glux LED Display MOtn Series |
Motn10 |
Motn15 |
Moth20 |
|
Pixel Pitch(mm) |
10.4 |
15.6 |
20.8 |
|
Pixel Density(dots/m2) |
9216 |
4096 |
2304 |
|
Brightness(cd/m2) |
1500 |
1500 |
1500 |
|
Color Temperature(after calibration)K |
6500 |
6500 |
6500 |
|
Module Size(W*H*D)(mm) |
1000*500*40 |
1000*500*40 |
1000*500*40 |
|
Weight(kg/Panel) |
4.5 |
4.5 |
4.5 |
|
Weight(kg/m2) |
9 |
9 |
9 |
|
LED Type |
SMD 3in1 |
SMD 3in1 |
SMD 3in1 |
|
LED Chip |
Epistar |
Epistar |
Epistar |
|
Horizontal/Vertical Viewing Angle(º) |
H160º /V160º |
H160º /V160º |
H160º /V160º |
|
Recommended Viewing Distance(m) |
10m-200m |
10m-200m |
10m-200m |
|
Contrast |
1200:1 |
1200:1 |
1200:1 |
|
Refresh Rate(Hz) |
1500Hz |
4500Hz |
8000Hz |
|
Grey Scale(bit) |
R’G’B’16bit |
R’G’B’16bit |
R’G’B’16bit |
|
Frame Rate(Hz) |
50/60Hz |
50/60Hz |
50/60Hz |
|
Life Time(H) |
≥50000Hours |
≥50000Hours |
≥50000Hours |
|
Protection |
Indoor |
Indoor |
Indoor |
|
Power Supply |
Singular Power Supply |
Singular Power Supply |
Singular Power Supply |
|
Max Power Consumption(W/M2) |
300W |
300W |
300W |
|
Avr Power Consumption (W/M2) |
100W |
100W |
100W |
|
Working Temperature |
-25-60℃ |
-25-60℃ |
-25-60℃ |
|
Working Humidity |
10%-95% |
10%-95% |
10%-95% |
|
Driving Method |
1/6 |
1/2 |
Static |
|
Driving Chip |
MBI5041 |
MBI5041 |
MBI5041 |
|
Cabinet Material |
Carbon fiber |
Carbon fiber |
Carbon fiber |
|
Control Input |
DVI/HDMI/HDSDI |
DVI/HDMI/HDSDI |
DVI/HDMI/HDSDI |
|
Max Hanging(Vertical) |
1400kg |
1400kg |
1400kg |
Introduction

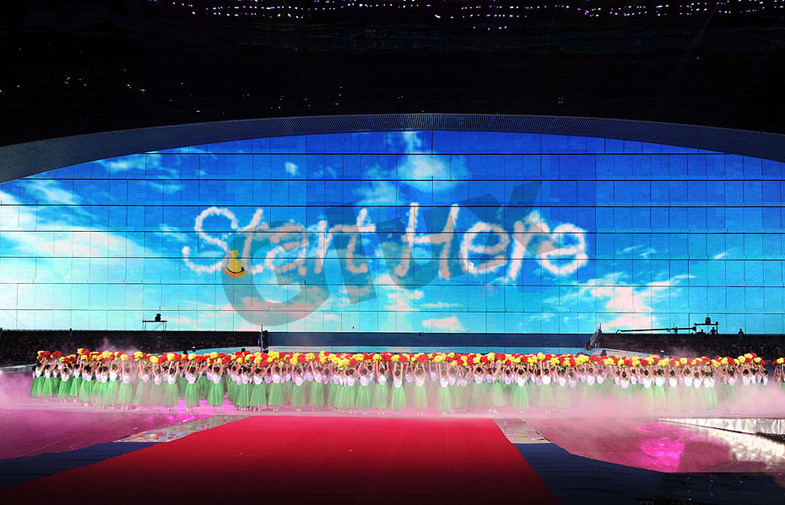

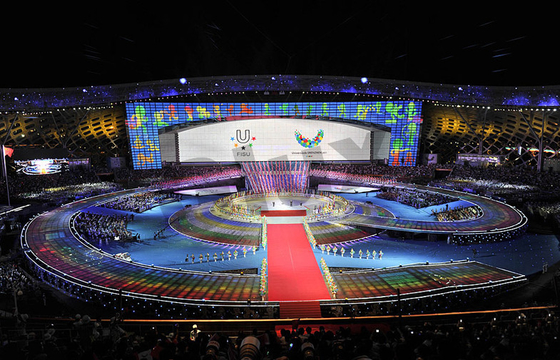

2011 saw Glux fantastic success in putting on an amazing visual display for the opening Ceremony of the 26th Summer Universiade in Shenzhen.For this event Glux constructed a massive LED display commonly known in the press as "Gate to the world".This amazing feat of engineering was put together through a combination of over 6000 square meters of Glux's famous Motn10, a kind of transparent LED pannel that is ideal both as a large back drop screen as well as being high resolution enough to be the wall was pulled apart half way through the show , allowing the athletes from over 120 countries to enter the center stage for the"March of The Nations"
