| Place of Origin: | Shenzhen China |
| Brand Name: | DongDaHua |
| Certification: | CE & ROSH |
| Model Number: | F-100-24 |
| Minimum Order Quantity: | 50pcs |
|---|---|
| Price: | Factory Price |
| Packaging Details: | As for your requirement |
| Delivery Time: | As per your order quantity |
| Payment Terms: | T/T & L/C |
| Supply Ability: | 4000 Pieces/Day |
| Product Name: | Waterproof LED Driver | Current: | 4.5A |
|---|---|---|---|
| IP: | IP68 | Safety Standards: | EN55022 Class A |
| Output Power: | 100W | Output Voltage: | 24v |
| High Light: | LED Light Power Supply,12v dc LED driver |
||

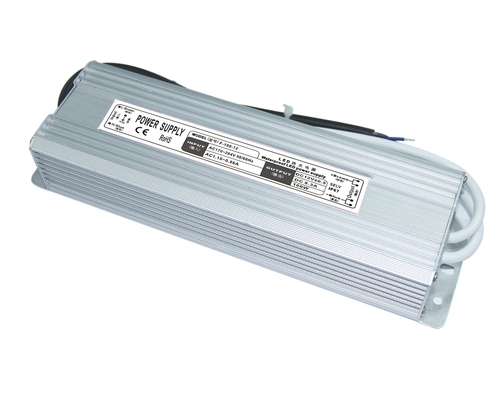

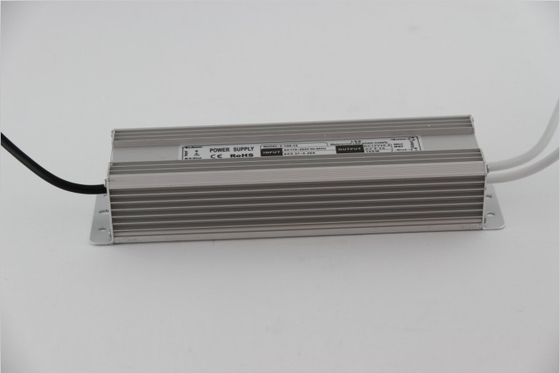

Low Ripple Waterproof LED Driver 100W 24v 4.5a IP68 EN55022 Class A
Competitive Advantage:
•IP67 protection grade
•100% load test, built-in EMI filters
•Full range of input voltage
•output voltage accurate and stable
•Output over-voltage, over-current and short-circuit protection
•Output low ripple and noise
•Two year warranty
•Average working no trouble ＞50, 000 hours
Application:
It’s suitable for an extremely wide range of applications, including:
LED, CCTV camera;
Communications and security products;
LED Strip Lighting/ LED lamp / LED Light, LED / LCD display.
Specifications:
|
Product Electric Parameters |
|||
|
Input specification |
Input voltage |
AC170V---264V |
|
|
Input frequency |
47-63Hz |
||
|
Input surge |
20A@120VAC 40A@230VAC |
||
|
Output specification |
Start-up time |
≦1S (230V Input, Io=100%) |
|
|
keep time |
≧20mS (230V Input, Io=100%) |
||
|
Voltage regulation |
(full)≦0.5% |
||
|
Protection function |
Overload protection |
105% - 150% rated power, automatic recovery |
|
|
Over-voltage protection |
105% - 150% of the rated voltage |
||
|
Insulation intensity |
Input---output |
1500VAC/1min |
|
|
Input--ground |
1500VAC/1min |
||
|
Output---ground |
500VAC/1min |
||
|
Safety standards |
According with GB4943, EN60950-1 ; EPA3050B:1996; EN1122:2001 ; EPA3052:1996; EPA3060A; EPA7196; EPA3540C;EPA8270C standards. |
||
|
E M C standards |
According with EN55022 class A EN61347-2-13:2008 standards |
||
|
Environmental |
working temperature |
- 20 ° ~ 60 ° c / 20% ~ 90% RH (no frost) |
|
|
Storage temperature |
- 40 ° ~ 85 ° c / 10% ~ 95% RH (no frost) |
||
|
height above sea level |
≦2000M |
||
|
Structure |
Size (mm) |
230(L)*72(W)*45(H) |
|
|
Cooling method |
Cooling method |
Natural cooling air convection |
|
|
Weight |
1.2KG/Pcs |
||
