| Place of Origin: | Taiwan |
| Brand Name: | CH |
| Certification: | UL/CUL, TUV/T-Mark, CB, CE, FCC |
| Model Number: | SPU150 series |
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Delivery Time: | 35 days |
| High Light: | switching power supply,power supply,power adapter |
||
|---|---|---|---|

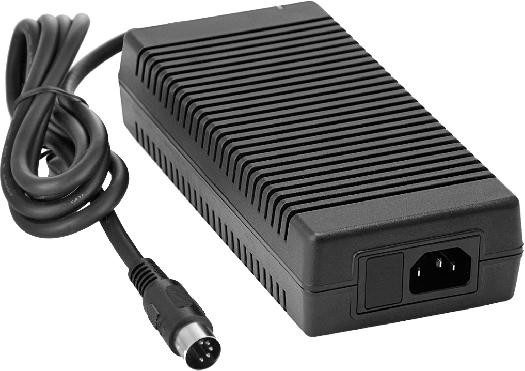

150 watts desktop type AC/DC switching mode power supply.
Single output. Single output voltage available at 24VDC.
All supplies are UL 94V-1 min compliant.
All models meet FCC Part-15 class B & CISPR-22 EN55022 class B emission limits and are designed to comply with UL/CUL(UL 60950-1), ITS/T-Mark(EN 60950-1) and new CE requirements.
All units are 100% burned in and tested.
Wide input voltage 90 to 260 VAC, 47 to 63 Hz.
Input surge current, over voltage and over load protection.
Over Voltage Protection.
Active Power Factor Correction.
Energy Star 2.0, Efficiency Level V.
ON/OFF SWITCH (Optional).
2 years warranty.
Specification:
Input Voltage:90-260 VAC
Input Frequency: 47-63 Hz
Input Current: 1.49A at 115VAC/0.75A at 230VAC
Efficiency: 88 %
Hold-Up Time: 20 mS min
Line Regulation: 0.5%
Load Regulation: 5%
Ripple & Noise: 1% p-p max
Safety:UL/CUL, TUV/T-Mark, CB, CE, FCC
Model List:
SPU150-108: 24VDC/6.25A 150W maximum
